Texas Instruments INA180A3IDBVR

Part No.:: INA180A3IDBVR

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: INA180A3IDBVR.pdf

Description:: IC CURR SENSE 1 CIRCUIT SOT23-5

In Stock:: 12581

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA180A3IDBVR Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
Current Sense
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
350 kHz
Current-InputBias:
80 µA
Voltage-InputOffset:
100 µV
Current-Supply:
260µA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

INA180A3IDBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA180A3IDBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA180A3IDBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA180A3IDBVR information

Views：

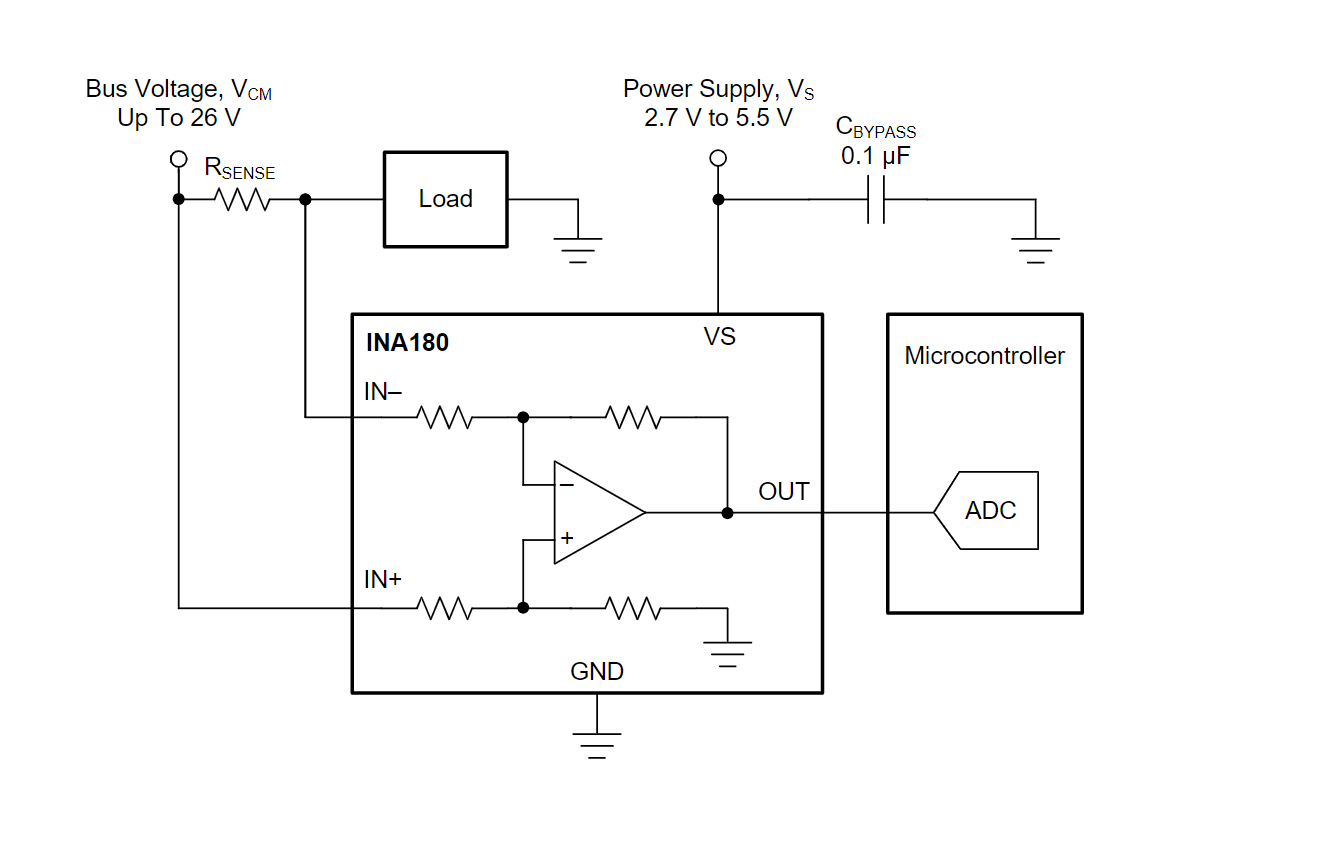

INA180A3IDBVR Typical application Circuitry

INA180A3IDBVR

The INA180A3IDBVR belongs to the INA180 family, a collection of voltage-output, current-sense amplifiers. These devices are widely employed across various applications, including overcurrent detection, power monitoring, and similar instances where precise current sensing is pivotal. The INA180A3IDBVR, in particular, is distinguished by its low-power consumption and high accuracy, coupled with a simplified layout that eases the task of circuit integration.

1. Power Supply:

- V+ (Pin 5): This pin of the INA180A3IDBVR is for the supply voltage. It typically requires a stable DC voltage source compatible with the device's specified operating voltage range.

- GND (Pin 2): The ground reference point for the entire circuit, this pin should be connected to the system ground.

2. Input Sensing:

- IN+ (Pin 3) and IN- (Pin 4): These pins are critical for the functionality of the INA180A3IDBVR, serving as the positive and negative inputs for the current-sensing differential amplifier. The voltage difference between these pins is what the device amplifies. A shunt resistor is usually placed in the path of the current being measured, and these pins are connected across this resistor.

3. Output:

- OUT (Pin 1): The INA180A3IDBVR's output pin, this delivers the amplified voltage signal to the next stage of the circuit, which is typically connected to an ADC input of a microcontroller or directly involved in a feedback loop.

4. Filtering Nuances: It's often beneficial to connect a bypass capacitor between the V+ and GND pins to decouple the power supply, thereby enhancing the INA180A3IDBVR's noise performance.

5. Shunt Resistor Selection: The choice of the shunt resistor is crucial; it must possess a low enough value to minimize power loss but sufficient to produce a measurable voltage drop. This resistor is integral to the current sensing that the INA180A3IDBVR will perform.

6. Protection Paradigms: In scenarios where over-voltage conditions may occur, implementing input clamping or protection diodes helps preserve the integrity of the INA180A3IDBVR.

As we unravel the complexities of the INA180A3IDBVR, it becomes evident that this intricate device lies at the heart of current-sensing solutions, offering designers a pathway to implement robust, precise, and energy-efficient features within electronic applications. A more profound comprehension awaits those who delve into the detailed datasheet, exposing the subtleties that enable the INA180A3IDBVR to function within an optimized design paradigm.
