Texas Instruments INA159AIDGKRG4

Part No.:: INA159AIDGKRG4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: INA159AIDGKRG4.pdf

Description:: IC OPAMP DIFF 1 CIRCUIT 8VSSOP

In Stock:: 2861

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA159AIDGKRG4 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
Differential
NumberofCircuits:
1
OutputType:
-
SlewRate:
15V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1.5 MHz
Current-InputBias:
-
Voltage-InputOffset:
100 µV
Current-Supply:
1.1mA
Current-Output/Channel:
60 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

INA159AIDGKRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA159AIDGKRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA159AIDGKRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA159AIDGKRG4 information

Views：

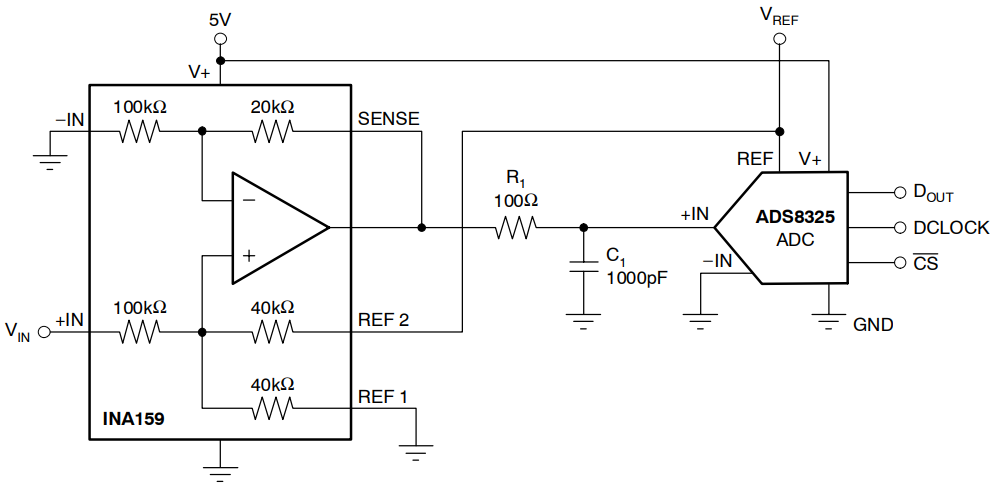

INA159AIDGKRG4 Typical application Circuitry

INA159AIDGKRG4

The INA159AIDGKRG4 is part of Texas Instruments' INA159 series, which is comprised of high-speed, voltage-output, precision difference amplifiers. This series is designed to amplify small differential voltages in the presence of large common-mode voltages, making it ideal for applications such as current sensing in power management systems, motor control circuits, and battery monitoring systems in both automotive and industrial settings.

1. INA159 Series Characteristics (High Precision and Speed): The INA159AIDGKRG4 is engineered for precision amplification of differential signals, featuring a wide common-mode range and a high slew rate. This enables the device to provide accurate and fast amplification, critical in applications where signal integrity and response time are crucial.

2. Circuit Integration Approach (Differential Signal Amplification): The INA159AIDGKRG4 is typically integrated into circuits that require the amplification of differential signals. It includes eight pins: V+ (positive power supply), V− (negative power supply or ground), VOUT (output voltage), VREF (reference voltage input), and the differential input pins IN+ (non-inverting input) and IN− (inverting input).

3. Power Supply Configuration (Ensuring Stability): For stable operation, the V+ pin should be connected to a positive power supply, and the V− pin to a negative power supply or ground, depending on the specific requirements of the application. This configuration allows the INA159AIDGKRG4 to accurately process differential signals with high common-mode voltages.

4. Differential Input Connections (Signal Processing): The IN+ and IN− pins should be connected to the source of the differential signal that needs amplification. The INA159AIDGKRG4 amplifies the voltage difference between these pins while rejecting common-mode voltages, making it highly effective for applications like current sensing through shunt resistors.

5. Output and Reference Voltage Configuration (Output Adjustment): The amplified output voltage is available at the VOUT pin and is proportional to the difference between the IN+ and IN− voltages, adjusted by the device's gain. The VREF pin allows the setting of a reference voltage for the output, facilitating the level shifting of the output signal as required.

6. Device Packaging (Compact Design): The INA159AIDGKRG4 is offered in a compact MSOP-8 (DGK) package, suitable for space-constrained applications that demand precise differential signal amplification. This packaging ensures a minimal footprint while providing reliable and accurate signal processing capabilities.

Incorporating the INA159AIDGKRG4 into electronic designs demands careful attention to the differential input signals, stable power supply connections, and appropriate configuration of the output and reference voltages. By effectively managing these aspects and utilizing the device's capabilities for high-speed and precise signal amplification, designers can leverage the INA159AIDGKRG4 for accurate differential signal processing in a range of automotive and industrial applications, thereby enhancing overall system performance and reliability.
