Texas Instruments INA126UAG4

Part No.:: INA126UAG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: INA126UAG4.pdf

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 3166

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA126UAG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.4V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
200 kHz
Current-InputBias:
10 nA
Voltage-InputOffset:
150 µV
Current-Supply:
175µA
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

INA126UAG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA126UAG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA126UAG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA126UAG4 information

Views：

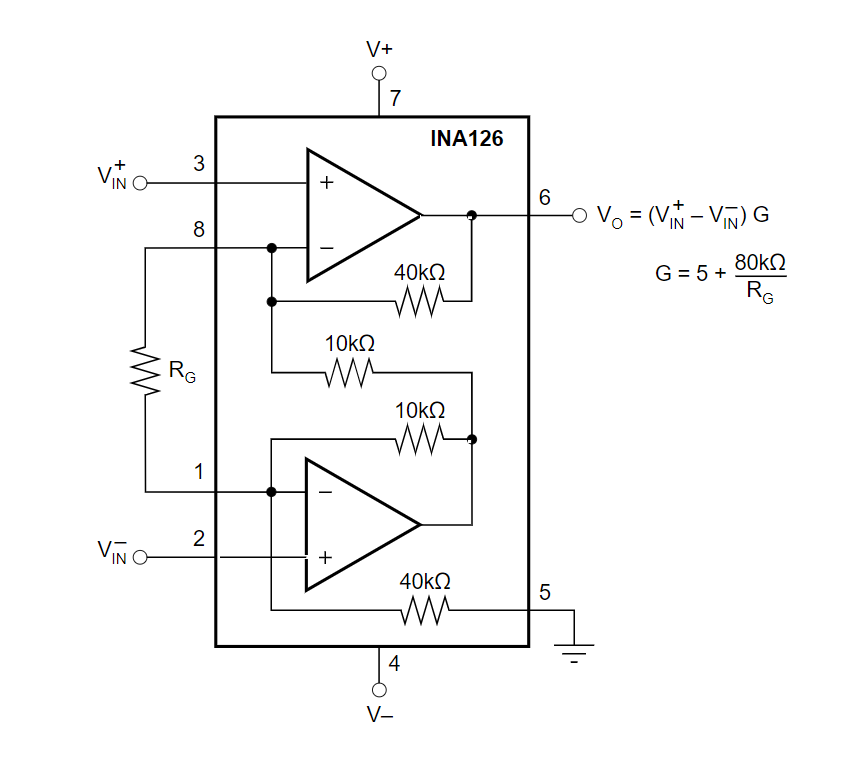

INA126UAG4 Typical application Circuitry

INA126UAG4

The INA126UAG4, manifesting as an instrumentation amplifier, is esteemed for its ability to accurately amplify differential signals. With its low offset voltage and wide power supply range, it seamlessly adapts to an array of applications, ensuring pristine signal amplification even in environments permeated with notable common-mode noise.

1. Power Supply Pin Management:

- V+ (Pin 7): Provide a positive supply voltage within the specified range, typically from +2.2V to +36V.

- V- (Pin 4): Correspondingly, navigate the negative power supply, ensuring optimal biasing for INA126UAG4 operation.

2. Input Affinity:

- IN+ (Pin 2): Respectfully entrust your non-inverting input signal to this pin, ensuring it mirrors the parameters of your desired differential signal.

- IN- (Pin 3): Simultaneously, the inverting input anticipates its signal, sculpting the differential pair that INA126UAG4 will meticulously amplify.

3. Output Manifestation:

- OUT (Pin 6): After gentle nurturing through the internal amplification mechanisms, your amplified signal will make its appearance here, ready to progress further through your circuit's veins.

4. Gain Configuration:

- RG (Pins 1 and 8): To tailor the INA126UAG4's amplification to your bespoke needs, connect a resistor (R_G) across these pins. The gain is then determined by: $ G = 1 + \frac{(50 kΩ)}{R_G} $.

5. Refined Grounding: Often, a reference pin (Ref, Pin 5) is available, where a voltage applied will set the output voltage when the differential input is zero, thus it's prudent to anchor it to a stable ground or mid-supply point for a single-supply operation.

6. Input Bias Mastery: Employing resistors to balance the impedance seen by both IN+ and IN- ensures that the INA126UAG4 performs optimally, minimizing offset artifacts.

7. Filter Integration: For applications sensitive to high-frequency noise, a capacitor across the RG pins will fashion a low-pass filter, confining the INA126UAG4 to amplify only the desired low-frequency signals.

With the INA126UAG4, we navigate through a realm where the precision of differential signal amplification becomes tangible, crafting an environment where noise becomes a distant echo, and pure, amplified signals reign supreme. By venturing deeper into its datasheet, designers can further refine their circuit designs, ensuring that every nuance of the INA126UAG4 is harnessed to sculpt flawless amplification pathways within their electronic realms.
