Texas Instruments INA122UA/2K5G4

Part No.:: INA122UA/2K5G4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: INA122UA/2K5G4.pdf

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 3322

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA122UA/2K5G4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.16V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
120 kHz
Current-InputBias:
10 nA
Voltage-InputOffset:
150 µV
Current-Supply:
60µA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
2.2 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

INA122UA/2K5G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA122UA/2K5G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA122UA/2K5G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA122UA/2K5G4 information

Views：

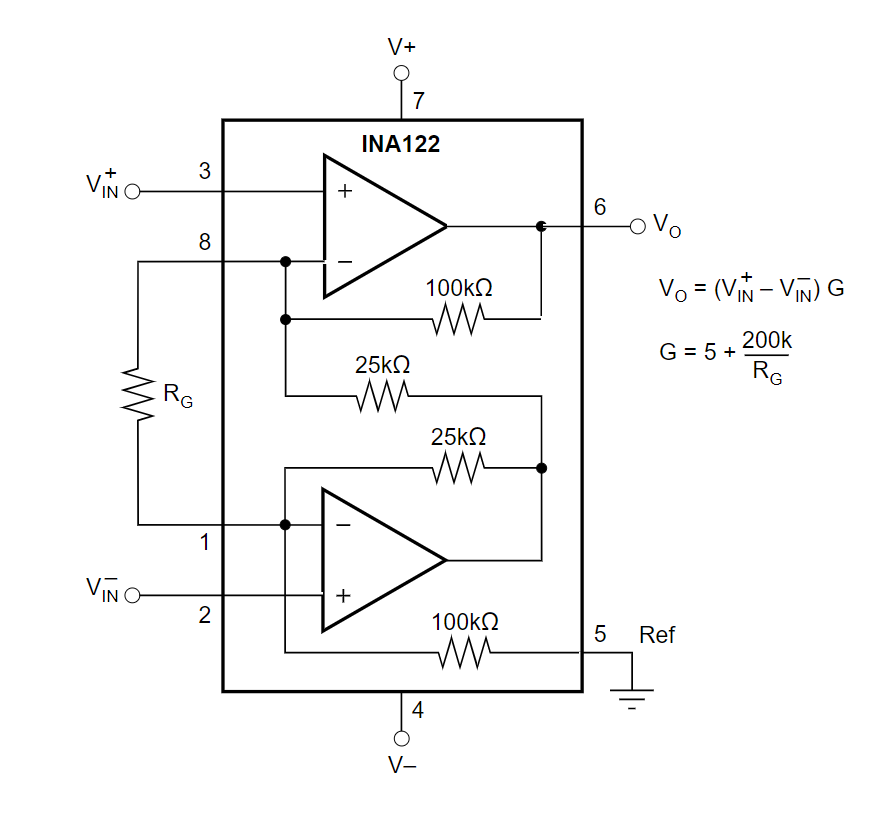

INA122UA/2K5G4 Typical application Circuitry

INA122UA/2K5G4

The INA122UA/2K5G4 is a low-power, single-supply instrumentation amplifier. Known for its minimalistic footprint and distinguished versatility, it's amply equipped to interface with sensors that demand high accuracy, minimal drift, and impeccable linearity, marking it as a quintessential component in many precision applications.

1. Power Supply and Grounding:

- +Vs (Pin 7) and -Vs (Pin 4): These are the positive and negative supply pins, respectively. They ensure the INA122UA/2K5G4 is sufficiently powered, delivering consistent performance.

- GND (often the midpoint between +Vs and -Vs): Ground reference for the amplifier. In single-supply operations, -Vs becomes the ground.

2. Input Dynamics:

- +IN (Pin 3) and -IN (Pin 2): These differential input pins are pivotal, designed to receive the input signals which need amplification. They are often connected to sensors or other signal sources.

3. Output Symphony:

- OUT (Pin 6): The amplified signal finds its exit through this pin, which is then commonly connected to an ADC, another amplifier stage, or directly to a monitoring system.

4. Gain Configuration:

- RG (Pins 1 and 8): The INA122UA/2K5G4's gain can be externally set by connecting a resistor (R_G) across these pins. The gain is dictated by the formula: Gain = 1 + (50kΩ / R_G). Removing the resistor gives a unit gain.

5. Low Offset: The INA122UA/2K5G4 boasts of an ultra-low offset voltage, making it a potent choice for precision applications.

6. Flexibility in Power: With its ability to operate on single (5V to 36V) or dual supplies (±2.5V to ±18V), it lends immense flexibility to the designer.

7. Decoupling Capacitors: Close to the +Vs and -Vs pins, connect capacitors to ensure noise immunity and stable operation of the INA122UA/2K5G4.

8. Input Protection: It's prudent to employ input protection resistors, especially if input overvoltage conditions are probable.

9. Load Capacitance: Directly driving capacitive loads may challenge stability. If necessary, a small series resistor with the output can rectify this.

In conclusion, the INA122UA/2K5G4 is a model of precision and adaptability in the world of instrumentation amplifiers. An authentic exploration of its datasheet will amplify one's depth of understanding, ensuring optimal circuit design tailored to the meticulous nuances of this device.
