Texas Instruments INA122U

Part No.:: INA122U

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: INA122U.pdf

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 2088

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA122U Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.16V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
120 kHz
Current-InputBias:
10 nA
Voltage-InputOffset:
100 µV
Current-Supply:
60µA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
2.2 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

INA122U this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA122U price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA122U to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA122U information

Views：

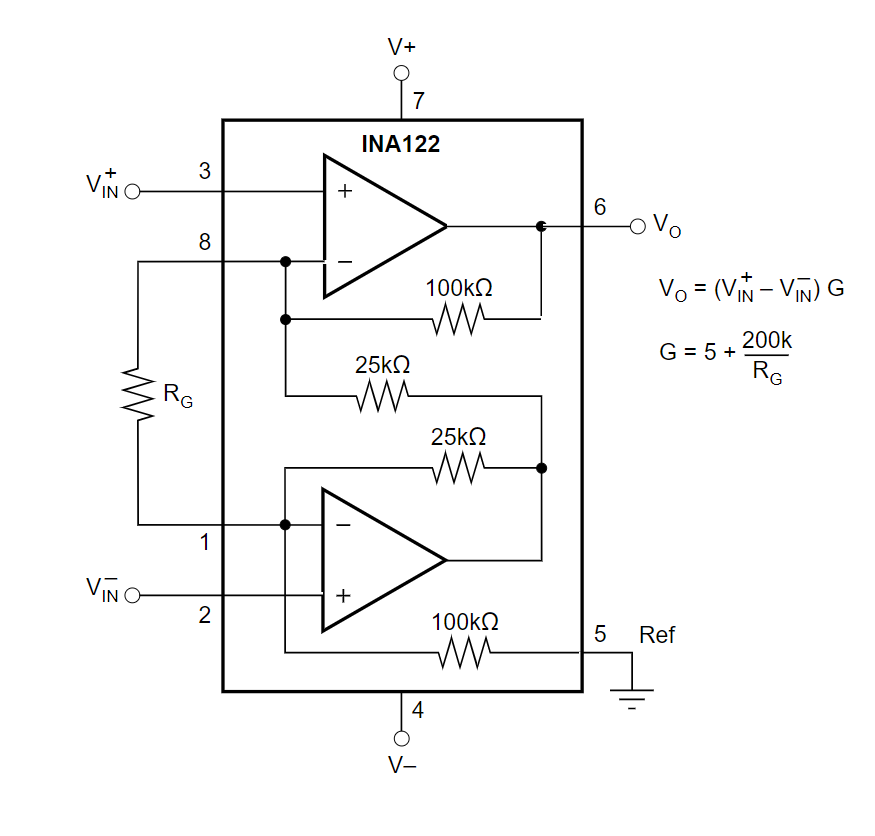

INA122U Typical application Circuitry

INA122U

Primarily, the INA122U is celebrated for its low power consumption, availing itself beneficially to battery-powered applications and portable devices. With its precision voltage amplification capability, the INA122U seamlessly amplifies differential input signals while rejecting common-mode noise, ensuring pristine signal integrity.

1. Vital Inputs:

- Inverting (IN-) and Non-Inverting (IN+) Inputs (Pin 2 and 3 respectively): These inputs are pivotal for interfacing the differential signal that is to be amplified by the INA122U.

2. Power Supply Pins:

- V+ and V- (Pin 7 and 4 respectively): These pins facilitate the power supply to the INA122U, with V+ generally receiving a positive voltage and V- connected to the circuit ground or a negative voltage supply as per design requisites.

3. Output Pin:

- OUT (Pin 6): The amplified signal materializes at this pin, which can then be routed to subsequent stages in the circuit, such as an ADC or a filter.

4. Gain Set:

- RG (Pin 1 and 8): Connecting a resistor (R_G) across these pins facilitates the tuning of the gain of the INA122U, using the formula: Gain = 1 + (100kΩ / R_G).

5. Supply Voltage: Ensuring that the supply voltages provided to V+ and V- of the INA122U are within the specifications outlined in the datasheet is paramount to prevent damage and ensure accurate operation.

6. Common-Mode Rejection: To maximize the common-mode rejection ratio (CMRR) of the INA122U, it is crucial to ensure that the resistance seen by the IN+ and IN- pins is closely matched.

7. Bypass Capacitors: Connecting a bypass capacitor close to the power supply pins of the INA122U helps in filtering out any noise from the power supply, thereby enhancing the precision of the amplifier.

8. Load Considerations: Attuning to the load resistance and capacitance connected to the OUT pin is critical to prevent oscillations and ensure stable operation of the INA122U.

To encapsulate, the INA122U elegantly fosters a convergence of low power, precision amplification, and noise rejection, thereby sculpting an invaluable niche in differential signal amplification applications. Rigorous exploration of its datasheet, accompanied by careful adherence to design guidelines, paves the way towards realizing circuits of impeccable accuracy and reliability. This detailed exploration intertwines the threads of critical knowledge, engraving the key aspects of the INA122U in the canvas of meticulous circuit design.
