Burr Brown INA105KU

Part No.:: INA105KU

Manufacturer:: Burr Brown

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: INA105KU.pdf

Description:: IC OPAMP DIFF 1 CIRCUIT 8SOIC

In Stock:: 3600

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA105KU Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk
Series:
-
ProductStatus:
Active
AmplifierType:
Differential
NumberofCircuits:
1
OutputType:
-
SlewRate:
3V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1 MHz
Current-InputBias:
-
Voltage-InputOffset:
50 µV
Current-Supply:
1.5mA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

INA105KU this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA105KU price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA105KU to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA105KU information

Views：

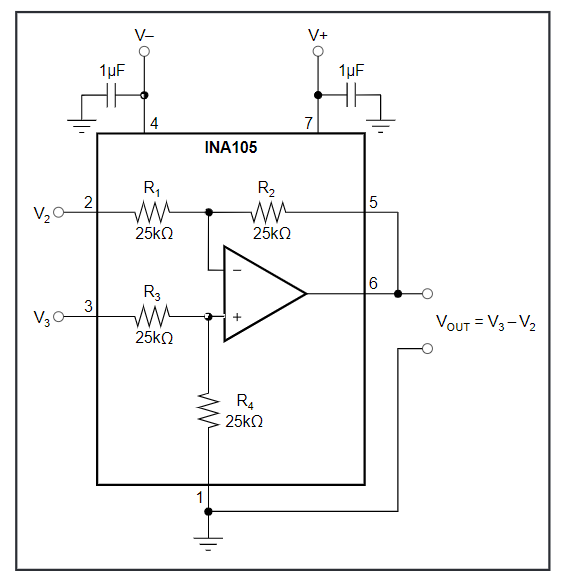

INA105KU Typical application Circuitry

INA105KU

The INA105KU is a precision unity-gain differential amplifier with very high common-mode input impedance. Here's a basic guide for connecting this component:

1. Supply Pins: The INA105KU has two supply pins, denoted as VS+ and VS-. The VS+ (Pin 7) should be connected to the positive supply voltage, while VS- (Pin 4) is to be connected to the negative supply voltage. Make sure the voltage difference between VS+ and VS- does not exceed the recommended supply voltage range stated in the data sheet.

2. Input Pins: The INA105KU accepts a differential input. Pin 2 (labeled as +IN) is the non-inverting input and Pin 3 (-IN) is the inverting input. Connect your differential signal across these pins. The INA105KU can also be used in single-ended mode by grounding one of the input pins.

3. Output Pin: Pin 6 (denoted as OUT) is the output of the INA105KU. Connect this pin to the subsequent stage in your signal path. If needed, you can add a load resistor between the OUT pin and the ground, considering the current driving capacity of the INA105KU.

4. Gain Set: Pins 1 and 8 are gain set pins. The INA105KU is a unity gain amplifier by default. If different gain is required, an external resistor (KG) should be connected between these two pins. The gain can be calculated using the formula G = 1 + (2*Rf/KG), where Rf is the internal resistance (20k ohm).

5. Feedback Resistors: Pins 5 and 8 are internal feedback resistors. In most applications, they don't need any external connection.

6. Offset Adjustment: If you need to adjust the offset voltage, you can connect an offset adjustment circuit to the input pins (Pins 2 and 3). Check the data sheet for more details about offset adjustment.

Note that the INA105KU is a versatile component with a variety of use cases, so its connection might vary depending on the specific application. Always remember to adhere to the recommended operating conditions specified in the data sheet of INA105KU.
