Name: HCPL-3120-000E
Brand: Broadcom Limited
SKU: HCPL-3120-000E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Broadcom Limited HCPL-3120-000E

Part No.:: HCPL-3120-000E

Manufacturer:: Broadcom Limited

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: HCPL-3120-000E.pdf

Description:: OPTOISO 3.75KV 1CH GATE DVR 8DIP

In Stock:: 2984

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

HCPL-3120-000E Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
Technology:
Optical Coupling
NumberofChannels:
1
Voltage-Isolation:
3750Vrms
CommonModeTransientImmunity(Min):
25kV/µs
PropagationDelaytpLH/tpHL(Max):
500ns, 500ns
PulseWidthDistortion(Max):
300ns
Rise/FallTime(Typ):
100ns, 100ns
Current-OutputHighLow:
2A, 2A
Current-PeakOutput:
2.5A
Voltage-Forward(Vf)(Typ):
1.5V
Current-DCForward(If)(Max):
25 mA
Voltage-OutputSupply:
15V ~ 30V
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Through Hole

HCPL-3120-000E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including HCPL-3120-000E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for HCPL-3120-000E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

HCPL-3120-000E information

Views：

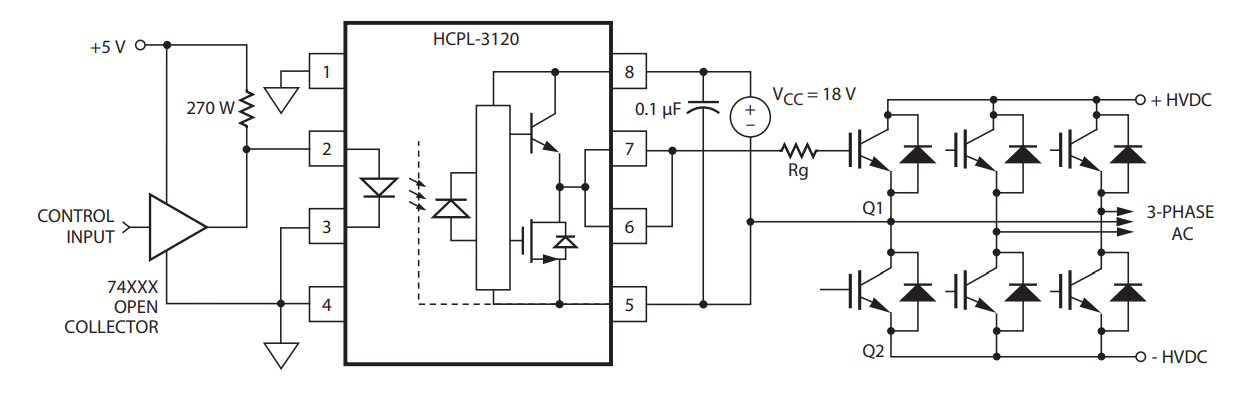

HCPL-3120-000E Typical application Circuitry

HCPL-3120-000E

The HCPL-3120-000E is a high-speed optocoupler device, often utilized for IGBT (Insulated Gate Bipolar Transistor) and MOSFET gate drive applications. Through the HCPL-3120-000E, designers can achieve electrical isolation between input and output while also benefiting from rapid signal transmission. In this guide, the specifics of the HCPL-3120-000E pin connections will be detailed.

1. LED Input Side: Connect the input signal to the Anode (Pin 3) of the HCPL-3120-000E. The Cathode (Pin 4) should be anchored to the ground, ensuring the LED current is controlled by interposing a current-limiting resistor between the input signal and the anode.

2. Powering the Device: The VCC pin (Pin 8) of the HCPL-3120-000E must be connected to your desired positive supply voltage. For noise suppression and optimal performance, affix a bypass capacitor between the VCC pin and the ground. The Ground (Pin 5) has to be firmly fastened to the common ground of your system.

3. Output Stage: For the HCPL-3120-000E, VO (Pin 6) represents the output, which can be interfaced directly with your IGBT or MOSFET gate. VE (Pin 7), or the output emitter, is typically connected to the ground or the negative terminal of the driving voltage, depending on the configuration.

4. Undedicated Pins: There are pins, specifically Pins 1 and 2 on the HCPL-3120-000E, that aren't designated for any internal connection. These pins should be left untouched and not tied to any other connection in your circuit.

In summary, the HCPL-3120-000E stands as a robust optocoupler solution, specifically tailored for gate drive applications, providing both speed and effective electrical isolation. When embarking on a design journey with the HCPL-3120-000E, meticulous attention to pin connections is imperative. For an exhaustive insight and more nuanced details, one should delve into the HCPL-3120-000E datasheet, a valuable resource in optimizing the device's integration into a circuit.
