onsemi FSV10100V

Part No.:: FSV10100V

Manufacturer:: onsemi

Package:: TO-277, 3-PowerDFN

Datasheet:: FSV10100V.pdf

Description:: DIODE SCHOTTKY 100V 10A TO277-3

In Stock:: 3199

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FSV10100V Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Schottky
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
796pF @ 4V, 1MHz
Reverse Recovery Time (trr):
22.94 ns
Current - Reverse Leakage @ Vr:
60 µA @ 100 V
Voltage - DC Reverse (Vr) (Max):
100 V
Current - Average Rectified (Io):
10A
Operating Temperature - Junction:
-55°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If:
670 mV @ 10 A

FSV10100V this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FSV10100V price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FSV10100V to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FSV10100V information

Views：

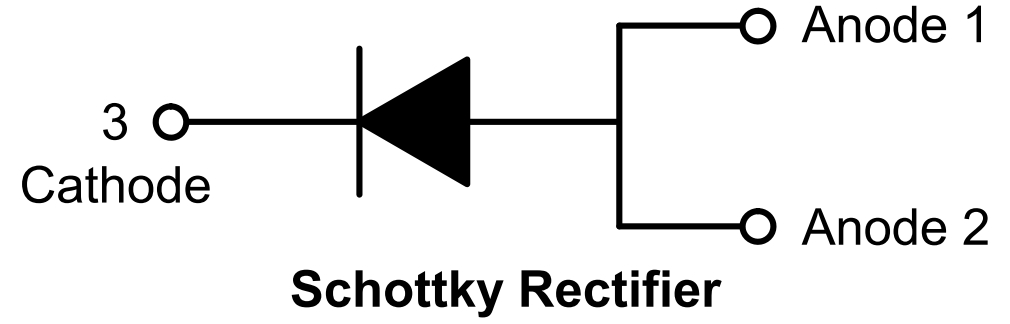

FSV10100V Typical application Circuitry

FSV10100V

The FSV10100V is a Schottky barrier rectifier diode designed for high-frequency applications. It is commonly used in power supply circuits, particularly in switching power supplies, where its fast switching speed and low forward voltage drop are advantageous.

Functionality: The FSV10100V is a diode that allows current to flow from anode to cathode in one direction but blocks reverse current flow. The Schottky barrier construction enables its fast switching speed and low forward voltage loss.

Applications: This diode is suitable for applications such as DC-DC converters, freewheeling diodes in inductive loads, and polarity protection circuits.

Parameters: The FSV10100V has a maximum repetitive reverse voltage (V_RRM) of 100V, a maximum average forward current (I_F(AV)) of 10A, and a maximum forward voltage drop (V_F) at 10A of 0.85V.

Specific Circuit Design for a DC-DC Converter:

1. Input Capacitor: Connect an input capacitor (C_IN) between the input voltage source (V_IN) and ground to filter input voltage ripple. The positive terminal of C_IN is connected to V_IN.

2. Inductor: Attach an inductor (L) to the input voltage source in series. The positive terminal of C_IN is linked to one end of the inductor, and the FSV10100V's anode is attached to the other end.

3. Diode: Place the FSV10100V with its anode connected to the inductor and its cathode connected to the output capacitor (C_OUT) and the load (R_LOAD).

4. Output Capacitor: To reduce output voltage ripple, connect C_OUT between the FSV10100V's cathode and ground. The cathode of the FSV10100V is linked to the positive terminal of C_OUT.

5. Load: Connect R_LOAD between the cathode of the FSV10100V and ground.

Design Considerations:

- Thermal Management: Ensure proper heat dissipation for the FSV10100V, as power losses during operation can lead to elevated temperatures.

- Protection against Reverse Voltage: Make sure that the reverse voltage does not surpass the FSV10100V's maximum repeating reverse voltage rating.

- Forward Current Rating: Ensure that the average forward current does not exceed the maximum average forward current rating of the FSV10100V.

- Component Selection: Choose appropriate values for the input and output capacitors and the inductor to achieve the desired performance in the DC-DC converter application.

By following these guidelines and implementing the outlined circuit design, the FSV10100V can be effectively integrated into various applications requiring fast switching and low forward voltage drop, such as in DC-DC converters.
