Analog Devices Inc./Maxim Integrated DS32KHZSN#

Part No.:: DS32KHZSN#

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: DS32KHZSN#.pdf

Description:: XTAL OSC TCXO 32.7680KHZ CMOS

In Stock:: 2691

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DS32KHZSN# this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DS32KHZSN# price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DS32KHZSN# to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

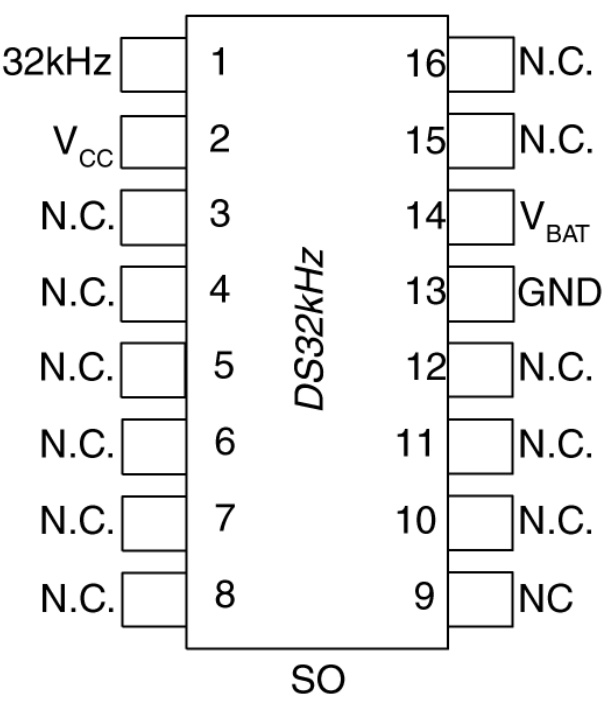

DS32KHZSN# Typical application Circuitry

A temperature-compensated crystal oscillator (TCXO) called the DS32KHZSN# was created expressly to deliver low-frequency, extremely precise 32.768 kHz clock signals. The chip is often utilized for maintaining real-time clocks (RTC) or synchronizing data in low-power environments.

Applicability of DS32KHZSN#

Applications for the DS32KHZSN# primarily center on:

1. GPS Devices

2. Telecommunication Systems

3. Automotive Electronics

4. Real-Time Clock Modules

Key Features of DS32KHZSN#

Notable attributes of DS32KHZSN# include:

- Low power consumption

- Wide temperature range

- Excellent frequency stability

- Compact packaging

Example Circuit: Real-Time Clock Module

This example demonstrates how to use DS32KHZSN# to maintain an accurate real-time clock.

How to Connect:

1. Managing Power Supply

- Vcc and GND: The power supply, typically 3.3V or 5V, is connected to the Vcc pin, while GND is connected to the system ground.

2. Clock Signal Output

- Clock Output to RTC Input: The clock output from the DS32KHZSN# is connected to the clock input (usually labeled as X1 or CLKIN) of an RTC module.

3. Battery Backup

- Battery to Vbatt: A lithium battery is connected to the Vbatt pin. This ensures the DS32KHZSN# continues functioning even when the primary power source fails.

4. Control Pin (Optional)

- Control Pin to Microcontroller: If your setup needs to turn off the TCXO to save power, the control pin can be connected to a digital output pin on a microcontroller. Sending a LOW signal would turn off the TCXO, while HIGH would turn it on.

Things to Consider While Designing:

While incorporating DS32KHZSN# into your designs, you should pay attention to:

- PSRR (Power Supply Rejection Ratio): Make sure to filter the power supply to avoid introducing noise into the 32 kHz clock signal.

- Battery Quality: For battery backup, using a high-quality lithium battery is advisable for long-term reliability.

- Isolation: It's best to place the DS32KHZSN# away from high-frequency components to minimize interference and maintain the integrity of the low-frequency clock signal.

- Temperature Conditions: Since the device is a TCXO, make sure it is mounted in a location where sudden temperature changes are least likely to occur.

By being mindful of these considerations, one can seamlessly integrate DS32KHZSN# into real-time clock modules or other applications requiring accurate low-frequency clock signals.

DS32KHZSN# information

DS32KHZSN# Specifications

Package/Case:
16-SOIC (0.295, 7.50mm Width)
Packaging:
Tube
Series:
DS
ProductStatus:
Active
BaseResonator:
Crystal
Type:
TCXO
Frequency:
32.768 kHz
Function:
-
Output:
CMOS
Voltage-Supply:
5V
FrequencyStability:
±7.5ppm
AbsolutePullRange(APR):
-
OperatingTemperature:
-40°C ~ 85°C
SpreadSpectrumBandwidth:
-
Current-Supply(Max):
220µA
Ratings:
-
MountingType:
Surface Mount
Size/Dimension:
0.412 L x 0.300 W (10.46mm x 7.62mm)
