Burr Brown DDC112UK/1K

Part No.:: DDC112UK/1K

Manufacturer:: Burr Brown

Package:: 28-SOIC (0.295, 7.50mm Width)

Datasheet:: DDC112UK/1K.pdf

Description:: IC ADC 20BIT SIGMA-DELTA 28SOIC

In Stock:: 2483

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DDC112UK/1K Specifications

Packaging:
Bulk
Series:
-
Product Status:
Obsolete
Number of Bits:
20
Sampling Rate(PerSecond):
3k
Number of Inputs:
2
Input Type:
Single Ended
Data Interface:
Serial
Configuration:
DSI-ADC
Ratio-S/H:ADC:
0:1
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
4.75V ~ 5.25V
Voltage-Supply Digital:
4.75V ~ 5.25V
Features:
Simultaneous Sampling
Operating Temperature:
0°C ~ 70°C

DDC112UK/1K this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DDC112UK/1K price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DDC112UK/1K to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DDC112UK/1K information

Views：

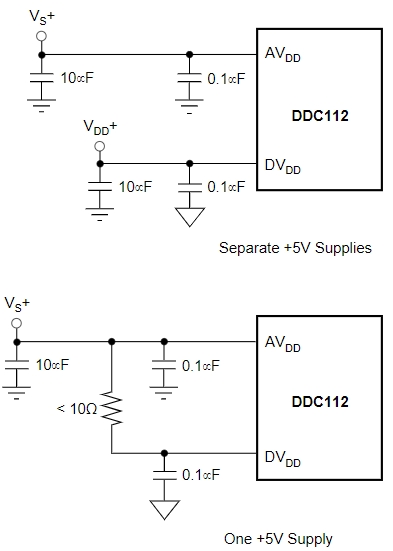

DDC112UK/1K Typical application Circuitry

DDC112UK 1K

The DDC112UK/1K is a highly integrated, precision 20-bit analog-to-digital converter (ADC) designed by Texas Instruments, featuring dual channels for direct connection to photodiodes. This ADC is particularly suited for applications requiring accurate current-to-digital conversion with high resolution and low noise, such as scientific instrumentation, medical imaging (e.g., X-ray and CT scanners), and industrial process control.

Key Features and Specifications:

- Resolution: 20-bit high resolution, ensuring precise measurement for low-level signals.

- Channels: Dual-channel configuration, allowing simultaneous measurement of two signals.

- Input Type: Direct photodiode inputs, optimized for current measurement from light-sensitive devices.

- Sampling Rate: Programmable sampling rates to suit various application needs.

- Power Supply: Single 5V power supply, simplifying the system power design.

- Interface: Serial interface for easy connection to microcontrollers or digital signal processors.

Application Scenario: The DDC112UK/1K is ideal for a light measurement system in a laboratory setting, where precise quantification of light intensity is crucial, such as in spectrophotometry used for chemical analysis.

Circuit Design Integration:

Designing a light measurement system with the DDC112UK/1K involves detailed attention to its pin configuration and optimal electrical connections:

1. Photodiode Connections (IN1, IN2; Pins for direct photodiode connection): Connect the photodiodes directly to these pins. The anode of the photodiode is connected to ground, and the cathode is connected to IN1 or IN2. It's essential to minimize the length of these connections to reduce noise pickup.

2. Reference Voltage Setup (REFIN, REFOUT, REFGND; specific pins for reference voltage): Connect a stable and precise reference voltage to REFIN. REFOUT can be used to provide a stable reference to other parts of the circuit. REFGND is connected to the analog ground.

3. Digital Interface (DOUT, SCLK, SDIN, CS; designated pins for SPI communication): Connect these pins to a microcontroller or DSP. CS selects the device for communication, SCLK provides the serial clock, SDIN is the serial data input from the controller to the ADC, and DOUT is the serial data output from the ADC.

4. Power Supply and Grounding (AVDD, DVDD, AGND, DGND; respective pins for power and ground): AVDD and DVDD should be connected to a 5V power supply. It is critical to separate analog (AGND) and digital ground (DGND) to minimize digital noise affecting analog measurements.

5. Clock Input (CLK; a specific pin for external clock input): Provide a clean, stable clock signal to this pin. The quality of the clock directly influences the precision and noise level of the measurements.

Design Considerations:

- Photodiode Selection: Choose photodiodes that match the spectral sensitivity required for your application. The photodiode's dark current, noise, and capacitance characteristics are crucial for optimizing measurement accuracy.

- Signal Integrity: Use proper PCB layout techniques to shield and route analog signals, minimizing noise and interference. Keeping digital traces away from analog paths is critical.

- Thermal Management: Even though the DDC112UK/1K is designed for low power consumption, managing heat in the system is essential, especially when used in a closed environment or near heat-sensitive components.

- Firmware Development: Implement robust firmware to control the ADC, including initializing the device, setting the sampling rate, and reading the data. Consider integrating error-checking algorithms to improve reliability.

- System Calibration: Implement a calibration procedure to account for system offsets, gain errors, and non-linearity. Regular calibration ensures long-term accuracy of the light measurement system.

Integrating the DDC112UK/1K into a laboratory light measurement system showcases its capabilities in providing high-precision, low-noise measurements, essential for accurate scientific analysis. This application highlights the ADC's suitability for sophisticated measurement systems where data integrity is paramount.
