Texas Instruments DDC112U

Part No.:: DDC112U

Manufacturer:: Texas Instruments

Package:: 28-SOIC (0.295, 7.50mm Width)

Datasheet:: DDC112U.pdf

Description:: IC ADC 20BIT SIGMA-DELTA 28SOIC

In Stock:: 3169

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DDC112U Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
20
Sampling Rate(PerSecond):
3k
Number of Inputs:
2
Input Type:
Single Ended
Data Interface:
SPI
Configuration:
DSI-ADC
Ratio-S/H:ADC:
2:1
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

DDC112U this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DDC112U price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DDC112U to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DDC112U information

Views：

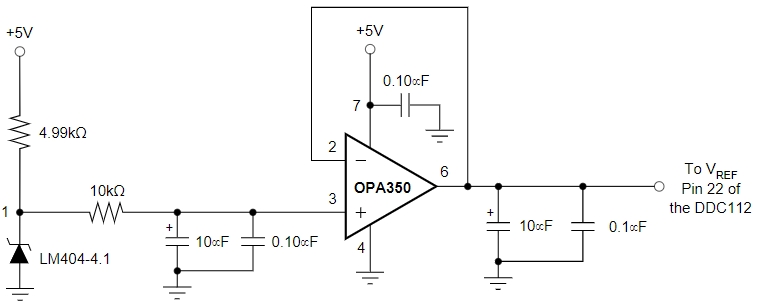

DDC112U Typical application Circuitry

DDC112U

The DDC112U is a precision, 20-bit, analog-to-digital converter (ADC) designed by Texas Instruments, featuring dual channels and integrating a charge-balancing ADC architecture. It is specifically tailored for direct connection to a photodiode and is optimized for applications requiring high-resolution measurement of small signal inputs directly from sensor outputs. This chip is particularly suitable for scientific instrumentation, medical devices, and industrial measurement systems where accuracy, stability, and low noise are crucial.

Key Features and Specifications:

- Resolution: 20-bit high-resolution ADC, providing precise measurement capabilities.

- Channels: Dual-channel input, allowing for simultaneous measurement of two independent sources.

- Input Type: Direct photodiode input capability, with an integrated current-to-voltage conversion.

- Sampling Rate: Adjustable sampling rates to optimize performance based on application requirements.

- Power Supply: Operates from a single 5V supply, simplifying power management in system design.

- Interface: Digital serial interface, facilitating easy connection to microcontrollers or digital signal processors.

Application Scenario: A common application for the DDC112U is in a blood analysis machine within medical diagnostics, where it serves as the core component in the optical detection system, converting light intensity into digital values for further analysis.

Circuit Design Integration:

Incorporating the DDC112U into a blood analysis machine involves careful planning around its pin configuration and electrical interfaces:

1. Photodiode Connection (IN1-, IN1+, IN2-, IN2+; Pins 1, 2, 15, and 16): Connect the anodes of two photodiodes to IN1+ and IN2+, and their cathodes to IN1- and IN2-. These inputs are designed for direct photodiode connection, facilitating current-to-voltage conversion for optical signal measurement.

2. Reference Voltage (REFH, REFL; Pins 14 and 3): Establish a stable reference voltage by connecting these pins to the high and low reference voltages. This setup defines the measurement range for the ADC, critical for achieving accurate and reliable readings.

3. Digital Output Interface (DOUT/DRDY, SCLK, DIN, CS; Pins 5, 6, 7, and 8): Interface these pins with a microcontroller or DSP. DOUT/DRDY indicates data readiness and serves as the serial data output, SCLK is the serial clock input, DIN is the serial data input, and CS is the chip select, controlling access to the device's SPI interface.

4. Power Supply and Grounding (VDD, DGND, AGND; Pins 10, 11, 4): Connect VDD to a regulated 5V power supply, and ensure proper grounding by connecting DGND and AGND to the system's digital and analog ground planes, respectively. Maintaining separate ground planes for digital and analog circuits helps minimize noise.

5. Clock Input (CLK IN, CLK OUT; Pins 12 and 13): Provide a clock signal to CLK IN for the ADC's internal operations. CLK OUT can optionally be used to daisy-chain multiple ADCs or provide a clock signal to other parts of the system.

Design Considerations:

- Signal Integrity: Care must be taken to minimize noise in the signal path, especially between the photodiodes and the ADC inputs. Shielding and layout techniques should be employed to protect against electromagnetic interference.

- Photodiode Selection: Choose photodiodes with appropriate sensitivity and response time for the application's specific light detection requirements. The characteristics of the photodiode directly impact the accuracy and responsiveness of the measurement system.

- Reference Voltage Stability: The stability and accuracy of the reference voltages are vital for the ADC's performance. Using precision voltage references and incorporating decoupling capacitors close to the REFH and REFL pins can enhance measurement precision.

- Power Supply Decoupling: Implement decoupling capacitors near the VDD pin to stabilize the power supply line and reduce the impact of transient voltage spikes.

- Firmware and Data Processing: Develop firmware for the microcontroller or DSP to properly initialize the DDC112U, manage data acquisition timing, and process the digitized data. Implementing digital filtering and calibration routines in the firmware can further improve measurement accuracy and reliability.

Integrating the DDC112U into a blood analysis machine's optical detection system exemplifies its capability to accurately and reliably digitize small signal inputs, such as those from photodiodes responding to light passed through samples. This application underscores the ADC's utility in medical diagnostics, where precision and stability are paramount.
