Dialog Semiconductor GmbH DA14585-00000AT2

Part No.:: DA14585-00000AT2

Manufacturer:: Dialog Semiconductor GmbH

Package:: 40-VFQFN Exposed Pad

Datasheet:: DA14585-00000AT2.pdf

Description:: IC RF TXRX+MCU BLUETOOTH 40VFQFN

In Stock:: 3732

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

DA14585-00000AT2 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SmartBond™
ProductStatus:
Active
Type:
TxRx + MCU
RFFamily/Standard:
Bluetooth
Protocol:
Bluetooth v5.0
Modulation:
-
Frequency:
2.4GHz
DataRate(Max):
-
Power-Output:
0dBm
Sensitivity:
-93dBm
MemorySize:
64kB OTP, 128kB ROM, 96kB SRAM
SerialInterfaces:
I²C, SPI, UART
GPIO:
25
Voltage-Supply:
3.3V
Current-Receiving:
3.7mA
Current-Transmitting:
3.4mA
OperatingTemperature:
-
MountingType:
Surface Mount

DA14585-00000AT2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including DA14585-00000AT2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for DA14585-00000AT2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

DA14585-00000AT2 information

Views：

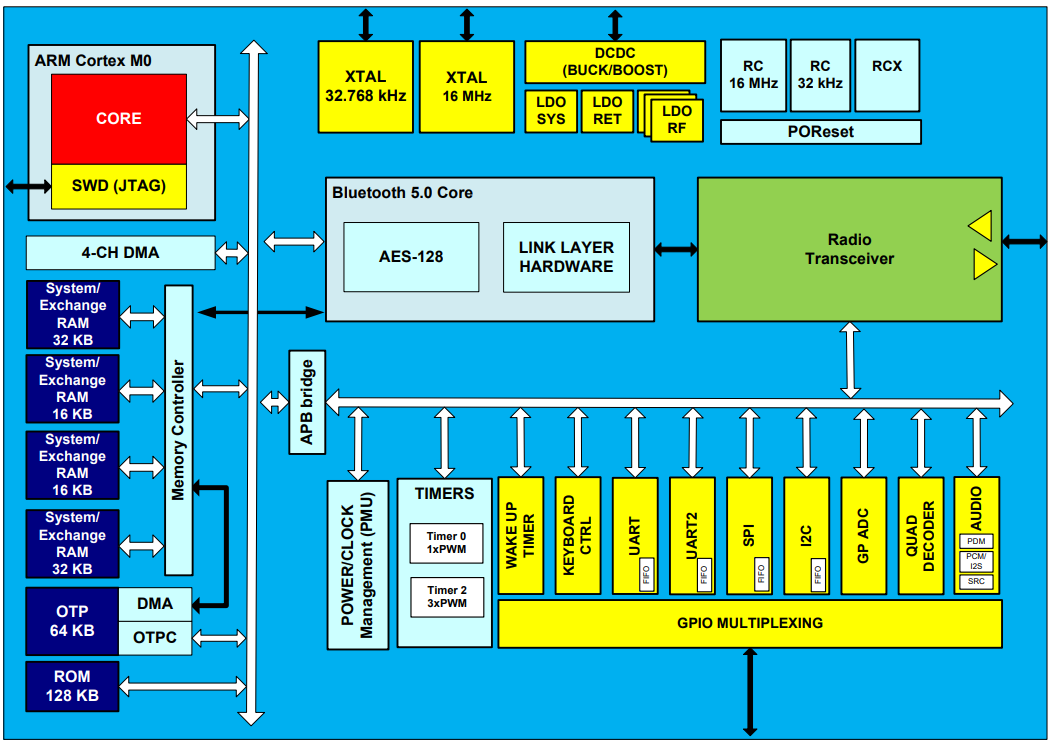

DA14585-00000AT2 Typical application Circuitry

DA14585-00000AT2

The DA14585-00000AT2 is a member of the DA14585 series, an advanced line of integrated circuits specifically engineered for Bluetooth Low Energy (BLE) applications. This series is celebrated for its exceptional low power consumption and compact size, making it an ideal choice for wireless communication in a multitude of applications including wearable technology, smart home devices, and health monitoring systems. The DA14585-00000AT2 distinguishes itself with its integrated BLE radio, microcontroller, and memory, offering a complete solution for efficient and compact wireless connectivity.

1. Power Supply Inputs (VDD, VBAT Pins): Connect the VDD pin to a stable power supply, typically around 1.8V to 3.6V. The VBAT pin is designed for battery operation and should be connected to the battery's positive end.

2. Grounding (GND Pin): All GND (ground) pins must be connected to your circuit's common ground. The stability and correct operation of the DA14585-00000AT2 are guaranteed by this.

3. Bluetooth Radio Interface (RF Pins): The RF pins are essential for the BLE feature. These should be connected to an external antenna to facilitate wireless communication.

4. External Oscillator Connection (XTAL1, XTAL2 Pins): These pins are for an external crystal oscillator that provides the primary clock source. Ensure that the connected crystal matches the specifications required by the DA14585-00000AT2.

5. Input/Output (I/O) Ports: The DA14585-00000AT2 includes multiple I/O pins for connecting external components like sensors, actuators, or other peripherals, depending on your application requirements.

6. Programming Interface (SWDIO, SWCLK Pins): For programming the IC, make sure the Serial Wire Debug (SWD) pins – SWDIO and SWCLK – are accessible and connected to your programming interface.

7. Decoupling Capacitors Use: Near the power supply pins, place decoupling capacitors to ensure voltage stability and noise reduction. Capacitors ranging from 0.1 μF to 10 μF are typically used based on the power requirements.

8. Reset Mechanism (RESET Pin): The RESET pin can be connected to a reset button or circuit for manual resetting of the IC.

9. PCB Design Strategy: When designing the PCB, special attention should be paid to the layout of RF components and the antenna. Ensure that the RF traces are properly impedance-matched and keep the antenna path as short as possible to minimize signal loss.

In summary, the DA14585-00000AT2, part of the DA14585 series, is a sophisticated IC designed for BLE applications requiring low power consumption and compact design. Efficient implementation involves precise connections for power supply, grounding, RF antenna, external oscillator, I/Os, programming interfaces, and reset functions. Additionally, the incorporation of decoupling capacitors and a well-planned PCB layout, especially for RF sections, is crucial for optimal performance in wireless communication projects.
