Texas Instruments CDCLVC1102PWR

Part No.:: CDCLVC1102PWR

Manufacturer:: Texas Instruments

Package:: 8-TSSOP (0.173, 4.40mm Width)

Datasheet:: CDCLVC1102PWR.pdf

Description:: IC CLK BUFFER 1:2 250MHZ 8TSSOP

In Stock:: 2132

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CDCLVC1102PWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Type:
Fanout Buffer (Distribution)
Number of Circuits:
1
Ratio-Input: Output:
1:2
Differential-Input: Output:
No/No
Input:
LVCMOS
Output:
LVCMOS
Frequency-Max:
250 MHz
Voltage-Supply:
2.3V ~ 3.6V
Operating Temperature:
-40°C ~ 85°C
Mounting Type:
Surface Mount

CDCLVC1102PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CDCLVC1102PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CDCLVC1102PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CDCLVC1102PWR information

Views：

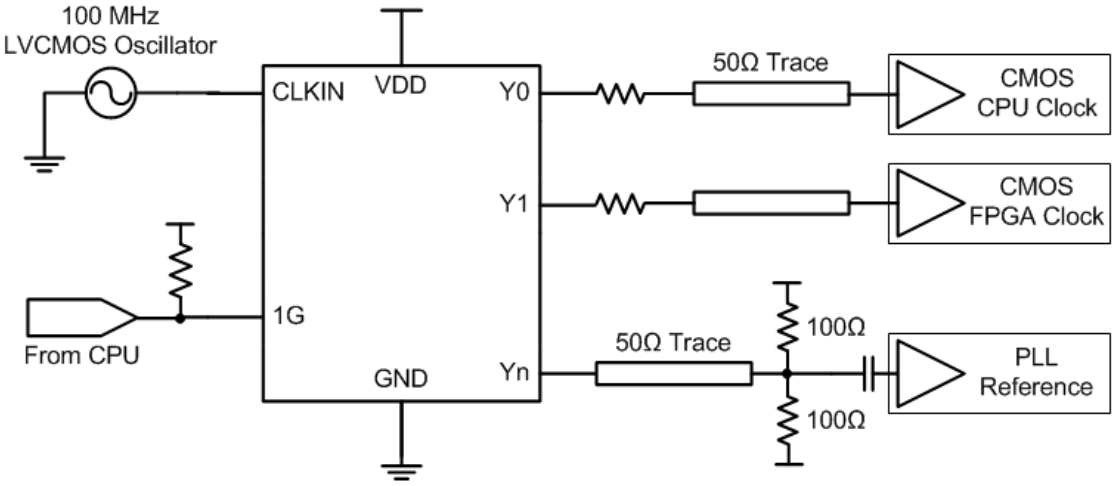

CDCLVC1102PWR Typical application Circuitry

CDCLVC1102PWR

The CDCLVC1102PWR is an integrated circuit from the LVC (Low-Voltage CMOS) family, specifically tailored for clock distribution and signal buffering. This chip is a 2-output low-jitter clock buffer, designed to distribute high-speed signals with minimal distortion. The CDCLVC1102PWR is known for its low voltage operation, typically ranging from 2.5V to 3.3V, and its capacity to provide low-skew, low-jitter clock distribution, making it an ideal choice for precise timing applications in digital systems.

1. VDD (Power Supply) Connection: The power supply for the CDCLVC1102PWR is connected to pin 8. This pin should be supplied with a voltage in the range of 2.5V to 3.3V for optimal performance.

2. Ground (GND) Connection: Pin 5 of the CDCLVC1102PWR serves as the ground connection. This pin has to be connected to system ground in order for the IC to function properly.

3. Input Clock (Pin 1): The input clock signal is fed to pin 1. This pin receives the clock signal that will be buffered and distributed by the chip.

4. Clock Outputs (Pins 3 and 6): The CDCLVC1102PWR provides two buffered output clocks at pins 3 and 6. These outputs deliver the buffered version of the input clock signal with minimal skew and jitter.

5. Enable Pin (Pin 4): Pin 4 acts as an enable pin for the CDCLVC1102PWR. The outputs are activated and operational when this pin is high. The outputs are deactivated when low.

6. Decoupling Capacitors: To maintain signal integrity and minimize noise, it is recommended to place decoupling capacitors near the VDD pin. The particular application needs should be taken into consideration while selecting these capacitors.

7. PCB Layout Considerations: In the PCB design, it's essential to provide a clean and short path for the clock signal to minimize signal degradation. Additionally, the layout should be optimized to reduce noise coupling into the clock lines.

In summary, the CDCLVC1102PWR from the LVC family is a dual-output clock buffer, well-suited for distributing high-speed, low-jitter clock signals in digital systems. Ensuring correct connections for power, ground, the clock input, and clock outputs, along with appropriate enable pin management, is critical for the effective operation of the CDCLVC1102PWR. Moreover, incorporating suitable decoupling capacitors and careful PCB layout planning are essential to maximize the performance and reliability of the CDCLVC1102PWR in any timing-critical application.
