Texas Instruments CC2564CRVMR

Part No.:: CC2564CRVMR

Manufacturer:: Texas Instruments

Package:: 76-VQFN Dual Rows, Exposed Pad

Datasheet:: CC2564CRVMR.pdf

Description:: IC RF TXRX+MCU BLE 4.2 76VFQFN

In Stock:: 2842

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CC2564CRVMR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
TxRx + MCU
RFFamily/Standard:
Bluetooth
Protocol:
Bluetooth v4.2
Modulation:
8DPSK, DQPSK, GFSK
Frequency:
2.4GHz
DataRate(Max):
-
Power-Output:
10dBm
Sensitivity:
-96dBm
MemorySize:
-
SerialInterfaces:
UART
GPIO:
-
Voltage-Supply:
1.7V ~ 4.8V
Current-Receiving:
-
Current-Transmitting:
112.5mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

CC2564CRVMR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CC2564CRVMR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CC2564CRVMR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CC2564CRVMR information

Views：

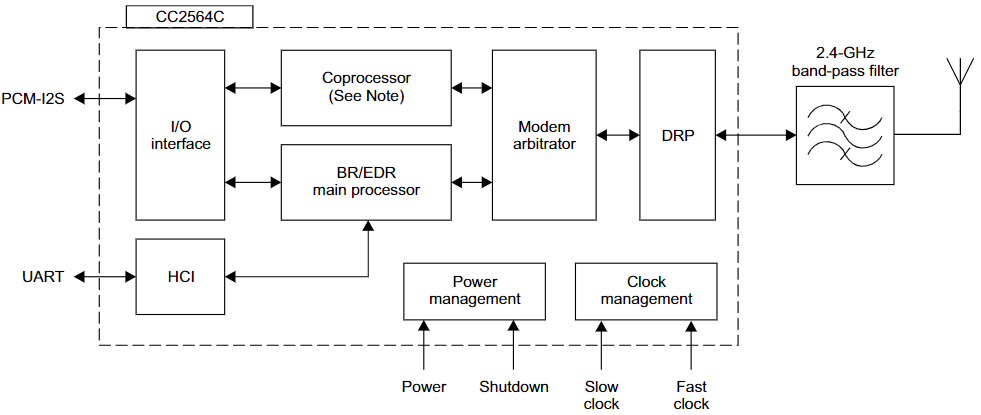

CC2564CRVMR Typical application Circuitry

CC2564CRVMR

The CC2564CRVMR is a significant Bluetooth and dual-mode controller from Texas Instruments' CC2564 series. This series is known for its advanced capabilities in supporting Bluetooth Classic (BR/EDR) and Bluetooth Low Energy (BLE) protocols. The CC2564CRVMR is specifically designed for applications requiring seamless and efficient Bluetooth connectivity, such as in wireless audio, automotive communication systems, and health and fitness devices. Its dual-mode functionality makes it versatile for a wide range of applications that require both high data rates and low-power consumption.

1. Power Supply (VDD_PINS): The CC2564CRVMR's VDD pins need to be linked to a reliable power supply. These pins power the core of the device, and the voltage supplied must be within the recommended range for optimal performance of the Bluetooth functionalities.

2. Ground Connections (GND_PINS): All GND pins must be connected to the system ground. This grounding is crucial for ensuring a stable operation of the device by providing a common reference throughout the circuit.

3. RF Antenna Interface (RF_P, RF_N Pins): The RF_P and RF_N pins are the differential outputs to the antenna. For effective Bluetooth communication, these pins should be connected to an antenna, typically through an RF matching network, to ensure optimal performance in the desired frequency bands.

4. Digital I/O Configuration (I/O PINS): The CC2564CRVMR includes multiple digital I/O pins. These pins are used for interfacing with external components, such as LEDs, buttons, or other peripherals, and can be configured according to the requirements of the specific application.

5. Host Interface (UART, PCM/I2S Pins): The device features UART and PCM/I2S interfaces for communication with a host processor. These pins are essential for transmitting audio and data signals, making them crucial for applications like wireless headsets or automotive communication systems.

6. External Clock Source (CLK_IN Pin): The CLK_IN pin is used for connecting an external clock source, which is required for timing and synchronization purposes in Bluetooth communication.

7. Reset Pin (RESET_N): The RESET_N pin is used to reset the device externally. This pin can be connected to a reset mechanism in the system or left unconnected if external resetting is not necessary.

8. Decoupling Capacitors: Reliability of operation may be ensured by placing decoupling capacitors adjacent to the power supply pins. These capacitors are crucial for filtering out noise and stabilizing the power supply to the device.

9. PCB Layout Considerations: Designing the PCB for the CC2564CRVMR requires careful planning, particularly for the RF traces. Minimizing the length of the RF paths, ensuring proper impedance matching, and avoiding interference with other signals are crucial for maintaining signal integrity and optimal Bluetooth performance.

In summary, the CC2564CRVMR, part of the CC2564 series, is designed for applications requiring robust Bluetooth connectivity, including both Classic and Low Energy protocols. Implementing this device involves detailed planning for power supply connections, grounding, RF antenna interfacing, digital I/O configuration, host communication, external clock source, and reset functionality. Moreover, integrating decoupling capacitors and a well-thought-out PCB layout are essential for the effective performance of the CC2564CRVMR in Bluetooth-enabled devices.
