Texas Instruments CC1310F128RGZR

Part No.:: CC1310F128RGZR

Manufacturer:: Texas Instruments

Package:: 48-VFQFN Exposed Pad

Datasheet:: CC1310F128RGZR.pdf

Description:: IC RF TXRX+MCU ISM<1GHZ 48VFQFN

In Stock:: 2003

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CC1310F128RGZR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SimpleLink™
ProductStatus:
Active
Type:
TxRx + MCU
RFFamily/Standard:
General ISM < 1GHz
Protocol:
-
Modulation:
DSSS, GFSK
Frequency:
300MHz ~ 930MHz
DataRate(Max):
50kbps
Power-Output:
14dBm
Sensitivity:
-124dBm
MemorySize:
128kB Flash, 20kB RAM
SerialInterfaces:
I²C, I²S, JTAG, SPI, UART
GPIO:
30
Voltage-Supply:
1.8V ~ 3.8V
Current-Receiving:
5.5mA
Current-Transmitting:
12.9mA ~ 22.6mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

CC1310F128RGZR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CC1310F128RGZR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CC1310F128RGZR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CC1310F128RGZR information

Views：

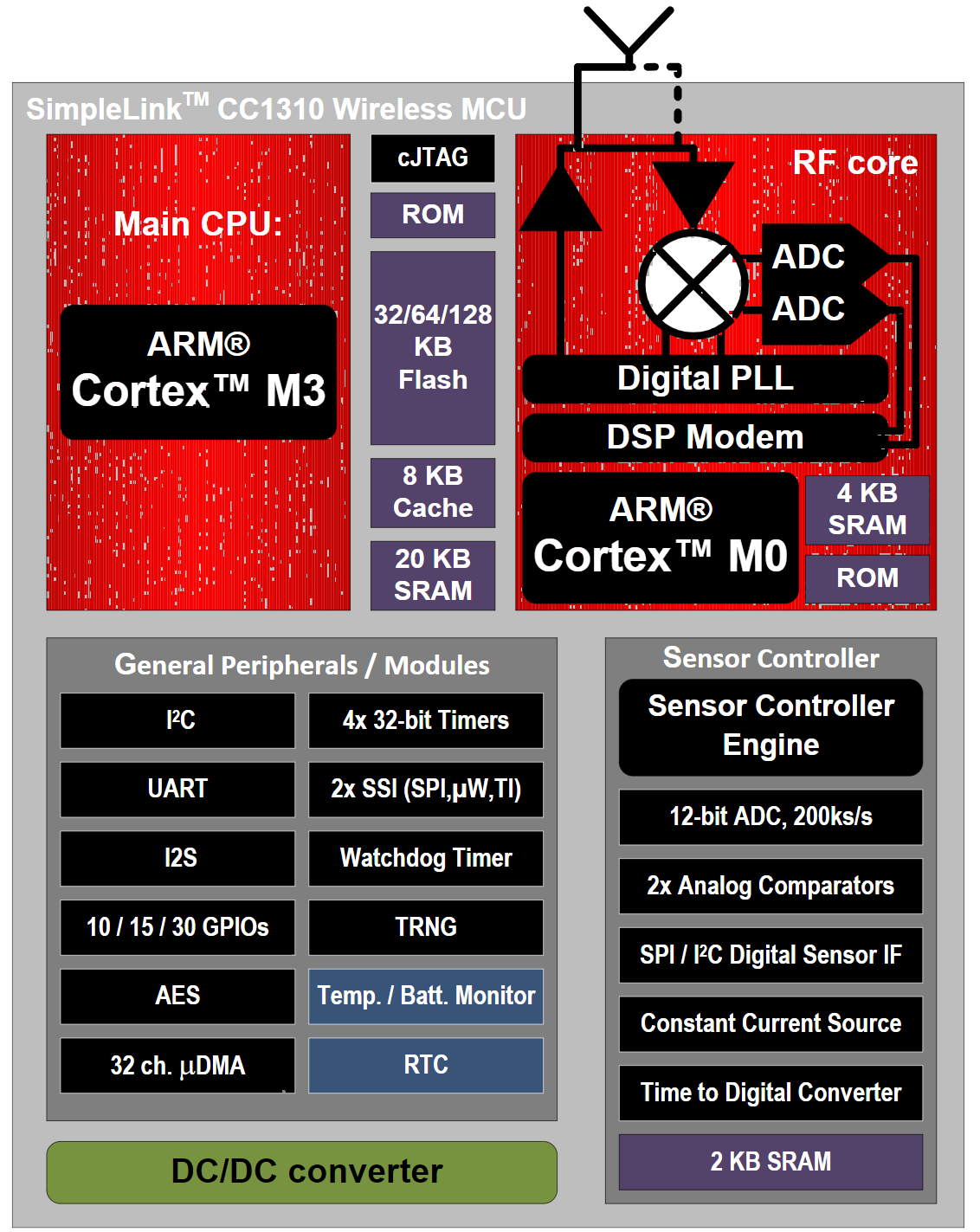

CC1310F128RGZR Typical application Circuitry

CC1310F128RGZR

The CC1310F128RGZR is a significant component in Texas Instruments' CC1310 family, renowned for its integration of a powerful ARM Cortex-M3 microcontroller with a high-performance RF transceiver. The CC1310F128RGZR is perfect for a variety of Internet of Things (IoT) applications, such as smart grid, home automation, and wireless sensor networks, because it is part of this series, which is specifically made for low-power wireless applications. Its unique combination of efficient power consumption and robust wireless capabilities makes it a top choice for applications where long battery life and reliable communication are essential.

1. Power Supply Connections (VDD Pins): The CC1310F128RGZR requires connection to a stable power supply through its VDD pins. The device operates efficiently in a low-voltage range typical for microcontroller and RF systems, ensuring optimal performance.

2. Grounding (GND Pins): All GND pins on the CC1310F128RGZR should be connected to the system's ground. This is crucial for providing a stable reference for the entire circuit and is essential for the proper functioning of both the microcontroller and RF transceiver.

3. RF Antenna Interface (RF_P, RF_N Pins): The RF_P and RF_N pins are differential antenna connections for the RF transceiver. These pins require connection to an antenna, either directly or through an RF matching network, tailored to the specific frequency and application requirements.

4. Digital I/O (DIOx Pins): The CC1310F128RGZR features multiple Digital I/O (DIO) pins. These pins are versatile and can be configured for various digital interface functionalities such as GPIO, serial communication, or other digital control signals, depending on the application's requirements.

5. Serial Communication Interfaces (UART, SPI, I2C Pins): For serial data communication, the CC1310F128RGZR includes pins for UART, SPI, and I2C interfaces. These pins should be connected to corresponding interfaces on other devices or microcontrollers for data transfer and control.

6. External Oscillator (XOSC_H, XOSC_L Pins): An external crystal oscillator is connected via the XOSC_H and XOSC_L pins. This oscillator provides the necessary clock signals for both the microcontroller and the RF transceiver.

7. Reset Pin (RESET_N): The RESET_N pin is used for externally resetting the microcontroller. This pin can be connected to a reset circuit or left unconnected if not utilized.

8. Power Decoupling and Filtering: Decoupling capacitors should be placed near the VDD pins to ensure a stable power supply. Additional filtering components may be required for noise reduction and signal integrity, especially in RF applications.

9. PCB Design Considerations: When designing the PCB for the CC1310F128RGZR, it is important to consider the segregation of digital and analog sections, minimize the length of critical traces like those for RF signals, and ensure proper impedance matching for the antenna. A well-planned ground plane and careful routing can significantly enhance the performance of the device.

In summary, the CC1310F128RGZR is a versatile and powerful component for IoT and wireless applications, combining a microcontroller with an RF transceiver. Implementing this device requires careful planning of power supply, grounding, RF antenna interface, digital I/O, serial interfaces, external oscillator connection, and reset functionalities. Incorporating appropriate decoupling, filtering components, and a thoughtfully designed PCB are crucial for leveraging the full capabilities of the CC1310F128RGZR in complex wireless communication systems.
