Texas Instruments CC1120RHBR

Part No.:: CC1120RHBR

Manufacturer:: Texas Instruments

Package:: 32-VFQFN Exposed Pad

Datasheet:: CC1120RHBR.pdf

Description:: IC RF TXRX+MCU ISM<1GHZ 32VFQFN

In Stock:: 2486

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CC1120RHBR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
TxRx + MCU
RFFamily/Standard:
General ISM < 1GHz
Protocol:
-
Modulation:
2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK
Frequency:
164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz
DataRate(Max):
200kbps
Power-Output:
16dBm
Sensitivity:
-127dBm
MemorySize:
4kB ROM, 256B RAM
SerialInterfaces:
SPI
GPIO:
4
Voltage-Supply:
2V ~ 3.6V
Current-Receiving:
17mA ~ 23mA
Current-Transmitting:
32mA ~ 54mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

CC1120RHBR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CC1120RHBR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CC1120RHBR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CC1120RHBR information

Views：

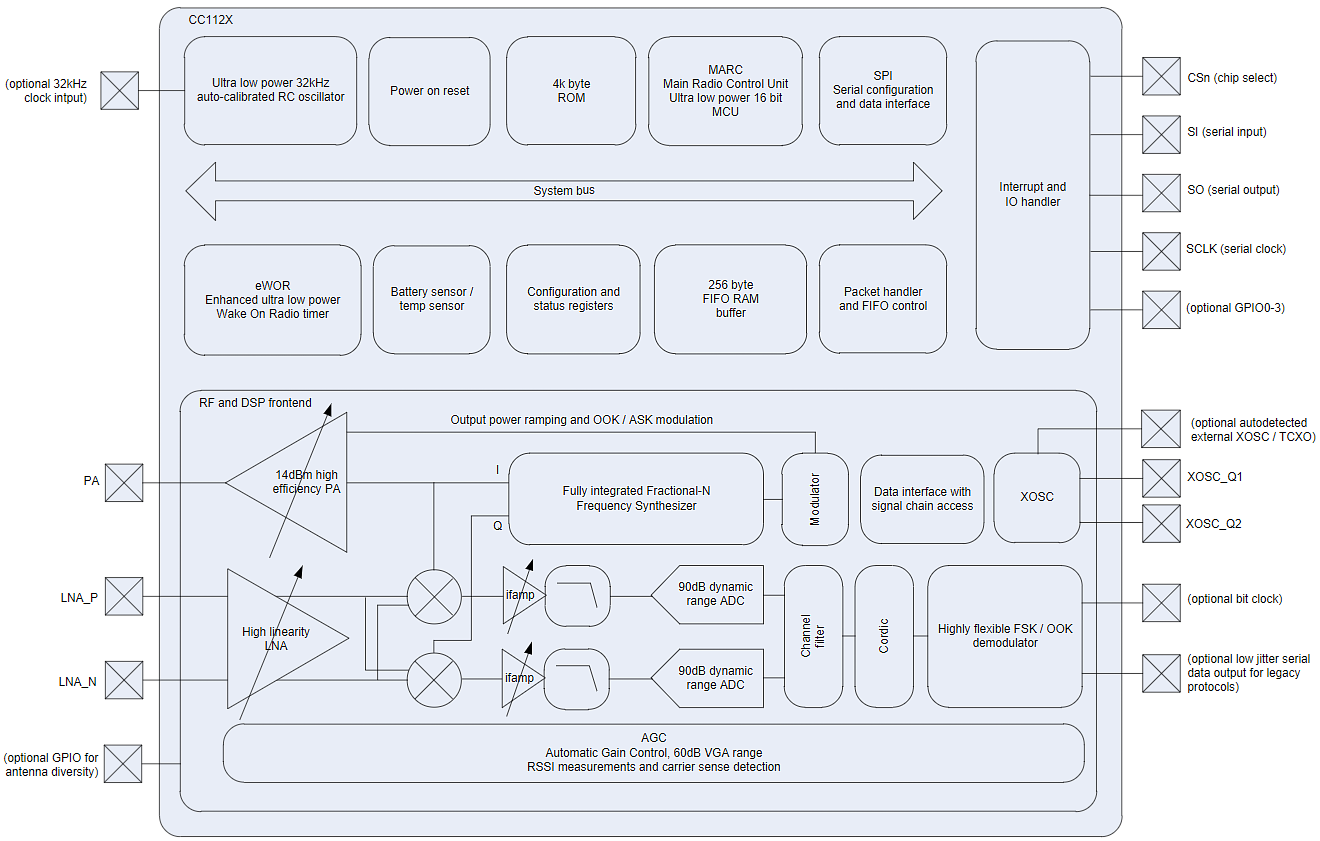

CC1120RHBR Typical application Circuitry

CC1120RHBR

The CC1120RHBR is a prominent member of Texas Instruments' CC1120 series, a line of high-performance RF transceivers renowned for their exceptional range, low power consumption, and robustness in signal quality. This series is particularly designed for long-range wireless applications, making the CC1120RHBR an ideal choice for industries and systems where reliable, long-distance wireless communication is crucial, such as in smart metering, industrial control, and home automation systems.

1. Power Supply (VDD Pins): The CC1120RHBR features several VDD pins for connecting to the power source. These pins should be supplied with a stable voltage that aligns with the specifications for low-power RF devices, ensuring the transceiver's optimal performance.

2. Ground Connection (GND Pins): Proper grounding is essential, and all the GND pins of the CC1120RHBR must be connected to the system's ground. This ensures a stable reference for the entire circuit and is critical for the transceiver's functionality.

3. RF Input/Output (RF_P, RF_N Pins): The RF_P and RF_N pins serve as the differential RF input and output. These are the primary connections for the antenna system and may require an RF matching network, depending on the specific application and operating frequency.

4. Digital Communication Interface (SI, SO, SCLK, CSn Pins): The CC1120RHBR is equipped with digital communication interface pins such as SI (Serial Input), SO (Serial Output), SCLK (Serial Clock), and CSn (Chip Select). For SPI connection with a microcontroller or other digital devices, these pins are essential.

5. GPIO Pins (GPIO0, GPIO1, etc.): The General-Purpose Input/Output (GPIO) pins on the CC1120RHBR provide versatile interface options. These pins can be configured for various functionalities based on the application's requirements, such as controlling external components or indicating status.

6. Crystal Oscillator (XOSC_Q1, XOSC_Q2 Pins): An external crystal oscillator is connected through the XOSC_Q1 and XOSC_Q2 pins, which is fundamental for determining the transceiver's operating frequency and stability.

7. Additional Functional Pins (RST, etc.): The CC1120RHBR includes other functional pins like RST for resetting the device. These should be configured as per the application's design, allowing for proper control and management of the transceiver's operations.

8. Decoupling Capacitors and Filtering: Noise reduction and voltage regulation can be achieved by positioning decoupling capacitors close to the power supply pins. Additionally, the RF path may require specific filtering elements to maintain signal integrity.

9. Considerations for PCB Design: When designing the PCB layout for the CC1120RHBR, attention should be given to the routing of RF and digital signals. Ensuring minimal path lengths for RF traces, appropriate impedance matching, and separation of analog and digital sections are crucial for reducing interference and maintaining signal quality.

In conclusion, the CC1120RHBR, as part of the CC1120 series, is an exceptional RF transceiver designed for long-range and low-power applications. Implementing this device involves careful planning of power supply connections, RF interfacing, digital communication setup, and GPIO configurations. Including decoupling capacitors, appropriate filtering components, and a thoughtfully designed PCB is crucial for achieving optimal performance in demanding wireless communication environments.
