lmages are for reference only See Product Specifications

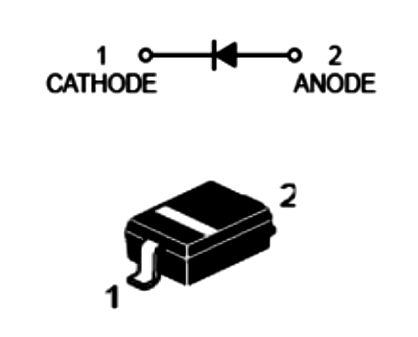

Diodes Incorporated BAT46W-7-F

Part No.:: BAT46W-7-F

Manufacturer:: Diodes Incorporated

Package:: SOD-123

Datasheet:: BAT46W-7-F.pdf

Description:: DIODE SCHOTTKY 100V 150MA SOD123

In Stock:: 2354

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BAT46W-7-F Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
RoHS:
RoHS
Speed:
Small Signal =< 200mA (Io), Any Speed
Diode Type:
Schottky
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
20pF @ 0V, 1MHz
Reverse Recovery Time (trr):
-
Current - Reverse Leakage @ Vr:
2 µA @ 75 V
Voltage - DC Reverse (Vr) (Max):
100 V
Current - Average Rectified (Io):
150mA (DC)
Operating Temperature - Junction:
-55°C ~ 125°C
Voltage - Forward (Vf) (Max) @ If:
450 mV @ 10 mA

BAT46W-7-F this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BAT46W-7-F price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BAT46W-7-F to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BAT46W-7-F information

Views：

BAT46W-7-F Typical application Circuitry

BAT46W-7-F

BAT46W-7-F is a Schottky barrier diode known for its low forward voltage drop and fast switching capabilities, making it an ideal choice for a wide range of applications including power supply, voltage clamping, and high-frequency switching circuits. Let's delve into its application scenarios, parameter features, and a detailed circuit connection for a specific use case.

Application Scenarios

The BAT46W-7-F finds utility in numerous electronic circuits, particularly in power management systems, DC-DC converters, and as a rectifying diode in high-frequency parts of RF circuits.

Parameter Features

- Type: Schottky Barrier Diode

- Reverse Voltage (V_R): 100V

- Forward Current (I_F): 150mA

- Forward Voltage (V_F): Typically 0.38V at I_F = 1mA

- Power Dissipation (P_D): 500mW

- Operating Junction Temperature (T_j): -65°C to +150°C

Specific Circuit Connection: Solar Panel Diode Protection

Solar Panel Diode Protection: In this application, the BAT46W-7-F is utilized to prevent reverse current from flowing back into solar panels during the night or when the panel's voltage is lower than the battery it's charging.

1. Preventing Reverse Current: A BAT46W-7-F is connected in series with the positive output of the solar panel. This orientation allows current to flow from the solar panel to the battery (or load) but blocks current in the opposite direction.

2. Minimizing Voltage Drop: The low forward voltage (V_F) of the BAT46W-7-F is crucial in solar applications to minimize power loss. It ensures that the majority of the power generated by the solar panel is available for charging the battery or powering the load.

3. Enhanced Efficiency: Placing the BAT46W-7-F close to the solar panel's positive terminal helps reduce cable losses and improves the overall efficiency of the power transfer from the solar panel to the load or battery.

4. Temperature Considerations: Given the wide operating temperature range of the BAT46W-7-F, it is well-suited for outdoor applications like solar panels. However, designers should consider the diode's derating in power dissipation at high temperatures to ensure reliability.

Design Considerations

When incorporating the BAT46W-7-F into circuits, several factors must be considered for optimal performance:

- Forward Voltage Impact: While the BAT46W-7-F has a low forward voltage, even small losses in low-voltage applications like solar power systems can be significant. Designers should strive to minimize these losses for maximum efficiency.

- Reverse Leakage Current: Although Schottky diodes like the BAT46W-7-F have higher reverse leakage currents compared to traditional diodes, it's important to evaluate the impact on the application, especially in high-temperature environments.

- Thermal Management: Proper thermal management is essential, considering the diode's power dissipation and operating temperature range. Ensuring adequate heat sinking or air flow can prevent overheating and extend the lifespan of the diode.

In designing circuits with the BAT46W-7-F, addressing these considerations will contribute to the system's reliability and efficiency, especially in energy-sensitive applications like solar power systems.
