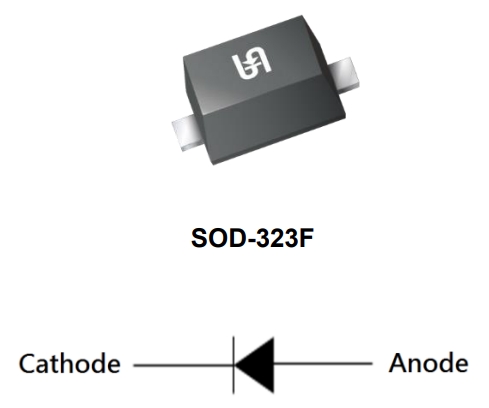

Taiwan Semiconductor Corporation BAS316WS RRG

Part No.:: BAS316WS RRG

Manufacturer:: Taiwan Semiconductor Corporation

Package:: SC-90, SOD-323F

Datasheet:: BAS316WS RRG.pdf

Description:: DIODE GEN PURP 250MA SOD323F

In Stock:: 2115

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BAS316WS RRG Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Standard
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
1.5pF @ 0V, 1MHz
Reverse Recovery Time (trr):
4 ns
Current - Reverse Leakage @ Vr:
1 µA @ 75 V
Voltage - DC Reverse (Vr) (Max):
100 V
Current - Average Rectified (Io):
250mA
Operating Temperature - Junction:
-65°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If:
1.25 V @ 150 mA

BAS316WS RRG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BAS316WS RRG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BAS316WS RRG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BAS316WS RRG information

Views：

BAS316WS RRG Typical application Circuitry

BAS316WS RRG

The BAS316WS RRG is a high-speed switching diode, characterized by its fast switching capabilities and is manufactured by Taiwan Semiconductor Company, Ltd. Let's delve into its features, applications, and circuit design considerations:

1. Fast Switching Device: A standout feature of the BAS316WS RRG is its rapid switching capability, with a switching time of less than 4.0 nanoseconds (ns). Because of this, it is ideal for situations where prompt signal changes are crucial.

2. Surface Mount Device Type: This diode is designed for surface mounting, making it a good fit for compact and densely packed electronic circuits.

3. Moisture Sensitivity Level 1: It has a high level of moisture resistance, which is important for reliability in various environmental conditions.

4. RoHS Compliant and Lead-Free: The BAS316WS RRG adheres to environmental standards, being RoHS compliant and lead-free.

5. Applications: Its fast switching characteristic makes it ideal for high-speed switching applications in various electronic circuits. Digital signal processing is one prominent application where quick state transitions are needed.

When designing a circuit with the BAS316WS RRG, consider the following:

- Voltage and Current Ratings: Ensure the circuit's voltage and current do not exceed the diode's maximum ratings.

- Thermal Management: Due to its high-speed operation, the diode may generate heat, necessitating adequate thermal management in the circuit design.

- Circuit Layout: The layout should minimize parasitic capacitance and inductance for optimal high-speed performance.

For a specific application scenario, let's consider using the BAS316WS RRG in a digital logic circuit:

- Scenario: Use in a digital clock circuit for signal shaping.

- Circuit Connection: Attach the BAS316WS RRG's cathode to the input of a buffer or counter, and its anode to the output of a digital logic gate.

- Considerations: Match the input and output impedance to minimize signal reflection. For signal integrity and noise reduction, use bypass capacitors.

In summary, the BAS316WS RRG is a versatile, high-speed switching diode suitable for various applications requiring rapid signal switching. The key to successful circuit design with this diode lies in respecting its electrical ratings and ensuring proper layout for high-speed operation.
