Texas Instruments ADS8689IPW

Part No.:: ADS8689IPW

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADS8689IPW.pdf

Description:: IC ADC 16BIT SAR 16TSSOP

In Stock:: 3157

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS8689IPW Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
100k
Number of Inputs:
1
Input Type:
Pseudo-Differential, Single Ended
Data Interface:
SPI
Configuration:
PGA-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
1.65V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 125°C (TA)

ADS8689IPW this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS8689IPW price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS8689IPW to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS8689IPW information

Views：

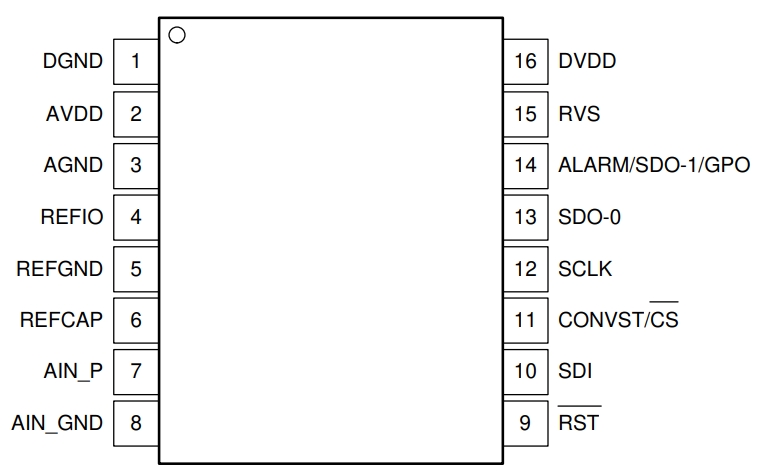

ADS8689IPW Typical application Circuitry

ADS8689IPW

The ADS8689IPW is a high-precision, integrated analog-to-digital converter (ADC) developed by Texas Instruments. It features multiple functionalities including a 16-bit ADC, an internal reference, and a reference buffer. This chip is designed for applications that require precise and high-speed conversion of analog signals to digital data, such as industrial automation, medical instrumentation, and data acquisition systems.

Key Features of the ADS8689IPW:

1. 16-Bit ADC: Offers high precision in analog-to-digital conversion.

2. High-Speed Operation: Suitable for applications that require quick data acquisition.

3. Integrated Reference and Buffer: Comes with an internal reference and reference buffer, enhancing accuracy and simplifying design.

4. SPI Interface: Equipped with a Serial Peripheral Interface (SPI) for communication with microcontrollers or digital systems.

Application Scenario: Industrial Process Monitoring

Circuit Connection Details:

1. Power Supply Connection: Connect the AVDD and DVDD pins of the ADS8689IPW to a stable power source, typically around 5V for AVDD and 3.3V for DVDD.

2. Analog Input: Connect industrial sensors (like temperature or pressure sensors) to the AIN0-AIN3 pins for analog input.

3. Digital Interface Setup: Interface the SCLK (Serial Clock), SDI (Serial Data In), SDO (Serial Data Out), and CS (Chip Select) pins with the respective SPI pins on a microcontroller or digital processor.

4. Reference Voltage: Utilize the internal reference of the ADS8689IPW or connect an external reference voltage to the REF pin, depending on the accuracy requirements.

Design Considerations:

1. Stable Power Source: Ensure consistent and noise-free power supplies for both analog and digital sections.

2. Signal Integrity for Analog Inputs: Implement noise reduction strategies and proper signal routing to maintain signal quality.

3. SPI Communication Reliability: Design a robust SPI communication interface, considering signal integrity and speed requirements.

4. Thermal Management: Manage the thermal load effectively, especially in high-speed or continuous operation scenarios.

Conclusion

The ADS8689IPW is highly suitable for industrial process monitoring due to its 16-bit resolution, high-speed operation, integrated reference and buffer, and SPI interface. Designing circuits with the ADS8689IPW requires careful attention to power supply stability, signal integrity, reliable SPI communication, and thermal management to ensure precise and efficient operation in complex industrial settings.
