Texas Instruments ADS8363SRHBT

Part No.:: ADS8363SRHBT

Manufacturer:: Texas Instruments

Package:: 32-VFQFN Exposed Pad

Datasheet:: ADS8363SRHBT.pdf

Description:: IC ADC 16BIT SAR 32VQFN

In Stock:: 2165

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS8363SRHBT Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
1M
Number of Inputs:
4, 8
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
2
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 5.5V
Voltage-Supply Digital:
2.3V ~ 3.6V, 5V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 125°C

ADS8363SRHBT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS8363SRHBT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS8363SRHBT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS8363SRHBT information

Views：

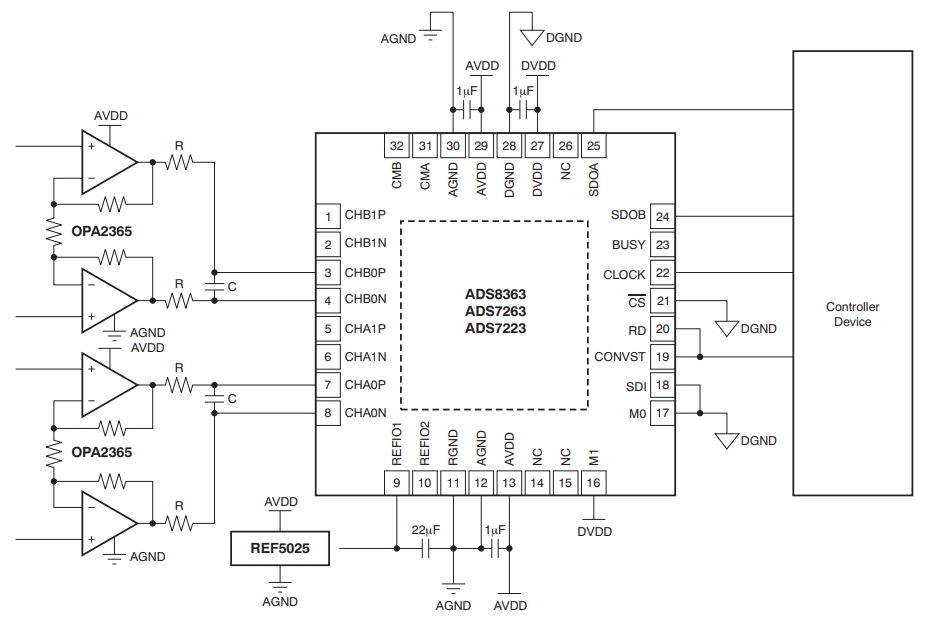

ADS8363SRHBT Typical application Circuitry

ADS8363SRHBT

The ADS8363SRHBT is a dual-channel, 16-bit, high-speed analog-to-digital converter (ADC) developed by Texas Instruments. Applications requiring accurate and simultaneous data gathering from two analog sources are intended for this technology. This ADC is commonly used in scenarios such as motor control, power quality measurement, and data acquisition systems.

Key Features of the ADS8363SRHBT:

1. Dual-Channel ADC: The ADS8363SRHBT offers two independent analog input channels for simultaneous data acquisition.

2. 16-Bit Resolution: offers a high degree of accuracy and precision while converting analog to digital.

3. High-Speed Operation: Suitable for applications requiring fast sampling rates.

4. Serial Interface: has a Serial Peripheral Interface (SPI) for digital systems or microcontroller connectivity.

Application Scenario: Power Quality Measurement System

Circuit Connection Details:

1. Power Supply Connection: Connect the AVDD and DVDD pins of the ADS8363SRHBT to a stable power source, typically around 5V for AVDD and 3.3V for DVDD.

2. Analog Inputs: Connect two different power quality sensors to the AIN0 and AIN1 pins for dual-channel monitoring.

3. Digital Interface Setup: Interface the SCLK (Serial Clock), SDI (Serial Data In), SDO (Serial Data Out), and CS (Chip Select) pins with the corresponding SPI pins on a microcontroller or digital processor.

4. Reference Voltage: Apply a stable reference voltage to the VREF pin for accurate ADC operation.

Design Considerations:

1. Stable Power Source: Ensure a consistent and noise-free power supply for both analog and digital sections.

2. Signal Integrity for Analog Inputs: Implement appropriate noise reduction and proper signal routing to maintain the integrity of the sensor signals.

3. SPI Communication Reliability: Design a robust SPI communication interface, considering factors like signal integrity, speed, and compatibility with the microcontroller.

4. Thermal Management: Manage the thermal load effectively, especially in high-speed or continuous operation scenarios.

Conclusion

The ADS8363SRHBT is highly suitable for power quality measurement systems due to its dual-channel capability, 16-bit resolution, high-speed operation, and SPI interface. When designing circuits with the ADS8363SRHBT, it's crucial to focus on aspects such as power supply stability, signal integrity, reliable SPI communication, and thermal management to ensure accurate and efficient operation in demanding measurement applications.
