Texas Instruments ADS8320EB/2K5

Part No.:: ADS8320EB/2K5

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: ADS8320EB/2K5.pdf

Description:: IC ADC 16BIT SAR 8VSSOP

In Stock:: 2904

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS8320EB/2K5 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
microPOWER™
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
100k
Number of Inputs:
1
Input Type:
Pseudo-Differential, Single Ended
Data Interface:
SPI
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 3.3V, 5V
Voltage-Supply Digital:
2.7V ~ 3.3V, 5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

ADS8320EB/2K5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS8320EB/2K5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS8320EB/2K5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS8320EB/2K5 information

Views：

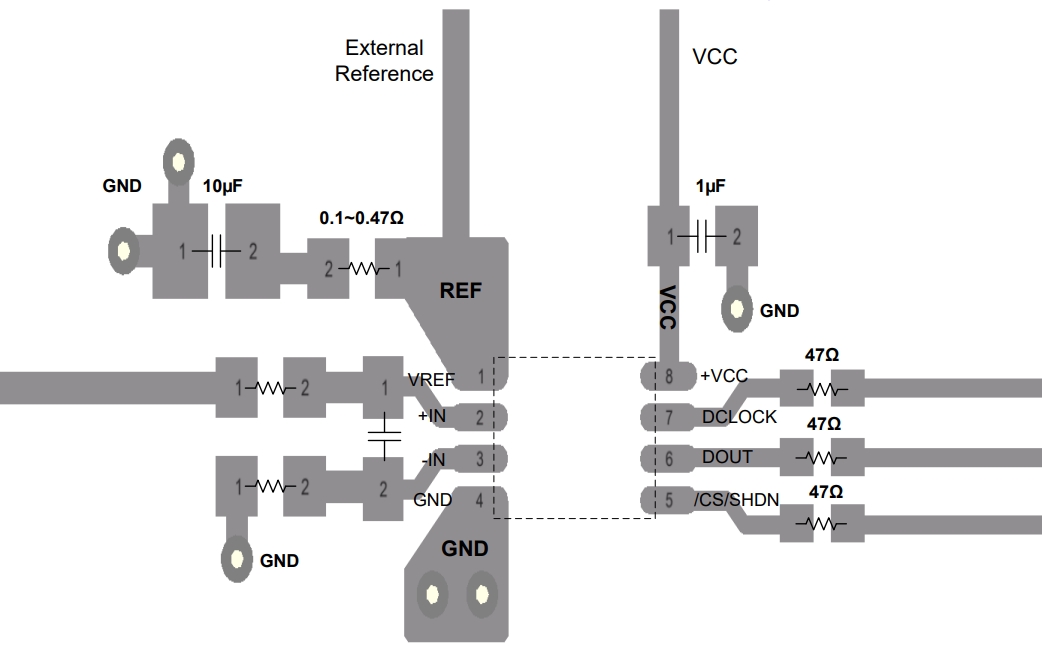

ADS8320EB/2K5 Typical application Circuitry

ADS8320EB 2K5

The ADS8320EB/2K5 is a high-precision, low-power, 16-bit analog-to-digital converter (ADC) developed by Texas Instruments. This chip is specifically designed for applications that require accurate and high-resolution conversion of analog signals to digital data, such as in medical devices, industrial instrumentation, and precision data acquisition systems.

Key Features of the ADS8320EB/2K5:

1. 16-Bit Resolution: Provides high precision in analog-to-digital conversion.

2. Low Power Consumption: Ideal for battery-powered and power-sensitive applications due to its efficient power usage.

3. Single-Supply Operation: Can operate with a single power supply, typically ranging from 2.7V to 5.5V.

4. Serial Interface: Equipped with a Serial Peripheral Interface (SPI) for communication with microcontrollers or digital systems.

Application Scenario: Medical Device for Patient Monitoring

Circuit Connection Details:

1. Power Supply Connection: Connect the VDD pin of the ADS8320EB/2K5 to a stable power source, typically within the range of 2.7V to 5.5V.

2. Analog Input: Attach a medical sensor output (such as a heart rate monitor sensor) to the analog input pin (AIN) of the ADC.

3. Digital Interface Setup: Interface the SCLK (Serial Clock), SDI (Serial Data In), and SDO (Serial Data Out) pins with the respective SPI pins on a microcontroller or digital processor.

4. Grounding and Decoupling: Ensure proper grounding for the AGND pin and use decoupling capacitors near the power supply pins to minimize noise.

Design Considerations:

1. Stable Power Source: A consistent and noise-free power supply is crucial for accurate ADC performance.

2. Signal Integrity: Implement proper filtering and shielding on the analog input to maintain signal quality, especially important in sensitive medical applications.

3. SPI Communication Reliability: Establish a reliable SPI communication, considering factors like signal integrity, speed, and compatibility with the processing unit.

4. Electromagnetic Interference (EMI) Mitigation: Design the circuit to minimize EMI effects, critical in medical environments.

Conclusion

The ADS8320EB/2K5 is highly effective in medical patient monitoring systems due to its 16-bit resolution, low power consumption, and SPI interface, which enable precise and efficient data acquisition. When designing circuits with the ADS8320EB/2K5, focusing on power supply stability, signal integrity, reliable SPI communication, and EMI mitigation is essential to ensure accurate and reliable performance in sensitive medical applications.
