Texas Instruments ADS8320EB/250G4

Part No.:: ADS8320EB/250G4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: ADS8320EB/250G4.pdf

Description:: IC ADC 16BIT SAR 8VSSOP

In Stock:: 3140

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS8320EB/250G4 Specifications

Packaging:
Tape & Reel (TR)
Series:
microPOWER™
Product Status:
Discontinued at Mosen
Number of Bits:
16
Sampling Rate(PerSecond):
100k
Number of Inputs:
1
Input Type:
Pseudo-Differential, Single Ended
Data Interface:
SPI
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

ADS8320EB/250G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS8320EB/250G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS8320EB/250G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS8320EB/250G4 information

Views：

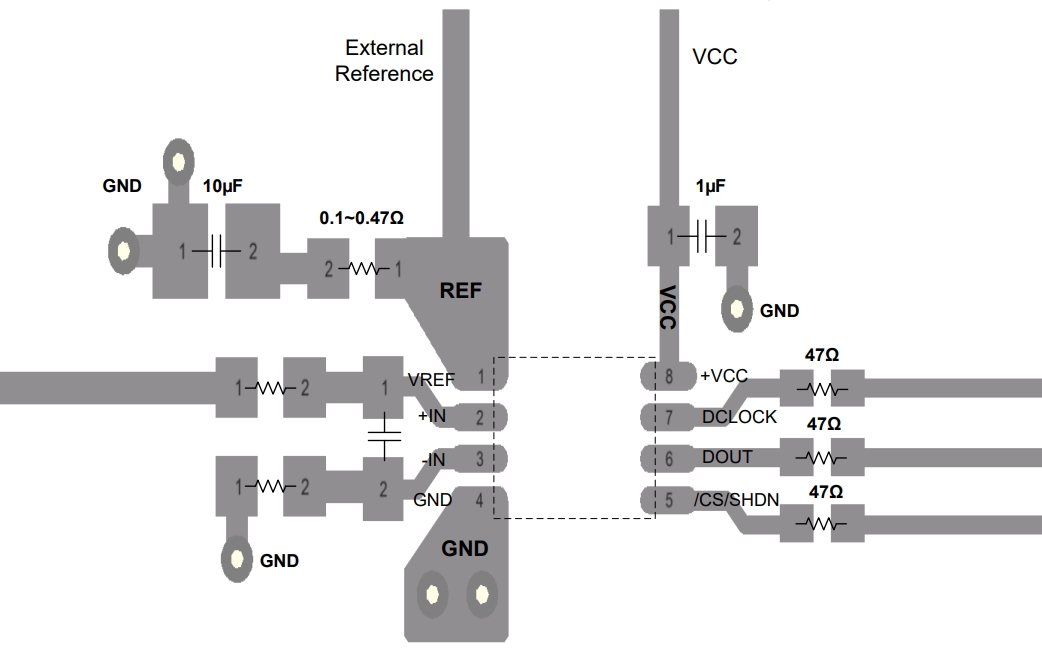

ADS8320EB/250G4 Typical application Circuitry

ADS8320EB 250G4

Texas Instruments created the ADS8320EB/250G4, a 16-bit analog-to-digital converter (ADC) with precision and low power consumption. It is designed for applications that require accurate and high-resolution digital representation of analog signals, such as in data acquisition systems, medical instrumentation, and industrial control systems.

Key Features of the ADS8320EB/250G4:

1. 16-Bit Resolution: Offers high precision in analog-to-digital conversion.

2. Low Power Consumption: Ideal for battery-operated and power-sensitive applications.

3. Single-Supply Operation: Usually operates between 2.7 and 5.5 volts using a single power supply.

4. Serial Interface: Features a Serial Peripheral Interface (SPI) for communication with microcontrollers or digital processors.

Application Scenario: Medical Instrumentation System

Circuit Connection Details:

1. Power Supply Connection: Connect the VDD pin of the ADS8320EB/250G4 to a stable power source within the range of 2.7V to 5.5V.

2. Analog Input: Attach the output of a medical sensor (such as a heart rate or blood pressure sensor) to the analog input pin (AIN) of the ADC.

3. Digital Interface Setup: Interface the SCLK (Serial Clock), SDI (Serial Data In), SDO (Serial Data Out), and CS (Chip Select) pins with the corresponding SPI pins on a microcontroller or digital processor.

4. Grounding and Decoupling: Ensure proper grounding of the AGND pin and use decoupling capacitors near the power supply pin to minimize noise.

Design Considerations:

1. Stable Power Source: A consistent and noise-free power supply is crucial for accurate ADC performance.

2. Signal Integrity: Implement proper filtering and shielding on the analog input to maintain signal integrity, especially important in medical applications.

3. SPI Communication Reliability: Establish a reliable SPI communication, considering factors like signal integrity, speed, and compatibility with the processing unit.

4. Electromagnetic Interference (EMI) Considerations: In medical environments, be mindful of EMI and design the circuit to minimize its effects.

Conclusion

The ADS8320EB/250G4 is highly suitable for medical instrumentation systems, offering 16-bit resolution, low power consumption, and SPI interface. When designing circuits with the ADS8320EB/250G4, it's crucial to consider aspects like power supply stability, signal integrity, reliable SPI communication, and EMI mitigation to ensure accurate and reliable performance in sensitive medical applications.
