Texas Instruments ADS7950SBRGER

Part No.:: ADS7950SBRGER

Manufacturer:: Texas Instruments

Package:: 24-VFQFN Exposed Pad

Datasheet:: ADS7950SBRGER.pdf

Description:: IC ADC 12BIT SAR 24VQFN

In Stock:: 2866

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS7950SBRGER Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
microPOWER™
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
4
Input Type:
Single Ended
Data Interface:
SPI
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.25V
Voltage-Supply Digital:
1.7V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 125°C

ADS7950SBRGER this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS7950SBRGER price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS7950SBRGER to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS7950SBRGER information

Views：

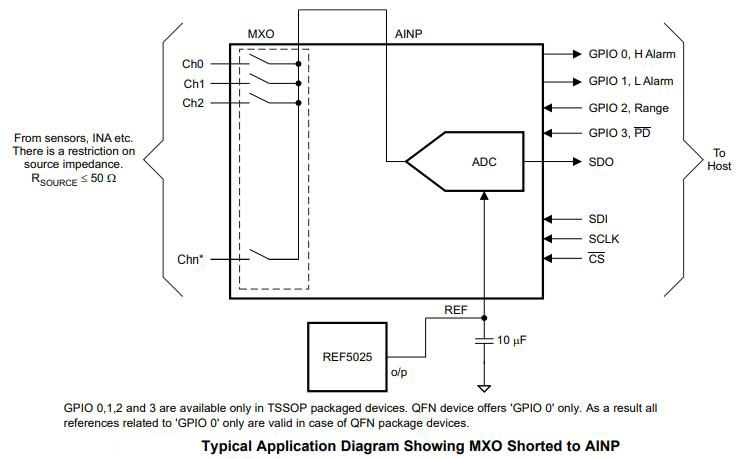

ADS7950SBRGER Typical application Circuitry

ADS7950SBRGER is an analog-to-digital converter (ADC) chip manufactured by Texas Instruments. This device is used in a variety of applications where it is necessary to process analog signals and convert them into digital ones.

1. Functionality of ADS7950SBRGER: This device is a 16-channel, 12-bit, micro-power, analog-to-digital converter (ADC) with a high-speed, serial peripheral interface (SPI) that operates from a single 2.7-V to 5.5-V power supply.

2. Application Scenarios: The ADS7950SBRGER is used in many applications, including data acquisition systems, industrial automation, portable instrumentation, and medical instrumentation.

3. Key Parameters: It features a low power consumption of just 1.25mW at 1 MSPS with a 3V supply. The device also comes with an internal 2.5V reference, but an external reference can be chosen if needed. The device operates with a maximum sample rate of 1 MSPS.

4. Circuit Connection (example in a Data Acquisition System):

- Power Supply: Connect the power supply to pin VDD (pin 1), and set it between 2.7V to 5.5V. Additionally, your circuit's ground (pin 2) needs to be linked to GND (pin 2).

- Analog Input Channels: The device offers 16 single-ended input channels. For instance, if you want to measure the voltage from a sensor, you would connect it to any of the analog input channels, say AIN0 (pin 3).

- SPI Interface: SPI communication involves SCLK (pin 16), DIN (pin 17), and DOUT (pin 18). The proper SPI Clock, SPI Data Input, and SPI Data Output pins on your microcontroller must be linked to each of them.

- Chip Select (CS): CS (pin 19) can be used for device selection when multiple devices are in use. Connect it to a GPIO pin of your microcontroller and pull it low when the device is being used.

5. Considerations during Circuit Design: Several factors need to be considered in the circuit design with ADS7950SBRGER. These include the power supply noise, analog input range, reference voltage, communication interface compatibility, and the layout for analog and digital grounds.

The ADS7950SBRGER is a flexible ADC that provides reliable performance in converting analog signals to digital, suitable for a variety of applications.
