Texas Instruments ADS7828EIPWRQ1

Part No.:: ADS7828EIPWRQ1

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADS7828EIPWRQ1.pdf

Description:: IC ADC 12BIT SAR 16TSSOP

In Stock:: 4390

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS7828EIPWRQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
50k
Number of Inputs:
8
Input Type:
Differential, Single Ended
Data Interface:
I²C
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 3.6V, 5V
Voltage-Supply Digital:
2.7V ~ 3.6V, 5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

ADS7828EIPWRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS7828EIPWRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS7828EIPWRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS7828EIPWRQ1 information

Views：

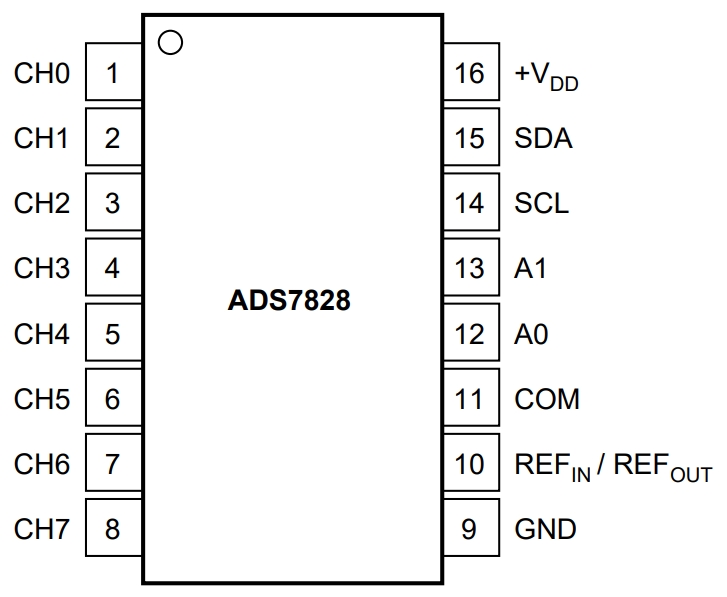

ADS7828EIPWRQ1 Typical application Circuitry

ADS7828EIPWRQ1

The ADS7828EIPWRQ1 is an automotive-grade, low-power, 12-bit, 8-channel analog-to-digital converter (ADC) with an I2C-compatible interface, designed by Texas Instruments. It is specifically tailored for automotive applications that require multiple-channel data acquisition with moderate resolution, such as in engine control units, battery management systems, and automotive sensor monitoring.

Key Features of the ADS7828EIPWRQ1:

1. Multi-Channel ADC: The ADS7828EIPWRQ1 offers 8 channels, enabling the simultaneous sampling of various analog signals.

2. 12-Bit Resolution: Provides sufficient resolution for a wide range of automotive applications, balancing precision and acquisition speed.

3. I2C Interface: Equipped with an I2C-compatible serial interface, allowing easy integration with microcontrollers and digital systems.

4. Low Power Consumption: Its efficiency in power usage makes it suitable for automotive applications where power management is critical.

Application Scenario: Automotive Sensor Monitoring System

Circuit Connection Details:

1. Power Supply Connection: Connect the VDD pin of the ADS7828EIPWRQ1 to a stable automotive power source, typically between 2.7V and 5.5V.

2. Sensor Inputs: Attach various automotive sensors (like temperature, pressure, or fluid level sensors) to the AIN0 to AIN7 pins for multi-channel data acquisition.

3. I2C Communication Setup: Interface the SCL and SDA pins with the corresponding I2C pins on a microcontroller, including pull-up resistors on these lines.

4. Reference Voltage Application: For greater accuracy, connect an external reference voltage to the VREF pin, differing from the internal reference.

Design Considerations:

1. Stable Power Supply: Ensure a noise-free and stable power supply is provided, considering the fluctuating nature of automotive power systems.

2. Signal Integrity on Analog Inputs: Implement noise reduction strategies on the analog input lines to minimize interference from other automotive systems.

3. Reliable I2C Communication: Configure robust I2C communication, factoring in bus length, capacitance, and data rate for effective data transfer.

4. Analog Input Voltage Range: Make sure that the analog input voltages stay within the range defined by the reference voltage to maintain ADC accuracy.

Conclusion

The ADS7828EIPWRQ1 is especially effective for automotive sensor monitoring systems due to its 8-channel capacity, 12-bit resolution, I2C interface, and low power consumption. When designing circuits with the ADS7828EIPWRQ1, attention to power supply stability, signal integrity, I2C communication reliability, and the handling of the analog input range is crucial to ensure precise and efficient operation in automotive environments.
