Texas Instruments ADS7828EB/2K5G4

Part No.:: ADS7828EB/2K5G4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADS7828EB/2K5G4.pdf

Description:: IC ADC 12BIT SAR 16TSSOP

In Stock:: 2055

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS7828EB/2K5G4 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Discontinued at Mosen
Number of Bits:
12
Sampling Rate(PerSecond):
50k
Number of Inputs:
8
Input Type:
Differential, Single Ended
Data Interface:
I²C
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 3.6V, 5V
Voltage-Supply Digital:
2.7V ~ 3.6V, 5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

ADS7828EB/2K5G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS7828EB/2K5G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS7828EB/2K5G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS7828EB/2K5G4 information

Views：

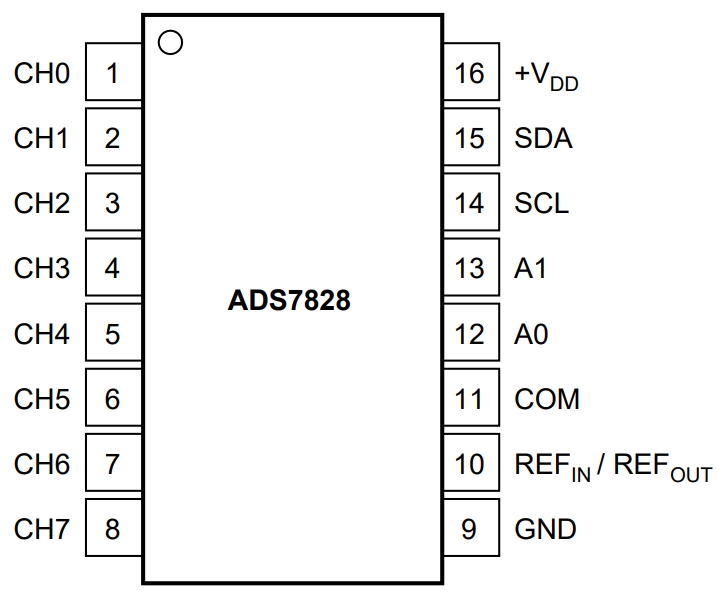

ADS7828EB/2K5G4 Typical application Circuitry

ADS7828EB 2K5G4

The ADS7828EB/2K5G4 is a low-power, 12-bit, 8-channel analog-to-digital converter (ADC) with an I2C-compatible interface, developed by Texas Instruments. This ADC is ideal for applications requiring multiple-channel data acquisition with moderate resolution, such as in industrial control systems, battery-powered devices, and data logging systems.

Key Features of the ADS7828EB/2K5G4:

1. Multi-Channel ADC: The ADS7828EB/2K5G4 features 8 channels, allowing for simultaneous sampling of multiple analog signals.

2. Moderate Resolution: Offers 12-bit resolution, providing a good balance between data precision and speed.

3. I2C Interface: Compatible with I2C communication, facilitating easy integration with microcontrollers and digital systems.

4. Low Power Consumption: Its efficiency in power usage makes it suitable for battery-operated and portable devices.

Application Scenario: Industrial Control System:

Circuit Connection Details:

1. Power Supply Setup: Connect the VDD pin of the ADS7828EB/2K5G4 to a stable power source, typically 5V or 3.3V, depending on the system requirements.

2. Analog Signal Inputs: Attach up to 8 different analog sensors (like temperature, pressure, or humidity sensors) to the AIN0 to AIN7 pins for multi-channel data acquisition.

3. I2C Communication Configuration: Interface the SCL and SDA pins with the corresponding I2C pins of a microcontroller, ensuring proper pull-up resistors are used on these lines.

4. Reference Voltage Connection: Apply a precise reference voltage to the VREF pin if higher accuracy is required than the default internal reference.

Design Considerations:

1. Stable Power Source: Ensure a clean and stable power supply for accurate ADC operation.

2. Signal Integrity: Minimize noise on the analog input lines, especially in industrial environments, using proper shielding and grounding techniques.

3. I2C Communication Reliability: Implement a robust I2C communication protocol, considering bus capacitance and data rate for reliable data transfer.

4. Analog Input Range: Ensure that the analog input voltages do not exceed the reference voltage to maintain ADC accuracy.

Conclusion:

The ADS7828EB/2K5G4 is particularly suitable for multi-channel data acquisition in industrial control systems due to its 8-channel capability, 12-bit resolution, I2C interface, and low power consumption. When designing circuits with the ADS7828EB/2K5G4, it's important to consider factors like power supply stability, signal integrity, I2C communication reliability, and analog input range to ensure precise and efficient data acquisition.
