Texas Instruments ADS7828E/250G4

Part No.:: ADS7828E/250G4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADS7828E/250G4.pdf

Description:: IC ADC 12BIT SAR 16TSSOP

In Stock:: 3541

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS7828E/250G4 Specifications

Packaging:
Tape & Reel (TR),Bulk
Series:
-
Product Status:
Discontinued at Mosen
Number of Bits:
12
Sampling Rate(PerSecond):
50k
Number of Inputs:
8
Input Type:
Differential, Single Ended
Data Interface:
I²C
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 3.6V, 5V
Voltage-Supply Digital:
2.7V ~ 3.6V, 5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

ADS7828E/250G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS7828E/250G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS7828E/250G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS7828E/250G4 information

Views：

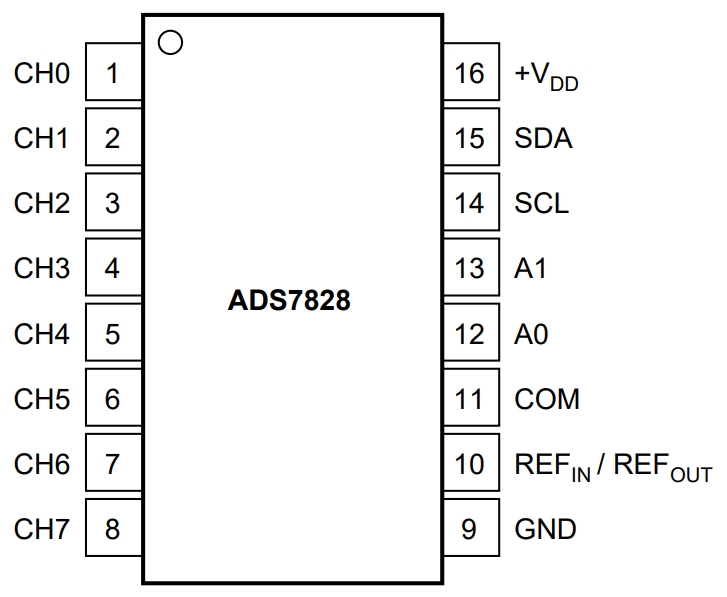

ADS7828E/250G4 Typical application Circuitry

ADS7828E 250G4

The ADS7828E/250G4 is a low-power, 12-bit, 8-channel analog-to-digital converter (ADC) with an I2C-compatible interface, developed by Texas Instruments. This ADC is designed for applications that require multiple-channel data acquisition with moderate resolution, such as in industrial control systems, battery-powered devices, remote sensors, and data logging systems.

Key Features of the ADS7828E/250G4:

1. Multi-Channel ADC: The ADS7828E/250G4 offers 8 channels, enabling simultaneous sampling of multiple analog inputs.

2. Moderate Resolution: It provides a 12-bit resolution, balancing precision and data acquisition speed.

3. I2C Interface: Equipped with an I2C-compatible serial interface for easy integration with microcontrollers and digital systems.

4. Low Power Consumption: Efficient in terms of power usage, suitable for battery-operated and portable devices.

Application Scenario: Industrial Sensor Monitoring System

Circuit Connection Details:

1. Power Supply Setup: Connect the VDD pin of the ADS7828E/250G4 to a stable power source, typically within the range of 2.7V to 5.5V, depending on system requirements.

2. Sensor Input Connections: Attach industrial sensors such as temperature, pressure, or flow sensors to the AIN0 to AIN7 pins for multi-channel data acquisition.

3. I2C Communication Configuration: Interface the SCL and SDA pins with the corresponding I2C pins on a microcontroller, including pull-up resistors on these lines.

4. Reference Voltage Application: Connect an external reference voltage to the VREF pin if greater accuracy is desired than the internal reference voltage.

Design Considerations:

1. Stable Power Source: Ensure a clean and stable power supply for accurate ADC functioning.

2. Signal Integrity on Analog Inputs: Implement noise reduction techniques on the analog inputs to minimize interference, especially in industrial environments.

3. Reliable I2C Communication: Ensure robust I2C communication, considering factors such as bus length, capacitance, and data rate for effective data transfer.

4. Input Voltage Range Management: Make sure that the analog input voltages do not exceed the range defined by the reference voltage to maintain ADC accuracy.

Conclusion

The ADS7828E/250G4 is highly suitable for multi-channel data acquisition in industrial sensor monitoring systems due to its 8-channel capability, 12-bit resolution, I2C interface, and low power consumption. In designing circuits with the ADS7828E/250G4, attention to power supply quality, signal integrity, I2C communication reliability, and proper handling of the analog input range is crucial to ensure precise and efficient operation.
