Texas Instruments ADS4229IRGCR

Part No.:: ADS4229IRGCR

Manufacturer:: Texas Instruments

Package:: 64-VFQFN Exposed Pad

Datasheet:: ADS4229IRGCR.pdf

Description:: IC ADC 12BIT PIPELINED 64VQFN

In Stock:: 3730

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS4229IRGCR Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
250M
Number of Inputs:
2
Input Type:
Differential
Data Interface:
LVDS - Parallel, Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
2
Architecture:
Pipelined
Reference Type:
Internal
Voltage-Supply Analog:
1.7V ~ 1.9V
Voltage-Supply Digital:
1.7V ~ 1.9V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

ADS4229IRGCR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS4229IRGCR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS4229IRGCR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS4229IRGCR information

Views：

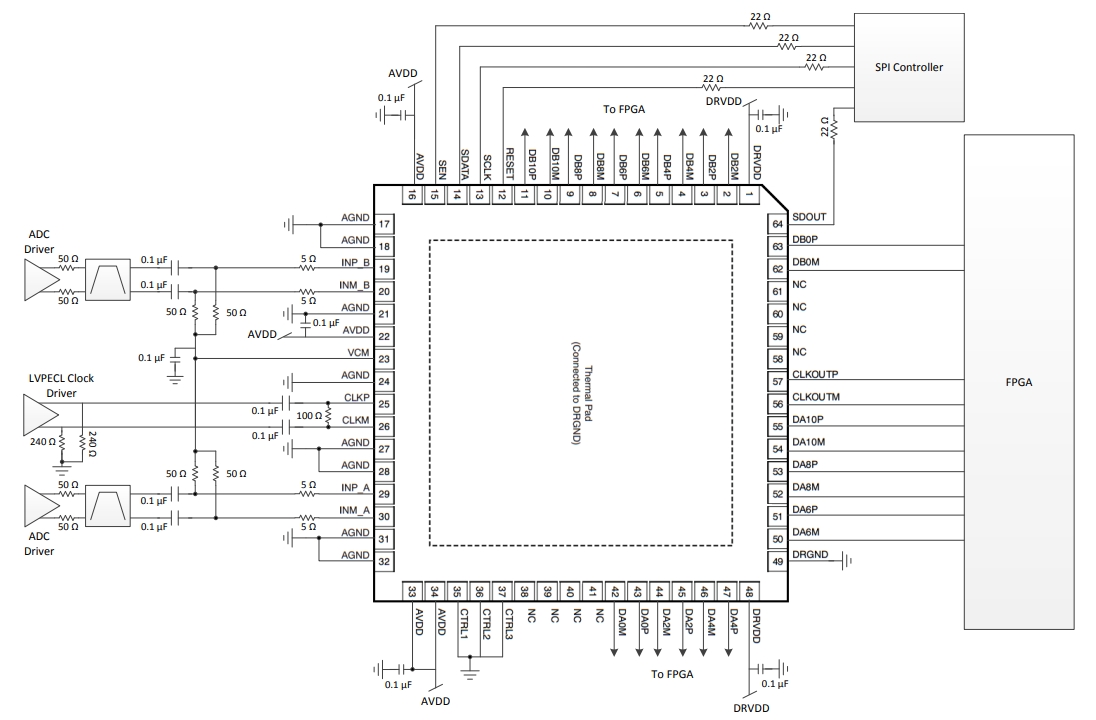

ADS4229IRGCR Typical application Circuitry

ADS4229IRGCR

Texas Instruments has created a high-speed, dual-channel analog-to-digital converter (ADC) called the ADS4229IRGCR. It is known for its fast sampling rate and high resolution, making it particularly suitable for applications like wireless communication, radar systems, signal intelligence, and data acquisition systems where rapid signal processing is crucial.

Key Features of the ADS4229IRGCR:

1. Dual-Channel ADC: The ADS4229IRGCR features two channels, allowing simultaneous data acquisition.

2. High Sampling Rate: It offers a maximum sampling rate of up to 250 MSPS (Mega Samples Per Second), enabling it to handle high-speed signals.

3. High Resolution: With a 12-bit resolution, this ADC provides a balance between high-speed operation and resolution.

4. Low Power Consumption: Efficient in terms of power, making it ideal for systems where power efficiency is a priority.

Application Scenario: Radar Signal Processing

Circuit Connection Details:

1. Power Supply Setup: Connect the AVDD, DRVDD, and OVDD pins of the ADS4229IRGCR to a stable power source, typically 1.8V for DRVDD and OVDD, and 3.3V for AVDD.

2. Analog Signal Input: Attach the radar's analog signal outputs to the AINP and AINN pins for channel A and B.

3. Clock Input Configuration: Provide a high-quality clock signal to the CLK+ and CLK- pins to synchronize the data sampling.

4. Digital Output Interface: Connect the DOUTA+, DOUTA-, DOUTB+, and DOUTB- pins to the corresponding inputs of a digital signal processor (DSP) or microcontroller for signal processing.

Design Considerations:

1. Stable Power Source: Ensure the power supply is stable and free of noise to maintain ADC accuracy.

2. Clock Signal Quality: The quality of the clock signal is crucial for maintaining the integrity and timing of the data conversion.

3. Signal Integrity: Use proper impedance matching and shielding techniques to minimize signal degradation and noise.

4. Thermal Management: Manage the thermal load of the ADC, as high-speed operation can generate significant heat.

Conclusion

The ADS4229IRGCR is well-suited for high-speed applications like radar signal processing due to its dual-channel configuration, high sampling rate, 12-bit resolution, and low power consumption. Designing with the ADS4229IRGCR requires careful consideration of power supply stability, clock signal quality, signal integrity, and thermal management to ensure optimal performance in demanding applications.
