Texas Instruments ADS1672IPAG

Part No.:: ADS1672IPAG

Manufacturer:: Texas Instruments

Package:: 64-TQFP

Datasheet:: ADS1672IPAG.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 64TQFP

In Stock:: 3337

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1672IPAG Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
625k
Number of Inputs:
1
Input Type:
Differential
Data Interface:
LVDS - Serial, SPI
Configuration:
ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
2.7V ~ 3.3V
Features:
-
Operating Temperature:
-40°C ~ 85°C

ADS1672IPAG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1672IPAG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1672IPAG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1672IPAG information

Views：

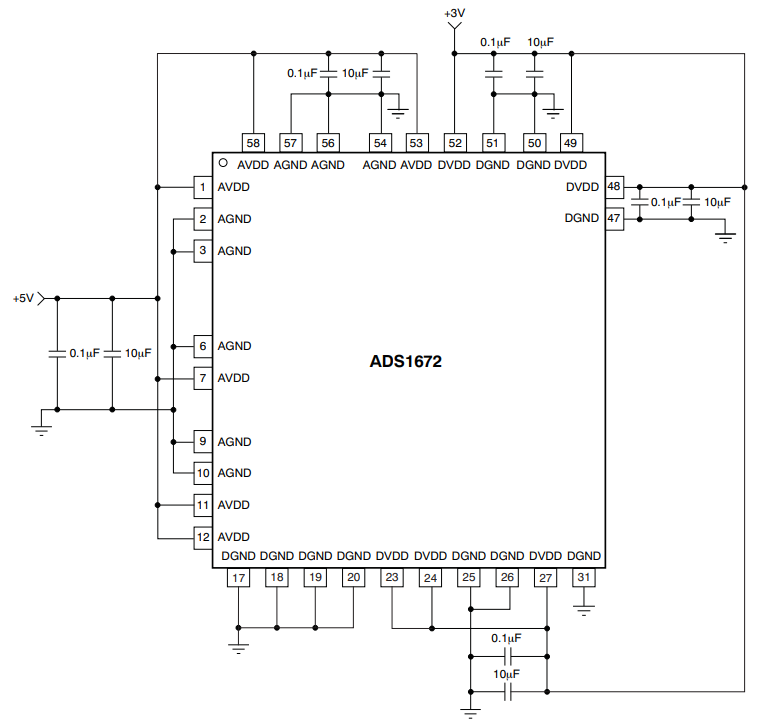

ADS1672IPAG Typical application Circuitry

The ADS1672IPAG is a high-performance, 625-kSPS, 24-bit analog-to-digital converter (ADC) with integrated PGA and internal reference by Texas Instruments. It is suitable for demanding high-precision applications such as seismic and energy exploration, medical imaging, and test and measurement systems. Here is a general overview of how to connect the ADS1672IPAG:

1. Power Supply: The ADS1672IPAG has various power supply pins including AVDD (analog power), DVDD (digital power), and IOVDD (I/O voltage supply). Connect these pins to the appropriate power supply as per the datasheet's specifications.
2. Analog Inputs: The ADS1672IPAG has one differential analog input pair, AINP and AINM. Connect these to the analog signal you wish to digitize.
3. Reference Inputs/Outputs: While the device has an internal reference, it can also accept an external reference through the REFIO pin if higher precision is required.
4. Digital Interface: The ADS1672IPAG communicates through a SPI interface for data transfer, consisting of CS (chip select), DIN (data in), DOUT (data out), and SCLK (serial clock) pins.
5. Clock Input: An external clock can be provided through the CLKIN pin if required, though the ADS1672IPAG has a built-in oscillator that serves as the default clock source.
6. Reset and Start Pins: The RESET and START pins are used to reset the device and to initiate or halt the data conversion process respectively.
7. Decoupling Capacitors: It's important to use decoupling capacitors close to the power supply pins to filter out any noise or sudden changes in voltage, as is standard with high-precision ADCs.
Please refer to the ADS1672IPAG datasheet for detailed information and specific guidelines for your application. The datasheet will provide comprehensive specifications, potential limitations, and detailed application circuit diagrams. Always follow the datasheet's recommendations when designing your circuit.
