Texas Instruments ADS1258IRTCR

Part No.:: ADS1258IRTCR

Manufacturer:: Texas Instruments

Package:: 48-VFQFN Exposed Pad

Datasheet:: ADS1258IRTCR.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 48VQFN

In Stock:: 2686

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1258IRTCR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
125k
Number of Inputs:
8, 16
Input Type:
Differential, Single Ended
Data Interface:
SPI
Configuration:
MUX-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 105°C

ADS1258IRTCR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1258IRTCR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1258IRTCR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1258IRTCR information

Views：

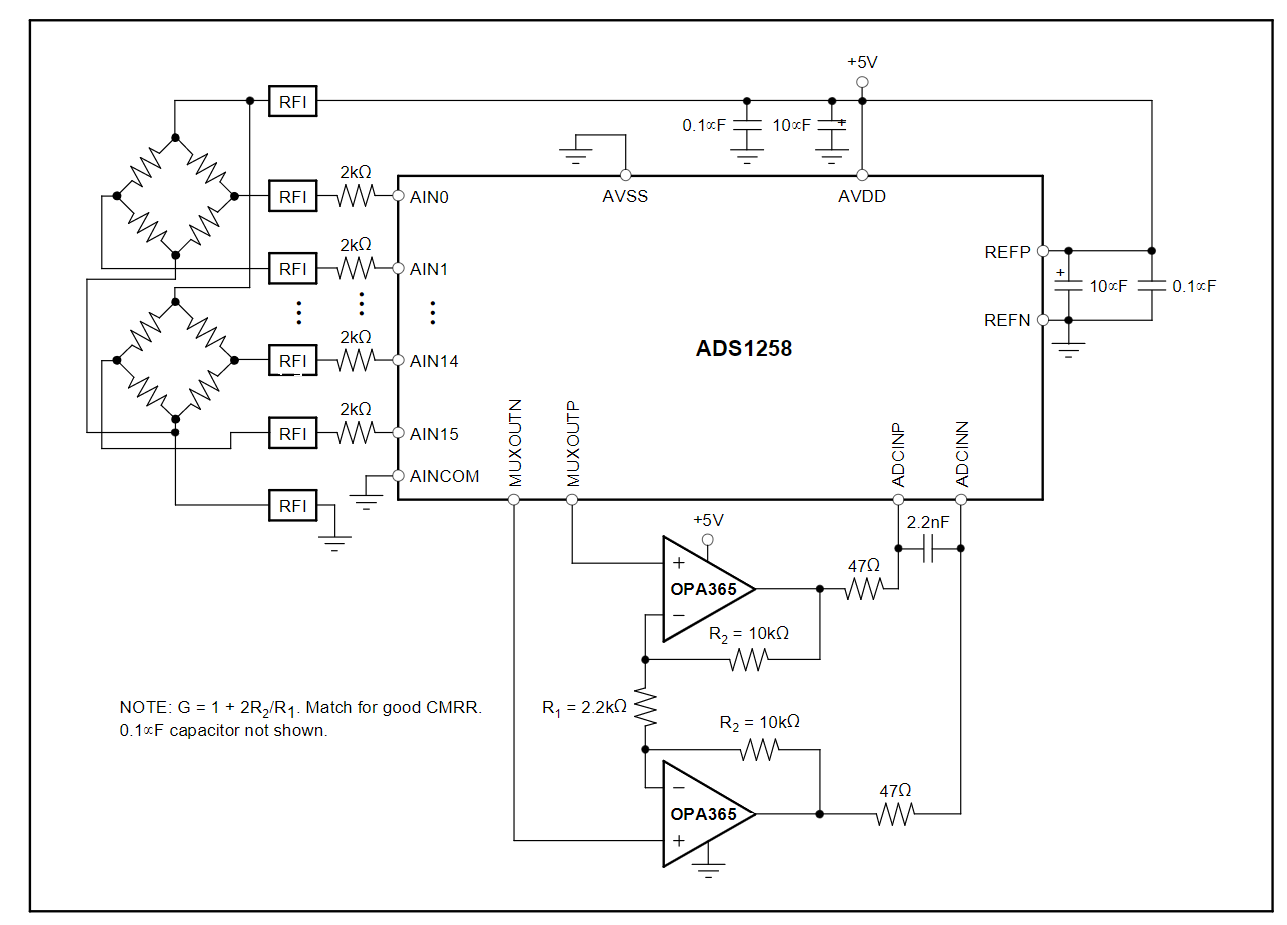

ADS1258IRTCR Typical application Circuitry

ADS1258IRTCR

The ADS1258IRTCR is a 16-Channel, 24-bit analog-to-digital converter (ADC) developed by Texas Instruments. Here's a guide on wiring the ADS1258IRTCR accurately, right down to each pin.

1. Power Supply: Connect VDD (Pin 23) to a 2.7V to 5.25V power source and VSS (Pin 24) to ground. The digital supply voltage DVDD (Pin 21) should be connected to a 2.7V to 5.25V power source, and DGND (Pin 22) should be tied to ground.

2. Analog Input Channels: The ADS1258IRTCR has 16 analog input channels, AIN0 through AIN15 (Pins 1 to 16). These can be connected to your respective signal sources. Be cautious about the input signal ranges as mentioned in the data sheet.

3. Reference Voltage Inputs: Connect the REF IN+ (Pin 18) and REF IN- (Pin 17) pins to an external reference voltage as required by your application.

4. Serial Interface: The serial communication interface consists of the CS (Chip Select, Pin 20), DIN (Data In, Pin 19), OUT/DRY (Data Out/Data Ready, Pin 25), and SCLK (Serial Clock, Pin 26) pins. These pins should be connected to the corresponding pins of your microcontroller or another digital device for data communication.

5. Reset Pin: RESET (Pin 27) is an input pin and can be used to initialize the ADS1258IRTCR to its default state.

6. Start Pin: START (Pin 28) initiates a new conversion when using the ADS1258IRTCR in the single-conversion mode. In the continuous-conversion mode, this pin is generally kept low.

7. Clock Signal: If you are using an external clock, it can be fed into the CL KIN (Pin 29). 8. Clock Output: CLOUT (Pin 30) outputs the internal clock signal, which can be used by other devices if needed.

Remember that this is a general guide for wiring the ADS1258IRTCR, and your specific application could necessitate a different configuration. Always consult the official data sheet for thorough information about each pin and how it should be used in your design. Also, ensure you incorporate appropriate bypassing and decoupling capacitors as suggested in the data sheet for the ADS1258IRTCR.
