Texas Instruments ADS124S06IRHBR

Part No.:: ADS124S06IRHBR

Manufacturer:: Texas Instruments

Package:: 32-VFQFN Exposed Pad

Datasheet:: ADS124S06IRHBR.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 32VQFN

In Stock:: 2717

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS124S06IRHBR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
4k
Number of Inputs:
6
Input Type:
Single Ended
Data Interface:
SPI
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
0:1
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 3.6V
Features:
PGA
Operating Temperature:
-50°C ~ 125°C

ADS124S06IRHBR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS124S06IRHBR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS124S06IRHBR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS124S06IRHBR information

Views：

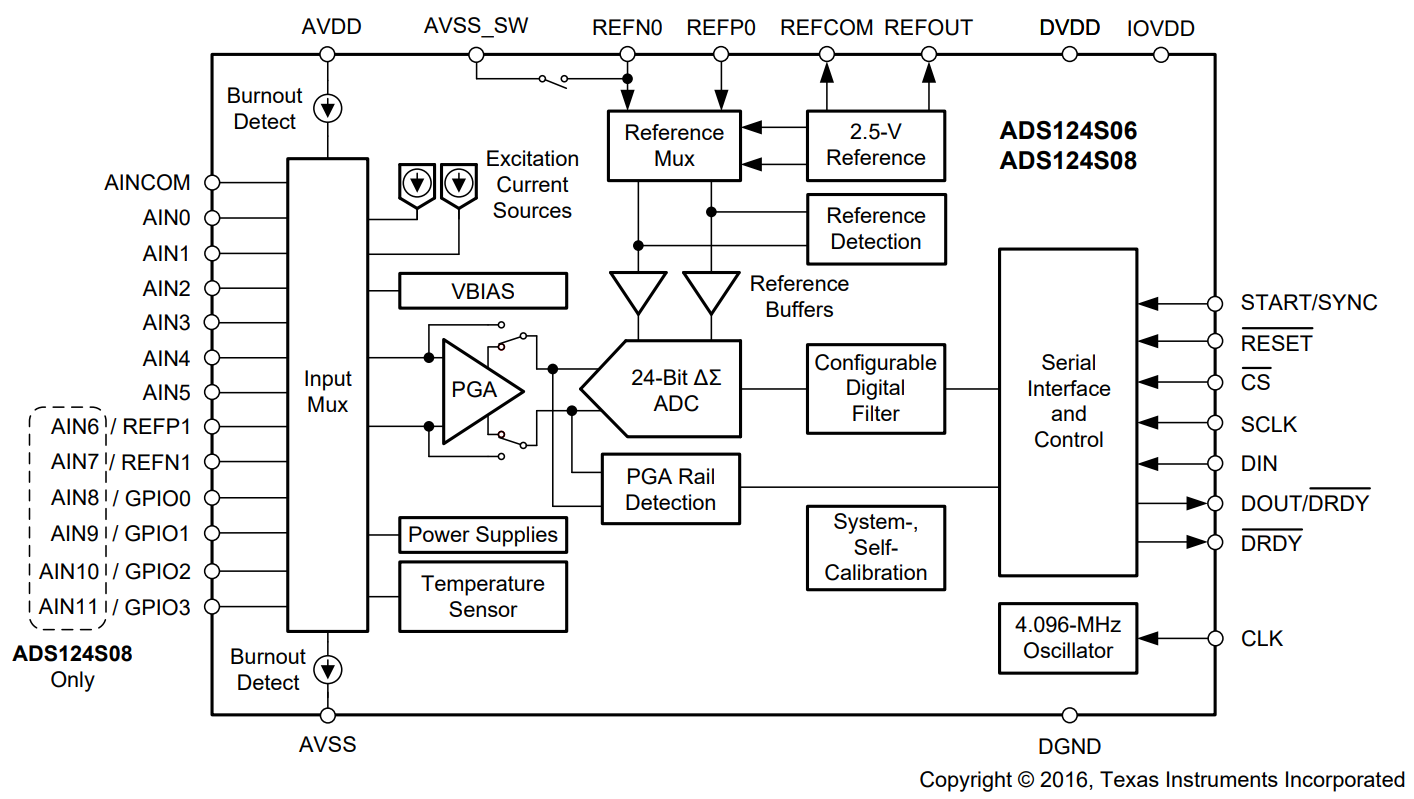

ADS124S06IRHBR Typical application Circuitry

Texas Instruments offers a high-performance, 24-bit analog-to-digital converter (ADC) with precision. The chip is intended for various applications, including industrial control and automation, and temperature sensors like RTDs and thermocouples. Here's a general outline on how to connect the ADS124S06IRHBR:

1. Power Supply: The device operates from a power supply voltage between 2.7V and 5.3V. Connect the AVDD pin to the analog power supply, and the DVDD pin to the digital power supply.
2. Ground Connections: Analog ground (AGND) and digital ground (DGND) are the two available ground pins. Both pins must be connected to your system ground.
3. Analog Inputs: The ADC has a total of 11 analog input pins (AIN0-AIN10). You can connect your sensor or other analog signals to these pins as needed.
4. Reference Voltage: You can use an external or internal reference voltage with the ADS124S06IRHBR. If you're using an external reference, connect it to the REFNP and REFNN pins.
5. Clock Input: An external clock signal can be provided to the device through the CLKIN pin. Alternatively, the ADC can use its internal oscillator.
6. Digital Interface: The digital interface of the ADS124S06IRHBR is SPI-compatible. Connect your microcontroller or digital system to the relevant pins: CS (chip select), SCLK (serial clock), DIN (data in), DOUT (data out), and DRDY (data ready).
7. Reset Pin: If necessary, you can conduct a hardware reset on the device using the RESET pin.
8. Decoupling Capacitors: It is good practice to connect decoupling capacitors close to the AVDD, DVDD, REFNP, and REFNN pins. These capacitors help filter out voltage noise.
9. Gain Selection: The device has a built-in programmable gain amplifier (PGA). You can configure the gain of the PGA through the ADC's SPI interface.
For detailed information about these connections, and for specifics on resistor and capacitor values and other details, consult the ADS124S06IRHBR datasheet. This document will provide in-depth explanations about device characteristics, limitations, and best practices for circuit design.
