Texas Instruments ADS1230IPWR

Part No.:: ADS1230IPWR

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADS1230IPWR.pdf

Description:: IC ADC 20BIT SIGMA-DELTA 16TSSOP

In Stock:: 3580

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1230IPWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
Product Status:
Active
Number of Bits:
20
Sampling Rate(PerSecond):
80
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
SPI
Configuration:
PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.3V
Voltage-Supply Digital:
2.7V ~ 5.3V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

ADS1230IPWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1230IPWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1230IPWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1230IPWR information

Views：

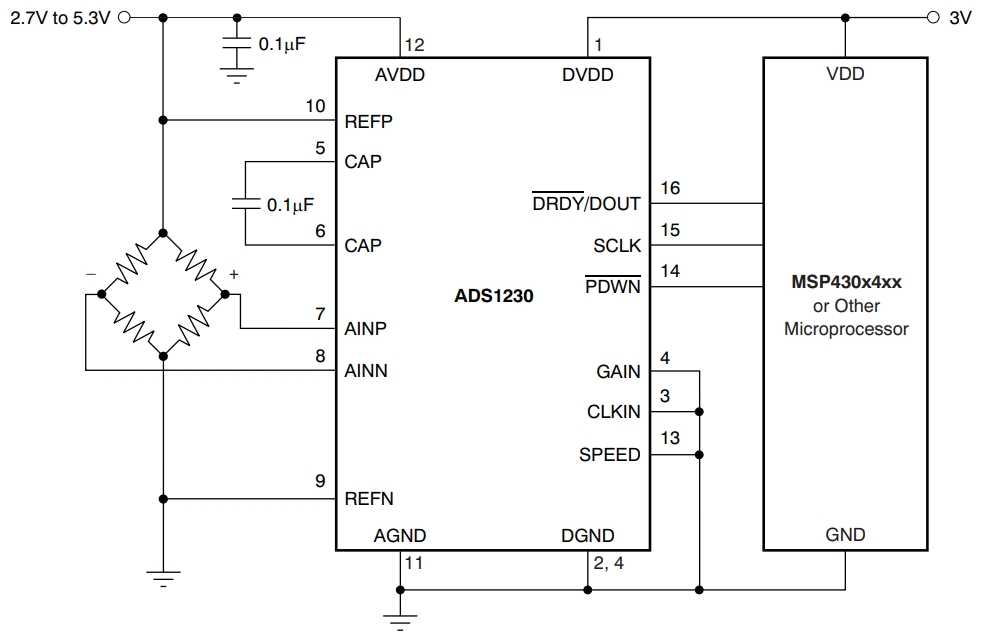

ADS1230IPWR Typical application Circuitry

ADS1230IPWR

The ADS1230IPWR is a precision, 20-bit analog-to-digital converter (ADC) specifically designed for weigh scales and industrial control applications. It is particularly adept at handling low-frequency signal conversions with high accuracy, which is critical in weighing and force measurement systems.

Key Features of the ADS1230IPWR:

1. High Resolution: The ADS1230IPWR offers 20-bit resolution, ensuring high precision in measurements, which is crucial for weigh scales.

2. Low Noise: It exhibits extremely low noise, enhancing the accuracy of measurements.

3. Single-Chip Solution: Integrates a PGA and a delta-sigma ADC, simplifying the design process.

4. Low Power Consumption: Ideal for battery-powered applications due to its efficient power usage.

Application Scenario: Digital Weighing Scale

Circuit Connection Details:

1. Power Supply Connection: Link the VDD pin of the ADS1230IPWR to a stable power source, typically between 2.6V to 5.25V.

2. Load Cell Interface: Connect a load cell to the AINP (positive input) and AINN (negative input) pins, which are crucial for accurate weight measurement.

3. Data Output Setup: The DOUT pin should be connected to the microcontroller for data retrieval.

4. Clock Input Configuration: Provide a clock signal to the SCLK pin from the microcontroller, necessary for data conversion and retrieval.

Design Considerations:

1. Stable Power Supply: It's vital to ensure the power supply is stable and clean to maintain the accuracy of measurements.

2. Load Cell Quality: The quality and characteristics of the load cell directly impact the performance and accuracy of the weighing scale.

3. Data Communication: Ensuring reliable data communication between the ADS1230IPWR and the microcontroller is essential for accurate data retrieval.

4. Mechanical Design: The mechanical setup of the weighing scale should be robust to prevent vibrations and external forces from affecting the accuracy.

Conclusion

The ADS1230IPWR is highly suited for applications like digital weighing scales due to its high resolution, low noise, and low power consumption. In designing a circuit with the ADS1230IPWR, considerations regarding the power supply, load cell selection, data communication integrity, and mechanical design are key to achieving precise and reliable weight measurements.
