What is the Additional Feature ?

Name: ADS1158IRTCR
Brand: Texas Instruments
SKU: ADS1158IRTCR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments ADS1158IRTCR

Part No.:: ADS1158IRTCR

Manufacturer:: Texas Instruments

Package:: 48-VFQFN Exposed Pad

Datasheet:: ADS1158IRTCR.pdf

Description:: IC ADC 16BIT SIGMA-DELTA 48VQFN

In Stock:: 24130

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1158IRTCR Specifications

Packaging:
Tape & Reel (TR),Bulk
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
125k
Number of Inputs:
8, 16
Input Type:
Differential, Single Ended
Data Interface:
SPI
Configuration:
MUX-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 105°C

ADS1158IRTCR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1158IRTCR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1158IRTCR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1158IRTCR information

Views：

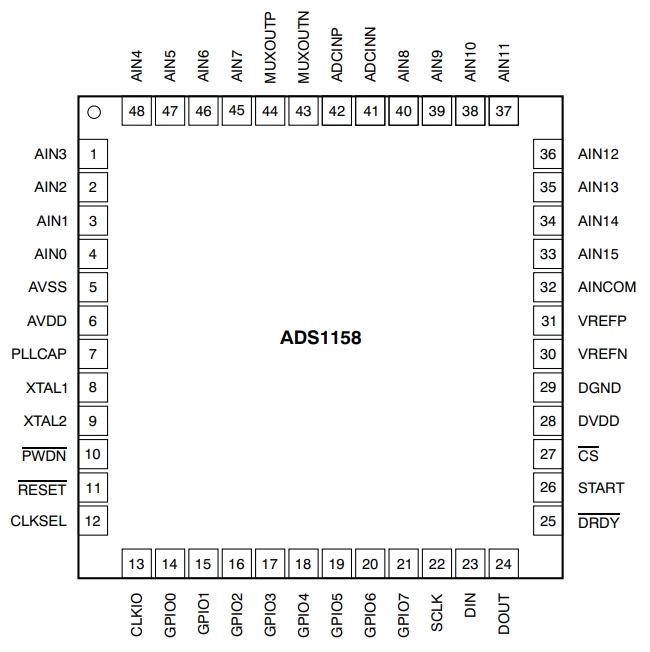

ADS1158IRTCR Typical application Circuitry

ADS1158IRTCR

The ADS1158IRTCR is a multi-channel, 16-bit, analog-to-digital converter (ADC) with a built-in programmable gain amplifier (PGA). This chip is particularly well-suited for applications that require simultaneous sampling of multiple analog signals, such as in medical instrumentation, industrial process control, and multichannel data acquisition systems.

Key Features of the ADS1158IRTCR:

1. Multi-Channel Sampling: The ADS1158IRTCR supports up to 16 analog input channels, enabling extensive data acquisition capabilities.

2. High Resolution: With its 16-bit resolution, this ADC provides high-precision measurements.

3. Programmable Gain Amplifier: The integrated PGA allows for signal amplification, enhancing the measurement of low-amplitude signals.

4. Flexible Data Rate: Offers a wide range of data rates, adaptable to various application needs.

Application Scenario: Multi-Channel Temperature Data Logging

Circuit Connection Details:

1. Power Supply Connection: Connect the AVDD and DVDD pins of the ADS1158IRTCR to a stable power supply within the range of 2.7V to 5.25V.

2. SPI Communication Setup: Interface the SPI pins (CS, SCLK, DIN, DOUT/DRDY) of the ADS1158IRTCR with corresponding SPI pins on a microcontroller.

3. Analog Input Configuration: Connect multiple temperature sensors to the AIN0 to AIN15 pins for multi-channel temperature monitoring.

4. Reference Voltage Application: Attach a precise reference voltage to the REFP and REFN pins to ensure accurate ADC conversion.

Design Considerations:

1. Stable Power Source: Ensuring a noise-free and stable power supply is essential for accurate ADC performance.

2. SPI Communication Integrity: Properly configure the SPI settings and consider using shielding or twisted pair cables to minimize interference.

3. Sensor Compatibility: Choose temperature sensors that are compatible with the input range and characteristics of the ADS1158IRTCR.

4. Thermal Management: Be aware of the thermal environment around the ADC to prevent self-heating and ensure accurate temperature measurements.

Conclusion

The ADS1158IRTCR is a robust solution for multi-channel data acquisition systems, offering high resolution and flexibility in handling multiple analog inputs. When designing circuits with the ADS1158IRTCR, particular attention should be paid to the power supply quality, communication protocols, sensor selection, and overall thermal management to achieve optimal performance in applications like multi-channel temperature data logging.
