Texas Instruments ADS1118IRUGR

Part No.:: ADS1118IRUGR

Manufacturer:: Texas Instruments

Package:: 10-XFQFN

Datasheet:: ADS1118IRUGR.pdf

Description:: IC ADC 16BIT SIGMA-DELTA 10X2QFN

In Stock:: 3607

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1118IRUGR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
860
Number of Inputs:
2, 4
Input Type:
Differential, Single Ended
Data Interface:
SPI
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
Internal
Voltage-Supply Analog:
2V ~ 5.5V
Voltage-Supply Digital:
2V ~ 5.5V
Features:
PGA, Temperature Sensor
Operating Temperature:
-40°C ~ 125°C

ADS1118IRUGR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1118IRUGR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1118IRUGR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1118IRUGR information

Views：

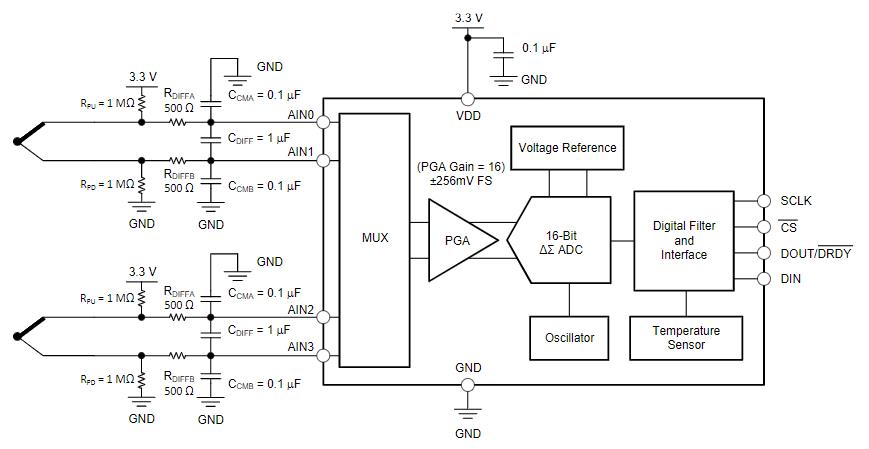

ADS1118IRUGR Typical application Circuitry Schematics

The ADS1118IRUGR is a compact, precision, 16-bit analog-to-digital converter (ADC) developed by Texas Instruments. The device incorporates features such as a programmable gain amplifier (PGA), a precision temperature sensor, and a voltage reference, making it suitable for a wide range of sensor measurement and data acquisition applications. Key features of the ADS1118IRUGR include:

1. High-Resolution ADC: With its 16-bit resolution, the ADS1118IRUGR can convert an input analog signal into one of 65,536 different digital values, providing very precise measurements.

2. Programmable Gain Amplifier: The built-in PGA allows for amplification of the analog input signal by a programmable factor before the conversion process, enhancing the accuracy of small-signal measurements.

3. Temperature Sensor: The ADS1118IRUGR has an on-chip temperature sensor that can be utilized for thermocouple cold-junction compensation or system-level temperature monitoring.

4. Precision Voltage Reference: The device includes a precision voltage reference that provides a stable voltage for the ADC operation.

The significant pins of the ADS1118IRUGR and their functions are as follows:

- VDD (Pin 10): This is the power supply pin for the ADC.

- GND (Pin 9): This is the ground reference pin for the ADC.

- SILK (Pin 7), DIN (Pin 8), and OUT/DRY (Pin 1): These pins are used for SPI communication with a microcontroller or other digital devices.

- AIN0 (Pin 2) and AIN1 (Pin 3): These are the analog input pins for the ADC.

- CS (Pin 6): This is the chip select pin, which enables the SPI interface when driven low.

The specific circuit connection of the ADS1118IRUGR will depend on your specific use case. Always refer to the data sheet for detailed information and guidelines on using this device, including recommended operating conditions, power supply decoupling, and grounding considerations. The data sheet will also provide detailed schematics of typical application circuits.
