Texas Instruments ADS1115IDGST

Part No.:: ADS1115IDGST

Manufacturer:: Texas Instruments

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: ADS1115IDGST.pdf

Description:: IC ADC 16BIT SIGMA-DELTA 10VSSOP

In Stock:: 3699

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1115IDGST Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
860
Number of Inputs:
2, 4
Input Type:
Differential, Single Ended
Data Interface:
I²C
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
Internal
Voltage-Supply Analog:
2V ~ 5.5V
Voltage-Supply Digital:
2V ~ 5.5V
Features:
PGA, Selectable Address
Operating Temperature:
-40°C ~ 125°C

ADS1115IDGST this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1115IDGST price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1115IDGST to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1115IDGST information

Views：

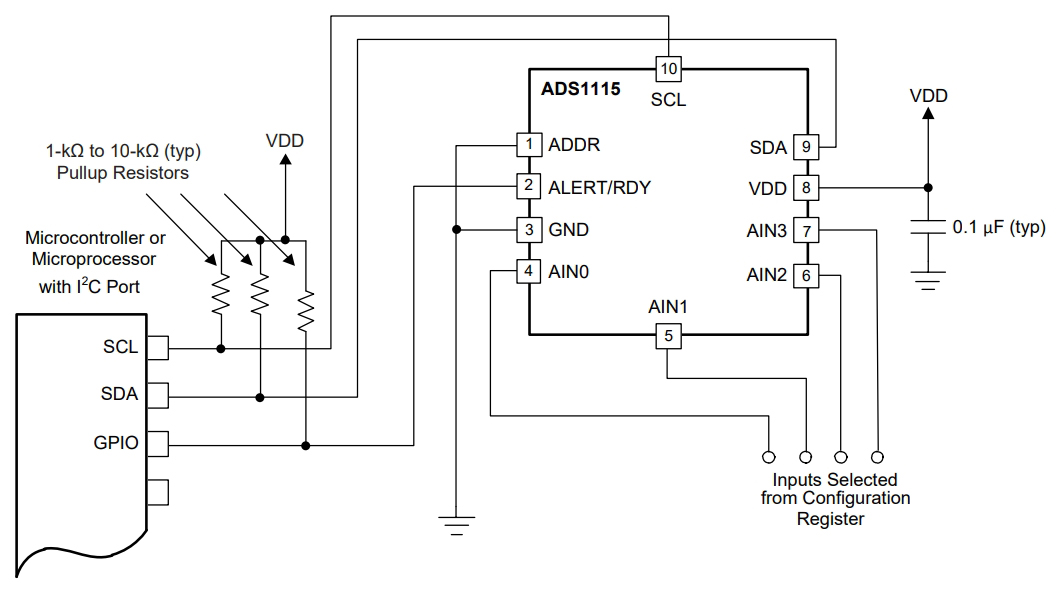

ADS1115IDGST Typical application Circuitry

ADS1115IDGST

An I2C-compatible 16-bit analog-to-digital converter (ADC) with precision and low power consumption is the ADS1115IDGST. This versatile chip is used in various applications requiring precise conversion of analog signals to digital data. Let's explore its functionalities, typical applications, parameter features, and a specific example of circuit integration:

Functionality of ADS1115IDGST

1. Analog-to-Digital Conversion: The ADS1115IDGST specializes in converting analog signals into 16-bit digital data, providing high precision in measurements.

2. Multiple Input Channels: It features four input channels for versatile connection to different analog sources.

3. Programmable Gain Amplifier (PGA): Includes a PGA, allowing for a range of input voltages.

Utilization Situations

1. Battery Monitoring: in mobile devices to keep an eye on the health and voltage of the batteries.

2. Environmental Sensing:for gathering information from sensors that record light intensity, humidity, or temperature.

3. Data Acquisition Systems (DAQ): In industrial and scientific applications where accurate data collection is essential.

Parameter Features

1. Resolution: 16-bit resolution enables fine granularity in data conversion.

2. Data Rate: Offers adjustable data rates to accommodate various measurement speeds.

3. I2C Interface: Comes with an I2C-compatible interface for easy communication with microcontrollers or processors.

Application Example: Integration in a Battery Monitoring System

Let's discuss integrating ADS1115IDGST into a battery monitoring system.

Detailed Circuit Integration

1. Power Supply Connection: Connect the VDD pin of ADS1115IDGST to a stable power source, typically 2.0V to 5.5V.

2. Analog Input Connection: Interface the A0-A3 pins to the points where battery voltage needs to be monitored.

3. I2C Communication: Link the SDA (Data Line) and SCL (Clock Line) pins to the corresponding I2C lines on a microcontroller.

4. Address Selection: Set the ADDR pin to determine the device's I2C address, depending on the system requirements.

Design Considerations

1. Stable Power Source: Accurate ADC functioning depends on a clean, steady power source. 2. Signal Conditioning: Ensure that the input signals are within the range of the ADS1115IDGST and conditioned appropriately.

3. I2C Bus Compatibility: Check the compatibility of the microcontroller's I2C interface with the ADS1115IDGST and include pull-up resistors on the SDA and SCL lines if necessary.

4. PCB Design: Minimize noise and interference in the PCB layout, especially around the analog input and power supply lines.

In conclusion, the ADS1115IDGST is an essential component in applications where precise analog-to-digital conversion is needed, such as in battery monitoring systems where it effectively measures and communicates battery voltage levels.
