Texas Instruments ADS1115IDGSR

Part No.:: ADS1115IDGSR

Manufacturer:: Texas Instruments

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: ADS1115IDGSR.pdf

Description:: IC ADC 16BIT SIGMA-DELTA 10VSSOP

In Stock:: 3713

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1115IDGSR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
860
Number of Inputs:
2
Input Type:
Differential, Single Ended
Data Interface:
I²C
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
Internal
Voltage-Supply Analog:
2V ~ 5.5V
Voltage-Supply Digital:
2V ~ 5.5V
Features:
PGA, Selectable Address
Operating Temperature:
-40°C ~ 125°C

ADS1115IDGSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1115IDGSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1115IDGSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1115IDGSR information

Views：

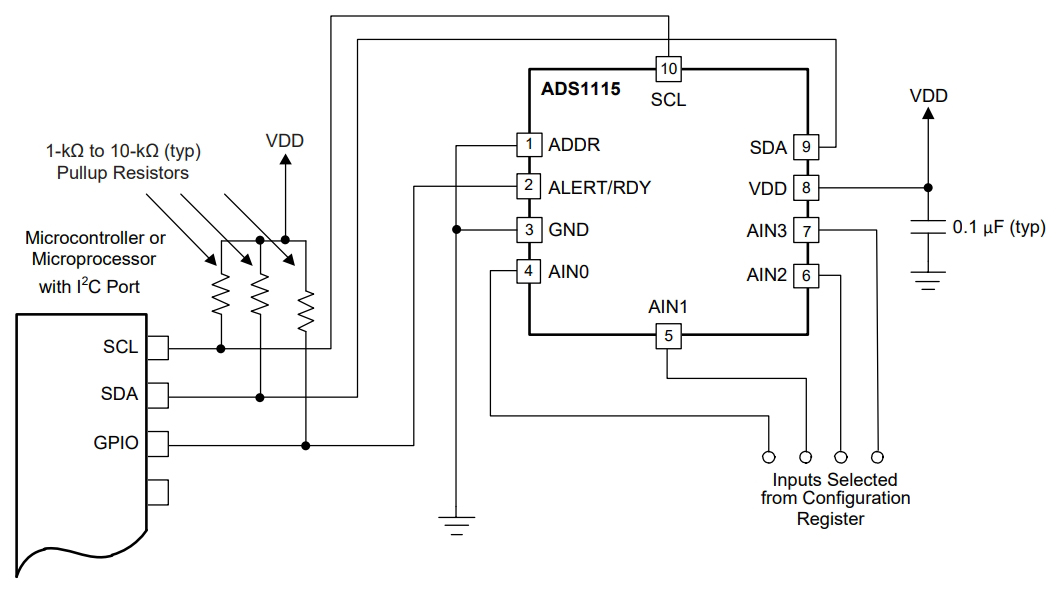

ADS1115IDGSR Typical application Circuitry

ADS1115IDGSR

An I2C-compatible 16-bit analog-to-digital converter (ADC) with precision and low power consumption is the ADS1115IDGSR. Applications needing precise translation of analog signals to digital data frequently use this device. Let's explore its functionalities, application scenarios, parameter features, and a specific example of circuit integration:

Functionality of ADS1115IDGSR

1. Analog-to-Digital Conversion: The ADS1115IDGSR efficiently converts analog signals into 16-bit digital data.

2. Multiple Input Channels: It offers four input channels for versatile connection options.

3. Programmable Gain Amplifier: Includes a PGA, enabling it to measure a wide range of input signals.

Application Scenarios

1. Battery Monitoring: In portable devices to monitor battery health and voltage levels.

2. Environmental Sensing: to retrieve information from sensors such as light intensity, humidity, and temperature.

3. Data Acquisition Systems (DAQ): In industrial and scientific measurement systems for accurate data collection.

Parameter Features

1. Resolution: 16-bit resolution, providing high precision in data conversion.

2. Data Rate: Adjustable data rates to suit various application needs.

3. I2C Interface: Compatible with I2C communication for easy interfacing with microcontrollers or processors.

Application Example: Integration in an Environmental Sensing System

Let's detail the integration of ADS1115IDGSR in an environmental sensing system.

Detailed Circuit Integration

1. Power Supply Connection: Connect the VDD pin of ADS1115IDGSR to a stable power source, typically between 2.0V and 5.5V.

2. Analog Inputs: Interface the A0-A3 pins with the outputs of environmental sensors (e.g., temperature, humidity sensors).

3. I2C Communication: Connect the SDA (Data Line) and SCL (Clock Line) pins to the respective I2C lines on a microcontroller.

4. Address Configuration: Configure the ADDR pin to set the device address on the I2C bus, depending on the required address.

Design Considerations

1. Stable Power Supply: Ensure that the power supply is stable and noise-free for accurate ADC operation.

2. Input Signal Conditioning: Condition the input signals to match the input specifications of ADS1115IDGSR.

3. I2C Bus Compatibility: Verify the compatibility with the microcontroller's I2C interface, and include pull-up resistors on the SDA and SCL lines as needed.

4. PCB Layout: Minimize noise in the PCB design, especially around the analog input and power supply lines.

In summary, the ADS1115IDGSR is vital in applications where precise and efficient analog-to-digital conversion is needed, such as in environmental sensing systems, where it accurately processes data from various environmental sensors.
