Texas Instruments ADS1015IRUGR

Part No.:: ADS1015IRUGR

Manufacturer:: Texas Instruments

Package:: 10-XFQFN

Datasheet:: ADS1015IRUGR.pdf

Description:: IC ADC 12BIT SIGMA-DELTA 10X2QFN

In Stock:: 3387

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1015IRUGR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
3.3k
Number of Inputs:
2, 4
Input Type:
Differential, Single Ended
Data Interface:
I²C
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
Internal
Voltage-Supply Analog:
2V ~ 5.5V
Voltage-Supply Digital:
2V ~ 5.5V
Features:
PGA, Selectable Address
Operating Temperature:
-40°C ~ 125°C

ADS1015IRUGR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1015IRUGR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1015IRUGR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1015IRUGR information

Views：

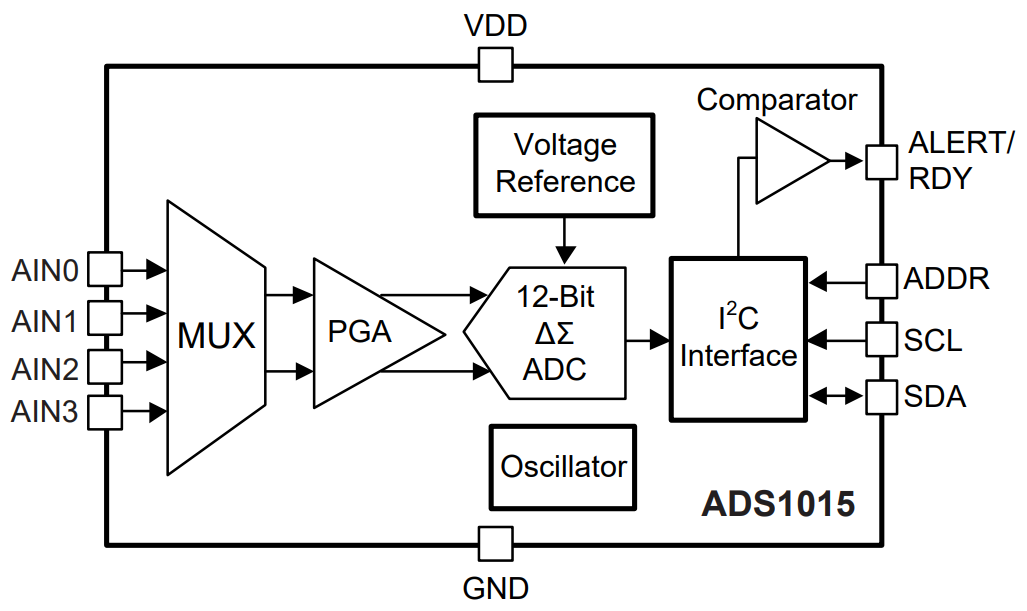

ADS1015IRUGR Typical application Circuitry

ADS1015IRUGR

The ADS1015IRUGR is a part of the ADS101x series of analog-to-digital converters (ADCs) from Texas Instruments, designed to offer precise data acquisition in compact, power-efficient packages. This series is renowned for its integration of multiple features, including an onboard programmable gain amplifier (PGA) and an internal oscillator, which facilitate the direct connection to sensors and other signal sources. The ADS1015IRUGR, with its 12-bit resolution and 4-channel multiplexer, is particularly suited for applications requiring high-resolution measurement in space-constrained environments, such as portable devices, consumer electronics, and battery-operated monitoring systems. Its I2C-compatible serial interface also ensures easy integration with most microcontrollers, making it a versatile choice for a wide array of data acquisition tasks.

1. Power Supply (VDD Pin): The ADS1015IRUGR operates with a single power supply connected to the VDD pin, with a voltage range from 2.0V to 5.5V, accommodating various system voltages. A decoupling capacitor should be placed near the VDD pin to filter out noise and stabilize the power supply, essential for accurate ADC performance.

2. Ground Connection (GND Pin): A reliable ground connection is established through the GND pin. This pin should be connected to the system's ground plane to minimize noise and ensure the integrity of the analog-to-digital conversion process.

3. Analog Inputs (AIN0 to AIN3 Pins): The ADS1015IRUGR features four analog input pins, AIN0 to AIN3, which can be configured as either four single-ended inputs or two differential pairs through the device's internal multiplexer. These pins provide the flexibility to connect various sensors and signal sources directly to the ADC, facilitating diverse measurement capabilities.

4. I2C Serial Interface (SDA, SCL Pins): The device communicates with microcontrollers or processors through an I2C serial interface, consisting of the SDA (Serial Data) and SCL (Serial Clock) pins. This interface enables straightforward integration with most digital systems, allowing for easy data exchange and device configuration.

5. Address Selection (ADDR Pin): The ADDR pin determines the I2C address of the ADS1015IRUGR, allowing multiple devices to share the same I2C bus. By connecting this pin to VDD, GND, SDA, or SCL, the device's address can be configured to one of four options, enhancing system design flexibility.

6. Alert/Ready (ALRT/RDY Pin): This multifunctional pin serves as both an alert output and a conversion ready signal. It can be configured to indicate when the conversion data is ready to be read or when a programmed threshold is crossed, providing a versatile mechanism for data synchronization and event-driven measurements.

Designing a circuit with the ADS1015IRUGR involves careful planning to optimize the analog input signal path, ensure clean power supply conditions, and effectively configure the device for the desired measurement mode. By utilizing the ADS1015IRUGR's advanced features, developers can create sophisticated, high-precision data acquisition systems capable of addressing the nuanced requirements of modern applications. The ADS1015IRUGR exemplifies Texas Instruments' dedication to providing versatile, high-performance ADC solutions that simplify the design and enhance the functionality of data acquisition systems.
