Texas Instruments ADS1015IDGSR

Part No.:: ADS1015IDGSR

Manufacturer:: Texas Instruments

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: ADS1015IDGSR.pdf

Description:: IC ADC 12BIT SIGMA-DELTA 10VSSOP

In Stock:: 2503

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADS1015IDGSR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
3.3k
Number of Inputs:
2, 4
Input Type:
Differential, Single Ended
Data Interface:
I²C
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
Internal
Voltage-Supply Analog:
2V ~ 5.5V
Voltage-Supply Digital:
2V ~ 5.5V
Features:
PGA, Selectable Address
Operating Temperature:
-40°C ~ 125°C

ADS1015IDGSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADS1015IDGSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADS1015IDGSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADS1015IDGSR information

Views：

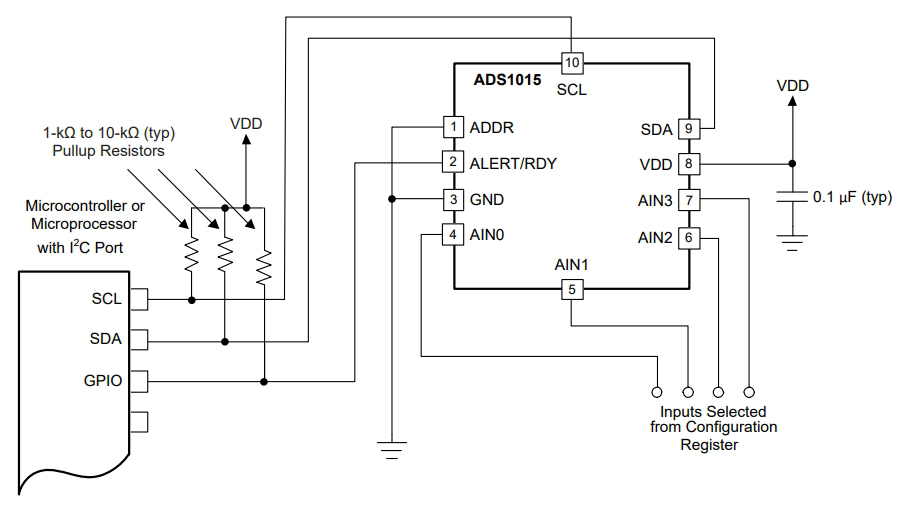

ADS1015IDGSR Typical application Circuitry

ADS1015IDGSR

The ADS1015IDGSR is a precision, low-power, 12-bit Analog-to-Digital Converter (ADC) chip with an I2C-compatible interface. It is widely used in applications requiring accurate and efficient digital representation of analog signals. Let's explore its functionalities, application scenarios, parameter features, and a detailed example of circuit integration:

Functionality of ADS1015IDGSR

1. Analog-to-Digital Conversion: The primary function of the ADS1015IDGSR is to convert analog signals into digital data.

2. Multiple Input Channels: It typically offers four input channels, allowing for multiple analog inputs.

3. Programmable Gain Amplifier (PGA): Includes a PGA, which provides several gain options for input signals.

Application Scenarios

1. Battery Monitoring: In portable devices for monitoring battery voltage levels.

2. Temperature Sensing: Paired with temperature sensors in climate control systems.

3. Data Acquisition Systems (DAQ): For precision measurement in scientific and industrial applications.

Parameter Features

1. Resolution: 12-bit resolution, providing fine granularity in conversion.

2. Sampling Rate: Offers different data rates for various application needs.

3. Interface: I2C-compatible interface for communication with microcontrollers or processors.

Application Example: Integration in a Battery Monitoring System

Let's discuss integrating the ADS1015IDGSR into a battery monitoring circuit.

Detailed Circuit Integration

1. Power Supply Connection: Connect the VDD pin of ADS1015IDGSR to a stable power source, typically 3.3V or 5V.

2. Analog Input Connection: Attach the A0-A3 pins (analog input channels) to the points where the battery voltage is to be monitored.

3. I2C Communication Interface: Link SDA (Data Line) and SCL (Clock Line) pins to the corresponding I2C lines on a microcontroller.

4. Address Pin (ADDR): Configure the ADDR pin for setting the device address on the I2C bus, depending on the required address.

Design Considerations

1. Stable Power Source: Ensure a clean and stable power supply for accurate ADC readings.

2. Input Signal Conditioning: If necessary, condition the input signal (using filters or amplifiers) to match the input range of the ADS1015IDGSR.

3. I2C Bus Compatibility: Ensure that the microcontroller's I2C interface is compatible with the ADS1015IDGSR, and consider pull-up resistors on the SDA and SCL lines.

4. PCB Layout: Minimize noise and interference in the PCB design, especially around the analog input and power supply lines.

In conclusion, the ADS1015IDGSR is essential in applications where precise and efficient analog-to-digital conversion is required, such as in battery monitoring systems, where it can accurately monitor and relay voltage levels.
