Texas Instruments ADC12DJ5200RFAAVT

Part No.:: ADC12DJ5200RFAAVT

Manufacturer:: Texas Instruments

Package:: 144-FBGA, FCBGA

Datasheet:

Description:: IC ANALOG TO DIGITAL CONVERTER

In Stock:: 3738

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADC12DJ5200RFAAVT Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
5.2G
Number of Inputs:
2
Input Type:
Differential, Single Ended
Data Interface:
JESD204B/C
Configuration:
MUX-ADC
Ratio-S/H:ADC:
0:2
Number of A/D Converters:
2
Architecture:
Pipelined, SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
1.05V ~ 1.15V, 1.8V ~ 2V
Voltage-Supply Digital:
1.05V ~ 1.15V
Features:
Temperature Sensor
Operating Temperature:
-40°C ~ 85°C

ADC12DJ5200RFAAVT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADC12DJ5200RFAAVT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADC12DJ5200RFAAVT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADC12DJ5200RFAAVT information

Views：

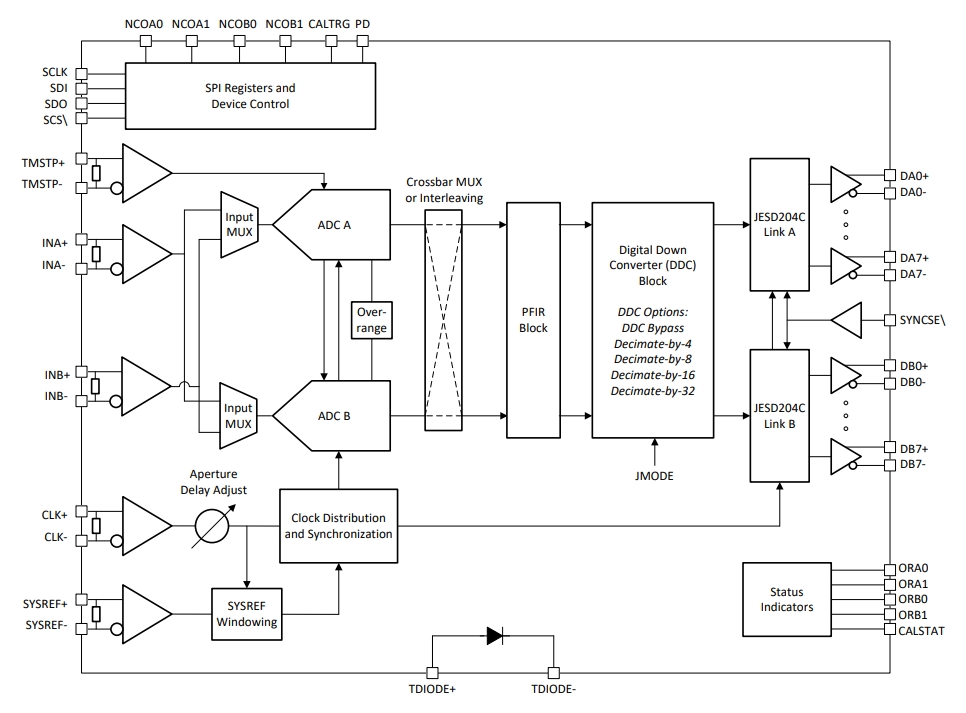

ADC12DJ5200RFAAVT Typical application Circuitry

ADC12DJ5200RFAAVT

ADC12DJ5200RFAAVT is a dual-channel, high-speed analog-to-digital converter (ADC) chip, capable of operating at sampling rates up to 5.2 GSPS (Giga samples per second) with a 12-bit resolution. This chip is designed for applications that require fast and accurate conversion of analog signals to digital data.

Applications of ADC12DJ5200RFAAVT include:

- Radar and sensing systems

- Communication systems

- Medical imaging devices

- Test and measurement equipment

Key parameters and features of ADC12DJ5200RFAAVT include:

- Dual-channel ADC

- 12-bit resolution

- Maximum sampling rate of 5.2 GSPS

- JESD204B/C interface

- Internal clock multiplier

- Wide temperature range of -40°C to +85°C

Let's consider a radar system as an application scenario for ADC12DJ5200RFAAVT.

Here is how you can connect the circuit:

1. Analog Input Connections:

Connect the radar signal to the IN0P and IN0N pins of ADC12DJ5200RFAAVT.

2. Clock Input Connection:

Connect an external clock source to the CLKP and CLKN pins of ADC12DJ5200RFAAVT.

3. Power Supply Connections:

Connect a positive power supply to the AVDD, DVDD, and PVDD pins, and connect the ground to the AGND, DGND, and PGND pins of ADC12DJ5200RFAAVT.

4. Digital Output Connections:

Connect the digital output pins of ADC12DJ5200RFAAVT to the digital input pins of the processing system.

5. JESD204B/C Interface Connection:

Connect the JESD204B/C interface pins of ADC12DJ5200RFAAVT to the corresponding interface pins of the processing system.

When designing the circuit, consider the following points:

1. Signal Integrity:

Ensure that the radar signal is clean and free from noise to maintain the integrity of the analog input signal.

2. Power Supply Quality:

Use a clean and stable power supply to avoid any distortion or errors during the conversion process.

3. Clock Stability:

Ensure that the clock source is stable and accurate to synchronize the conversion process correctly.

4. Thermal Management:

Implement proper thermal management techniques to maintain the operating temperature of ADC12DJ5200RFAAVT within the specified range.
