Texas Instruments ADC0809CCN

Part No.:: ADC0809CCN

Manufacturer:: Texas Instruments

Package:: 28-DIP (0.600, 15.24mm)

Datasheet:: ADC0809CCN.pdf

Description:: IC ADC 8BIT SAR 28DIP

In Stock:: 2010

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADC0809CCN Specifications

Packaging:
Tube
Series:
-
Product Status:
Obsolete
Number of Bits:
8
Sampling Rate(PerSecond):
10k
Number of Inputs:
8
Input Type:
Single Ended
Data Interface:
Parallel
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
4.5V ~ 6.5V
Voltage-Supply Digital:
4.5V ~ 6.5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

ADC0809CCN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADC0809CCN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADC0809CCN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADC0809CCN information

Views：

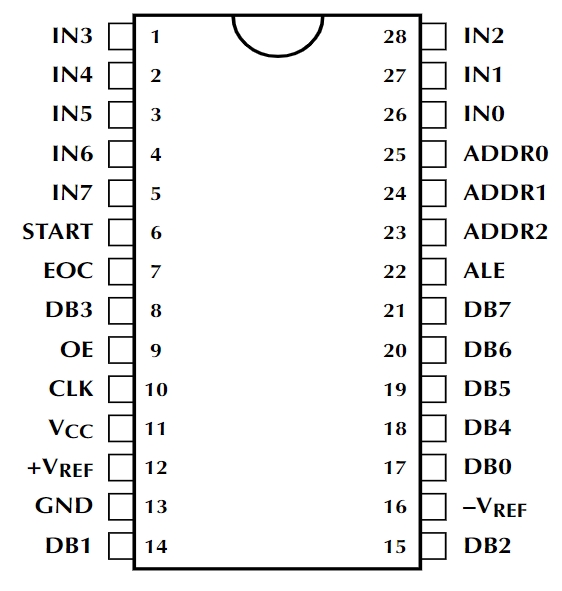

ADC0809CCN Typical application Circuitry

ADC0809CCN

The integrated circuit ADC0809CCN is a high-performance 8-bit analog-to-digital converter (ADC). This chip is used to convert analog signals into digital data, making it suitable for a wide range of applications such as data acquisition systems, sensors interfacing, and other control systems. Applications of ADC0809CCN include:

- Data acquisition systems

- Sensor interfacing

- Industrial control systems

- Medical instrumentation

- Communication systems

Key features and parameters of ADC0809CCN include:

- Resolution of 8 bits

- Eight-channel multiplexer

- Input modes: single-ended or differential

- 0 to 5V analog input range

- Up to 10 kSPS sample rate

- 28-pin dual inline package (DIP)

Let's consider an example where ADC0809CCN is used in a temperature monitoring system. Here is how the circuit can be connected:

1. Analog Input Connection:

Connect the temperature sensor's output to one of the analog input channels (IN0 to IN7) of ADC0809CCN.

2. Digital Output Connection:

Connect the digital output pins (D0 to D7) of ADC0809CCN to the microcontroller or other digital devices.

3. Control Signal Connection:

Connect the control signals (ALE, OE, and SC) of ADC0809CCN to the appropriate pins of the microcontroller.

4. Power Supply Connection:

Connect the VCC and GND pins of ADC0809CCN to the power supply.

5. Clock Input Connection:

Connect an external clock signal to the CLK pin of ADC0809CCN.

When designing the circuit, the following points should be considered:

1. Signal Conditioning:

Ensure proper signal conditioning to match the analog input range of ADC0809CCN.

2. Clock Frequency:

Choose an appropriate clock frequency to meet the sampling rate requirements of the application.

3. Noise Reduction:

Implement noise reduction techniques to minimize interference and improve the accuracy of the ADC conversion.

4. Software Configuration:

Develop suitable software algorithms to process and interpret the digital data obtained from ADC0809CCN.
