Name: ADC0804LCN
Brand: Renesas Electronics America Inc
SKU: ADC0804LCN
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Renesas Electronics America Inc ADC0804LCN

Part No.:: ADC0804LCN

Manufacturer:: Renesas Electronics America Inc

Package:: 20-DIP (0.300, 7.62mm)

Datasheet:: ADC0804LCN.pdf

Description:: IC ADC 8BIT SAR 20DIP

In Stock:: 3745

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADC0804LCN Specifications

Packaging:
Tube
Series:
-
Product Status:
Obsolete
Number of Bits:
8
Sampling Rate(PerSecond):
10k
Number of Inputs:
1
Input Type:
Differential
Data Interface:
Parallel
Configuration:
ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Supply
Voltage-Supply Analog:
4.5V ~ 6.3V
Voltage-Supply Digital:
4.5V ~ 6.3V
Features:
-
Operating Temperature:
0°C ~ 70°C

ADC0804LCN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADC0804LCN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADC0804LCN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADC0804LCN information

Views：

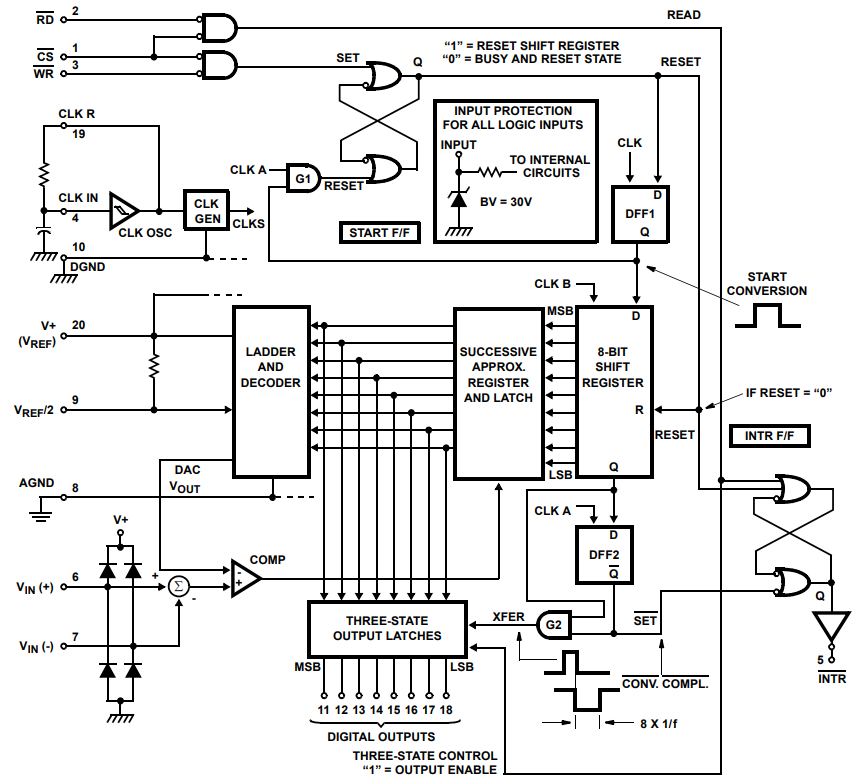

ADC0804LCN Typical application Circuitry

ADC0804LCN

The ADC0804LCN is a significant member of the analog-to-digital converter (ADC) series, characterized by its 8-bit resolution and single-channel operation. This device is designed to offer a straightforward, cost-effective solution for digitalizing analog signals in a wide range of applications, including data acquisition systems, instrumentation, and control systems. Its simplicity and ease of integration make the ADC0804LCN a popular choice for projects requiring reliable conversion without the need for high-speed or multi-channel capabilities.

1. Power Supply and Ground Connections (VCC, GND): The ADC0804LCN is powered by a single supply voltage (VCC), typically +5V, highlighting its compatibility with standard digital systems. The ground pin (GND) serves as the common reference point for both the analog and digital circuits within the device, ensuring stable operation and minimizing potential noise interference in the conversion process.

2. Analog Input and Voltage Reference (IN, VREF/2): The core functionality of the ADC0804LCN revolves around its analog input (IN), where the analog signal to be converted is applied. The device also includes a reference voltage pin (VREF/2), which sets the upper limit of the input voltage range, effectively determining the scale of conversion. Precise setting of this reference voltage is crucial for achieving accurate digital representations of the analog input.

3. Digital Output and Control Signals (DB0-DB7, RD, WR, INTR): The ADC0804LCN features an 8-bit digital output (DB0-DB7), which presents the converted digital code corresponding to the analog input signal. Control pins such as Read (RD), Write (WR), and Interrupt (INTR) facilitate the communication with a microcontroller or digital system. The RD pin initiates the data transfer to the microcontroller, the WR pin starts the conversion process, and the INTR pin signals the completion of a conversion, serving as a handshake for data synchronization.

4. Clock Input for Timing Control (CLK IN): A clock input (CLK IN) pin is provided to connect an external clock source, which dictates the timing of the conversion process. The frequency of this clock source directly influences the speed of conversion, allowing users to balance between conversion rate and system resources, according to the requirements of the application.

5. Chip Select for Device Activation (CS): The chip select (CS) pin is a key feature for integrating the ADC0804LCN into systems with multiple peripherals on a common bus. Activating this pin enables the ADC, allowing it to communicate with the controlling system. This design ensures efficient management of the data bus and seamless operation within multi-device environments.

6. Versatility in Analog-to-Digital Conversion: The ADC0804LCN stands out for its adaptability and reliability in converting analog signals to digital form. Its straightforward interface, combined with the precision offered by the adjustable voltage reference and the flexibility of external clocking, makes it a versatile choice for designers and hobbyists alike seeking a dependable solution for analog-to-digital conversion tasks.

In summary, the ADC0804LCN exemplifies a blend of simplicity, functionality, and precision in the realm of 8-bit analog-to-digital conversion. By incorporating essential features such as an adjustable voltage reference, external clocking capability, and straightforward digital interfacing, the ADC0804LCN offers a practical solution for a broad spectrum of applications where accurate and reliable digitalization of analog signals is paramount.
