Analog Devices Inc. ADAU1961WBCPZ-R7

Part No.:: ADAU1961WBCPZ-R7

Manufacturer:: Analog Devices Inc.

Package:: 32-VFQFN Exposed Pad, CSP

Datasheet:: ADAU1961WBCPZ-R7.pdf

Description:: IC STEREO AUD CODEC LP 32LFCSP

In Stock:: 2970

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADAU1961WBCPZ-R7 Specifications

Package/Case:
32-VFQFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive
ProductStatus:
Active
Type:
Audio
DataInterface:
I²C, Serial, SPI™
Resolution(Bits):
24 b
NumberofADCs/DACs:
2 / 2
SigmaDelta:
No
S/NRatioADCs/DACs(db)Typ:
98 / 98
DynamicRangeADCs/DACs(db)Typ:
96 / 98
Voltage-SupplyAnalog:
2.97V ~ 3.63V
Voltage-SupplyDigital:
2.97V ~ 3.63V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ADAU1961WBCPZ-R7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADAU1961WBCPZ-R7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADAU1961WBCPZ-R7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADAU1961WBCPZ-R7 information

Views：

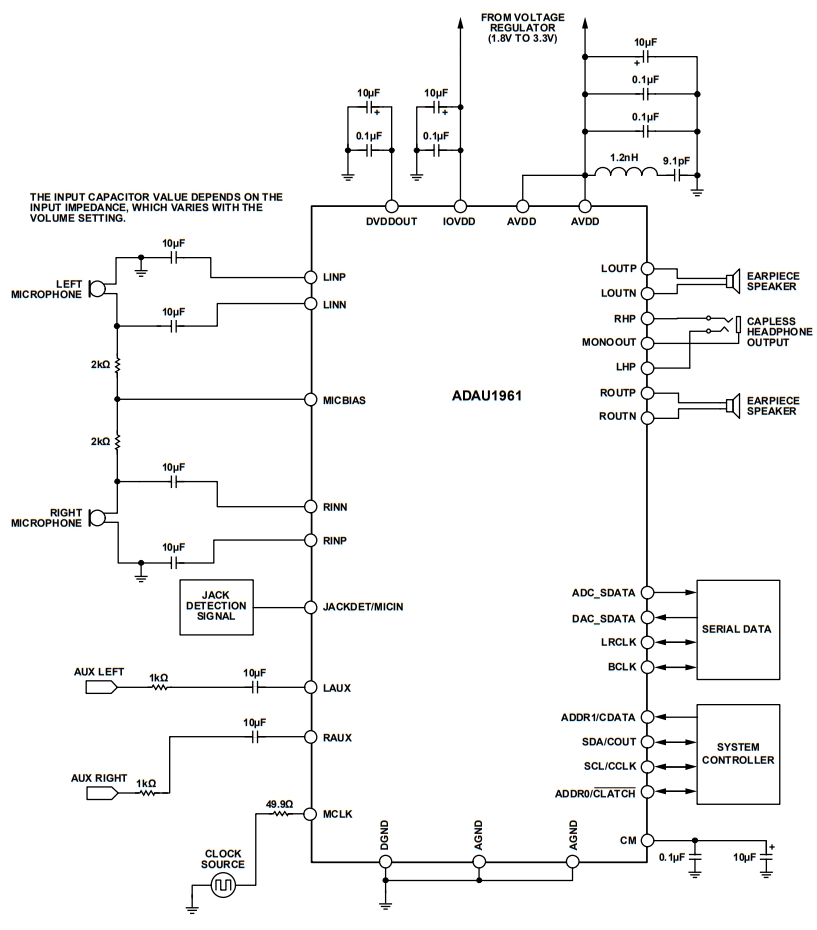

ADAU1961WBCPZ-R7 Typical application Circuitry

ADAU1961WBCPZ-R7

The ADAU1961WBCPZ-R7 is a low power stereo audio codec with an inbuilt digital signal processor (DSP). It is designed for portable and consumer audio applications such as smartphones, tablets, and other handheld devices.

Key features and parameters of ADAU1961WBCPZ-R7 include:

- 24-bit stereo ADC and DAC

- 4 input and 4 output channels

- SigmaDSP with 28-bit instruction word length

- A sampling rate range of 8 kHz to 96 kHz

- SPI and I2C control ports

- Operating voltage from 1.7V to 3.6V

For this example, let's consider using ADAU1961WBCPZ-R7 in a smartphone application. Here's how the circuit can be connected:

1. Power Supply Connection:

Connect a 1.8V power supply to pin 20 (AVDD) and connect pin 19 (AGND) to the ground.

2. Audio Input Connection:

Connect the microphone signals to pins 14 (IN1L) and 15 (IN1R) for the left and right channels, respectively.

3. Audio Output Connection:

Connect pins 1 (OUT1L) and 2 (OUT1R) to the left and right speakers, respectively.

4. Digital Audio Interface Connection:

Connect the I2S or TDM interface to pins 4 (BCLK), 5 (LRCLK), and 6 (SDATA).

5. Control Interface Connection:

Connect the I2C or SPI control interface to pins 9 (SCL/CSB), 10 (SDA/MOSI), and 11 (MISO) for programming and controlling the audio codec.

When designing the circuit, consider the following points:

1. Proper Power Supply:

Ensure that the power supply pins are properly regulated and filtered to provide a stable voltage supply to ADAU1961WBCPZ-R7.

2. Audio Signal Conditioning:

Use audio amplifiers and filters to condition the audio input and output signals for improved audio quality.

3. Digital Audio Interface Compatibility:

Ensure compatibility between the digital audio interface of ADAU1961WBCPZ-R7 and the audio source or sink devices.

4. Control Interface Compatibility:

Ensure compatibility between the control interface of ADAU1961WBCPZ-R7 and the microcontroller or processor used to configure and control the audio codec.
