Analog Devices Inc. ADAU1761BCPZ-R7

Part No.:: ADAU1761BCPZ-R7

Manufacturer:: Analog Devices Inc.

Package:: 32-VFQFN Exposed Pad, CSP

Datasheet:: ADAU1761BCPZ-R7.pdf

Description:: IC SIGMADSP CODEC PLL 32LFCSP

In Stock:: 3107

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADAU1761BCPZ-R7 Specifications

Package/Case:
32-VFQFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
SigmaDSP®
ProductStatus:
Active
Type:
Audio
DataInterface:
Serial
Resolution(Bits):
24 b
NumberofADCs/DACs:
2 / 2
SigmaDelta:
Yes
S/NRatioADCs/DACs(db)Typ:
-
DynamicRangeADCs/DACs(db)Typ:
-
Voltage-SupplyAnalog:
1.8V ~ 3.65V
Voltage-SupplyDigital:
1.63V ~ 3.65V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

ADAU1761BCPZ-R7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADAU1761BCPZ-R7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADAU1761BCPZ-R7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADAU1761BCPZ-R7 information

Views：

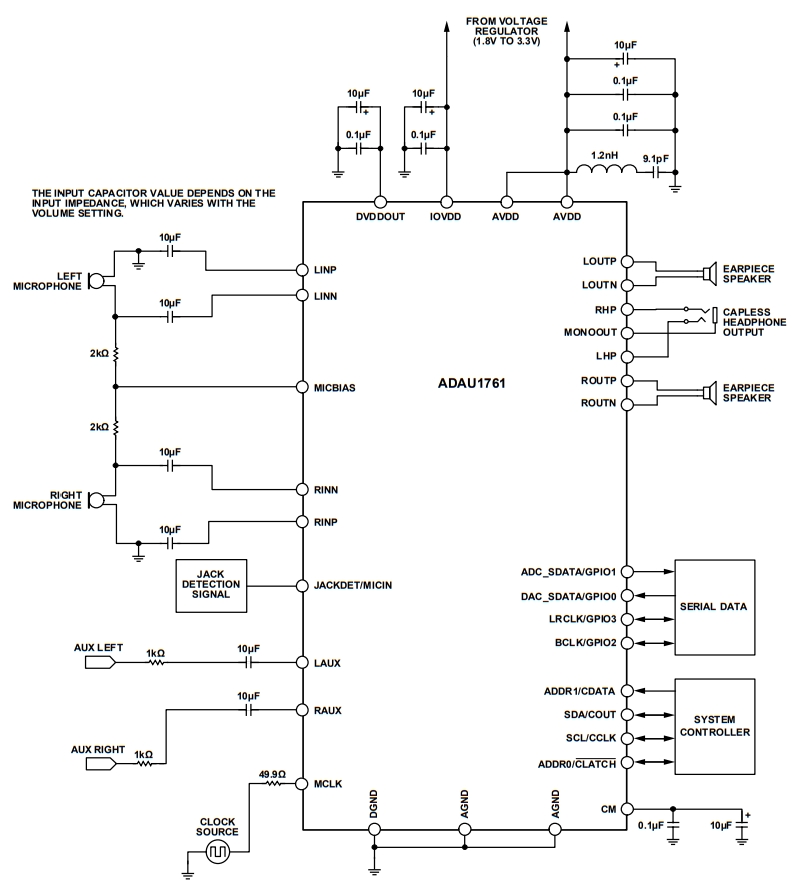

ADAU1761BCPZ-R7 Typical application Circuitry

ADAU1761BCPZ-R7

ADAU1761BCPZ-R7 is a high-performance audio codec with an integrated SigmaDSP processor designed for use in a variety of audio applications such as portable media players, automotive audio systems, and professional audio equipment.

Key parameters and features of ADAU1761BCPZ-R7 include:

- 24-bit stereo audio ADC and DAC with a dynamic range of 100 dB and 98 dB, respectively.

- Programmable SigmaDSP core with 50 MIPS performance.

- Multiple digital audio interfaces including I2S, TDM, and PDM.

- On-chip PLL for flexible clock generation.

- Low power consumption with multiple power saving modes.

For an application scenario, let's consider using ADAU1761BCPZ-R7 in a portable media player.

1. Power Supply Connection:

Connect a 1.8V power supply to pins 15 (DVDD) and 24 (AVDD), and connect pins 14 (DGND) and 23 (AGND) to the ground.

2. Audio Input Connection:

Connect the audio input signals to pins 4 (LINP) and 5 (LINN) for the left channel, and pins 8 (RINP) and 9 (RINN) for the right channel.

3. Audio Output Connection:

Connect pins 19 (LOUTP) and 20 (LOUTN) to the left speaker, and pins 21 (ROUTP) and 22 (ROUTN) to the right speaker.

4. Digital Audio Interface Connection:

If using a digital audio source, connect the I2S or TDM interface to pins 1 (BCLK), 2 (LRCLK), and 3 (SDATA).

5. Control Interface Connection:

Connect the I2C or SPI control interface to pins 10 (SCL/CSB), 11 (SDA/MOSI), and 12 (MISO) for programming and controlling the audio codec.

When designing the circuit, consider the following points:

1. Proper Decoupling:

Ensure that the power supply pins are properly decoupled using capacitors to filter out noise and provide a stable voltage supply to ADAU1761BCPZ-R7.

2. Audio Signal Conditioning:

Use audio amplifiers and filters to condition the audio input and output signals for improved audio quality.

3. Digital Audio Interface Compatibility:

Ensure compatibility between the digital audio interface of ADAU1761BCPZ-R7 and the audio source or sink devices.

4. Control Interface Compatibility:

Ensure compatibility between the control interface of ADAU1761BCPZ-R7 and the microcontroller or processor used to configure and control the audio codec.
