Name: ADA4610-2ARZ
Brand: Analog Devices Inc.
SKU: ADA4610-2ARZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADA4610-2ARZ

Part No.:: ADA4610-2ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: ADA4610-2ARZ.pdf

Description:: IC OPAMP JFET 2 CIRCUIT 8SOIC

In Stock:: 3500

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADA4610-2ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
AmplifierType:
J-FET
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
61V/µs
GainBandwidthProduct:
16.3 MHz
-3dbBandwidth:
9.5 MHz
Current-InputBias:
5 pA
Voltage-InputOffset:
400 µV
Current-Supply:
1.6mA (x2 Channels)
Current-Output/Channel:
79 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

ADA4610-2ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADA4610-2ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADA4610-2ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADA4610-2ARZ information

Views：

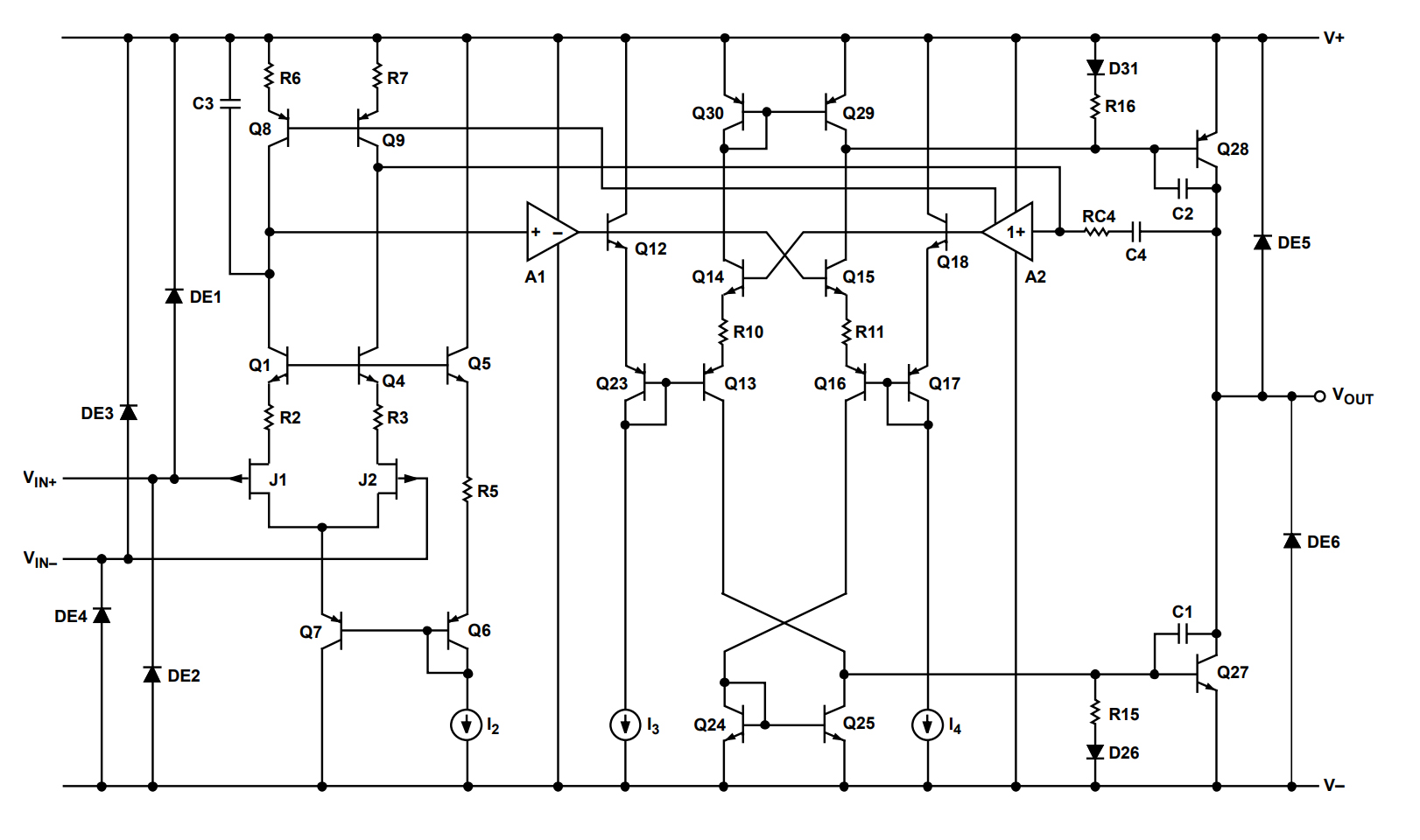

ADA4610-2ARZ Typical application Circuitry

ADA4610-2ARZ

The ADA4610-2ARZ is a dual operational amplifier with great performance and low noise. This integrated circuit (IC) is widely used in signal conditioning, filtering, and other applications where precise analog signal manipulation is required. In this guide, we will focus on the essential connections required for the ADA4610-2ARZ to operate correctly, highlighting the specific pin connections.

1. Power Supply Connections: Positive and negative power supply inputs are required for the ADA4610-2ARZ. Connect the V+ pin (usually labeled V+ or VCC) to a positive voltage source as recommended in the data sheet. Similarly, connect the V- pin (often marked V- or See) to a negative voltage source. Adding decoupling capacitors close to these pins is advisable for optimal performance and noise reduction.

2. Input Pins: The ADA4610-2ARZ features two operational amplifiers, each with two input pins - a non-inverting input (+IN) and an inverting input (-IN). Connect the +IN and -IN pins of each operational amplifier to the appropriate input signals in your circuit, following the recommended guidelines for input impedance matching and signal conditioning.

3. Output Pins: Each operational amplifier within the ADA4610-2ARZ has an output pin (OUT) that drives the amplified or conditioned signal to the subsequent stages of the circuit. Ensure that the output pins are connected to the correct destinations, considering load impedance and other factors affecting signal integrity.

4. Feedback Resistors: To control the gain of the operational amplifiers, connect feedback resistors between the output and the inverting input of each amplifier. Choose resistor values according to the desired gain and bandwidth specifications, and consider stability issues in your design.

5. Grounding: Proper grounding is crucial for optimal performance of the ADA4610-2ARZ. Connect the GND pin to the circuit's common ground, ensuring a stable and low-noise ground reference.

6. Compensation and Filtering: In some applications, the ADA4610-2ARZ may require additional compensation or filtering circuits to improve stability and performance. Consult the data sheet for recommendations on external components and their connection points to achieve the desired response.

7. Bypassing and Decoupling: To minimize the influence of power supply noise on the ADA4610-2ARZ's performance, connect bypass capacitors close to the power supply pins. Select capacitor values according to the data sheet's suggestions for effective noise reduction and improved stability.

8. Proper Layout Practices: The ADA4610-2ARZ benefits from proper PCB layout practices. Maintain short, low-inductance connections, avoid running sensitive analog traces close to noisy digital lines, and use a ground plane to reduce noise coupling.

In conclusion, the ADA4610-2ARZ is a versatile and high-performance dual operational amplifier that requires careful attention to connection details. By following this guide and consulting the data sheet, you can ensure the ADA4610-2ARZ operates optimally in your specific application.
