Analog Devices Inc. AD9268BCPZ-105

Part No.:: AD9268BCPZ-105

Manufacturer:: Analog Devices Inc.

Package:: 64-VFQFN Exposed Pad, CSP

Datasheet:

Description:: IC ADC 16BIT PIPELINED 64LFCSP

In Stock:: 2795

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9268BCPZ-105 Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
105M
Number of Inputs:
2
Input Type:
Differential
Data Interface:
LVDS - Parallel, Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
2
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
1.7V ~ 1.9V
Voltage-Supply Digital:
1.7V ~ 1.9V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

AD9268BCPZ-105 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9268BCPZ-105 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9268BCPZ-105 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9268BCPZ-105 information

Views：

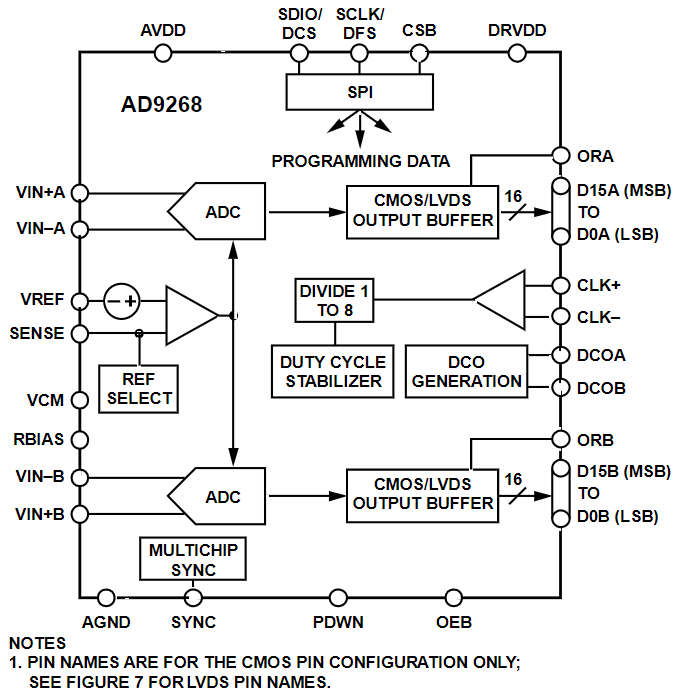

AD9268BCPZ-105 Typical application Circuitry

AD9268BCPZ-105

The AD9268BCPZ-105 is an integral member of the AD9268 series, a lineup of dual-channel, 16-bit, high-speed analog-to-digital converters (ADCs) engineered by Analog Devices. This series is acclaimed for its superior performance in digitizing high-frequency, wide dynamic range signals, which is paramount in applications such as wireless communications, radar systems, and medical imaging. The "BCPZ-105" designation specifies the package type and speed grade of the device, with this variant encapsulated in a 64-lead LFCSP (Lead Frame Chip Scale Package) and capable of achieving a sampling rate of up to 105 MSPS (Mega Samples Per Second), making it adept at handling rapid signal variations.

1. Overview of the AD9268BCPZ-105's Capabilities: This ADC exemplifies cutting-edge technology with its ability to offer high-speed, precise data conversion. Its dual-channel architecture allows for simultaneous sampling of two analog signals, enhancing system throughput and efficiency. The device's 16-bit resolution ensures that the digital representations of the analog inputs are accurate and detailed, capturing the nuances of the original signals.

2. Power Supply Considerations: The AD9268BCPZ-105 necessitates separate power supplies for its analog and digital sections. The AVDD pin supplies the analog circuitry, while the DVDD pin powers the digital interface. Typically, a 1.8V supply is recommended for both AVDD and DVDD to optimize performance and minimize power consumption. Ensuring clean and stable power to these pins is critical for achieving the high accuracy and low noise characteristics that the AD9268BCPZ-105 is capable of.

3. Analog Input Connections (AIN+ and AIN-): The device features differential analog input pairs (AIN+ and AIN-) for each channel, designed to support a wide range of input frequencies with minimized distortion and noise. These inputs are where the analog signals to be converted are applied. Proper impedance matching and signal conditioning, such as filtering, may be necessary to maximize the signal integrity before conversion.

4. Clock Input (CLK+ and CLK-): The performance of the AD9268BCPZ-105 is heavily influenced by the quality of the clock signal supplied to the CLK+ and CLK- pins. This differential clock input dictates the timing of the analog-to-digital conversion process. Utilizing a low-jitter, high-stability clock source is crucial for maximizing the ADC's performance, affecting both the accuracy of the conversion and the overall system reliability.

5. Output Data Interface: The digitized data from the AD9268BCPZ-105 is output through LVDS (Low Voltage Differential Signaling) pairs. This high-speed digital interface minimizes signal degradation over transmission and is compatible with a wide range of digital processing units, such as DSPs (Digital Signal Processors) and FPGAs (Field-Programmable Gate Arrays). Careful layout and impedance matching are required to preserve signal integrity across the digital interface.

6. Reference Voltage (REFIO): The accuracy of the AD9268BCPZ-105's conversions is also dependent on the stability and precision of the reference voltage applied to the REFIO pin. This voltage defines the full-scale range of the analog input signal. Using a low-noise, precise reference source is imperative for achieving the specified performance levels of the ADC.

7. Grounding and Decoupling: Proper grounding is essential for the AD9268BCPZ-105, with separate ground pins provided for the analog and digital sections (AGND and DGND, respectively) to minimize cross-talk and interference. Decoupling capacitors should be strategically placed close to the power supply pins to filter out noise and provide a stable operating environment for the ADC.

8. Thermal Management: Given the AD9268BCPZ-105's high-speed operation and compact package, managing the thermal load is vital. Implementing adequate thermal management techniques, such as heat sinks or airflow over the device, can prevent overheating and ensure the ADC operates within its specified temperature range.

Incorporating the AD9268BCPZ-105 into a design requires a comprehensive approach that considers power supply integrity, signal conditioning, precise clocking, and effective thermal management. By meticulously addressing these aspects, the AD9268BCPZ-105 can significantly enhance the performance of systems requiring high-speed, accurate analog-to-digital conversion, reinforcing its status as a pivotal component in advanced electronic systems.
