Analog Devices Inc. AD9266BCPZ-20

Part No.:: AD9266BCPZ-20

Manufacturer:: Analog Devices Inc.

Package:: 32-WFQFN Exposed Pad, CSP

Datasheet:: AD9266BCPZ-20.pdf

Description:: IC ADC 16BIT PIPELINED 32LFCSP

In Stock:: 3180

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9266BCPZ-20 Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
20M
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
1.7V ~ 1.9V
Voltage-Supply Digital:
1.7V ~ 3.6V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD9266BCPZ-20 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9266BCPZ-20 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9266BCPZ-20 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9266BCPZ-20 information

Views：

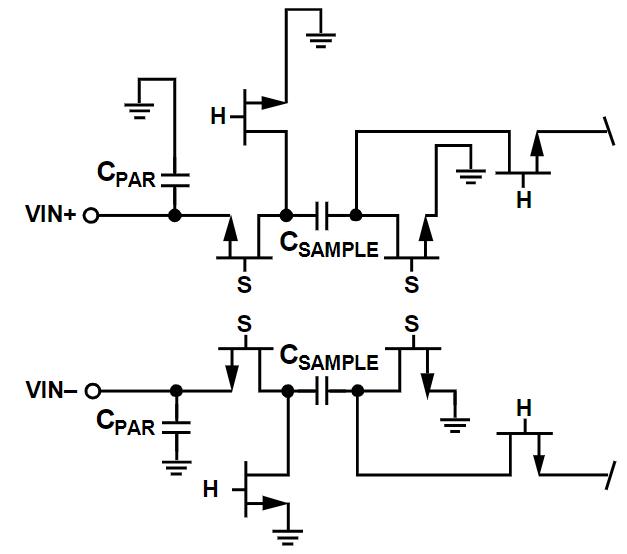

AD9266BCPZ-20 Typical application Circuitry

AD9266BCPZ-20

The AD9266BCPZ-20 is a 16-bit, 20 MSPS, Analog-to-Digital Converter (ADC) from Analog Devices, offering an excellent balance of performance, power consumption, and cost for diverse applications.

1. High Resolution: As a 16-bit ADC, the AD9266BCPZ-20 provides high resolution, enabling precision measurement applications. The high resolution is particularly useful in demanding areas like medical imaging, radar systems, and digital oscilloscopes.

2. Low Power: With a power consumption of just 51 mW at 20 MSPS, the AD9266BCPZ-20 is an excellent choice for power-constrained designs, such as battery-powered systems and portable devices.

3. Wide Analog Input Bandwidth: The ADC operates with an analog input bandwidth of 650 MHz, which allows for the capture of signals well beyond the Nyquist frequency. This makes it a valuable component in applications like under sampling or direct RF sampling architectures.

4. High Speed: With a maximum sampling rate of 20 MSPS, the AD9266BCPZ-20 is well-suited for high-speed signal processing applications. The high-speed performance facilitates real-time data acquisition, crucial in applications like radar, software-defined radio, and high-speed instrumentation.

5. Flexible Power-Supply Compatibility: The AD9266BCPZ-20 uses a 1.8 V supply to run, and it includes a separate digital output driver supply that can support logic families ranging from 1.8 V to 3.3 V. This flexibility simplifies power-supply planning and makes the ADC compatible with a wide range of digital processors.

6. Noise Performance: The ADC delivers excellent noise performance, a key factor in achieving the high dynamic range necessary for many signal processing applications.

7. Built-in Features: The AD9266BCPZ-20 incorporates several additional features such as a duty cycle stabilizer and a programmable voltage reference. These built-in capabilities help streamline design, lower the number of external components, and improve functionality.

8. Packaging: Provided in compact LFCSP packaging, the AD9266BCPZ-20 helps conserve valuable board space in compact applications.

As always, it's recommended to refer to the datasheet, user guides, and application notes provided by the manufacturer when planning and designing an application circuit using the AD9266BCPZ-20.
