Analog Devices Inc. AD9253BCPZ-105

Part No.:: AD9253BCPZ-105

Manufacturer:: Analog Devices Inc.

Package:: 48-WFQFN Exposed Pad, CSP

Datasheet:: AD9253BCPZ-105.pdf

Description:: IC ADC 14BIT PIPELINED 48LFCSP

In Stock:: 140

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9253BCPZ-105 Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
14
Sampling Rate(PerSecond):
105M
Number of Inputs:
4
Input Type:
Differential
Data Interface:
LVDS - Serial
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
4
Architecture:
Pipelined
Reference Type:
Internal
Voltage-Supply Analog:
1.7V ~ 1.9V
Voltage-Supply Digital:
1.7V ~ 1.9V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

AD9253BCPZ-105 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9253BCPZ-105 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9253BCPZ-105 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9253BCPZ-105 information

Views：

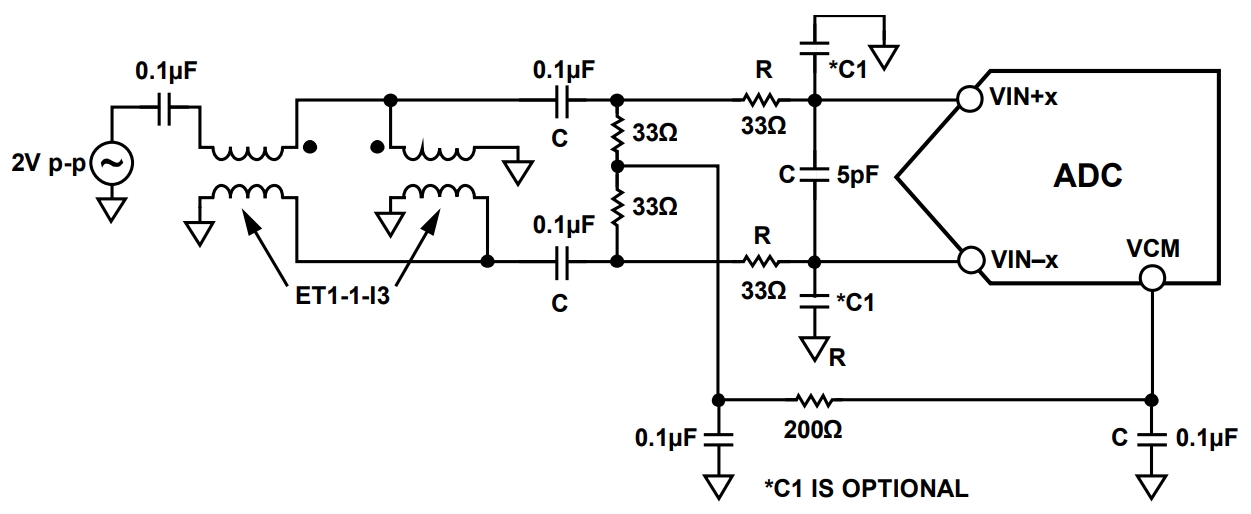

AD9253BCPZ-105 Typical application Circuitry

AD9253BCPZ-105

AD9253BCPZ-105 is a 14-bit, 105 MSPS (Million Samples Per Second) analog-to-digital converter (ADC) designed by Analog Devices. This chip is designed for applications such as medical imaging, communications, and industrial instrumentation.

Application scenarios for the AD9253BCPZ-105 include:

- Medical Imaging

- Communications equipment

- Industrial instrumentation

Key Specifications of AD9253BCPZ-105 include:

- 14-bit resolution

- 105 MSPS sampling rate

- Low power consumption

- Differential input range

Now let's look at a specific application scenario and see how the AD9253BCPZ-105 can be integrated into a circuit. Scenario:System of Medical Imaging The AD9253BCPZ-105 can be used in a medical imaging system to transform analog sensor signals into digital data that an FPGA or microcontroller can process.

Circuit Connection Steps:

1. Power Supply Connection

- Connect VDD to a +1.8V power supply.

- Attach GND to the system's ground.

2. Input Signal Connection

- Connect the analog input signal to the AIN+ and AIN- pins.

3. Clock Connection

- Connect an external clock source to the CLK+ and CLK- pins.

4. Output Connection

- Connect the DCO+ and DCO- pins to the input pins of the microcontroller or FPGA.

5. Control Signal Connection

- Connect the CSB, SDIO, and SCLK pins to the corresponding pins on the microcontroller or FPGA for configuration and control of the ADC.

Design Considerations:

When creating a circuit with the AD9253BCPZ-105, it's crucial to take the following into account:

1. Power Supply Quality: The performance of the ADC can be strongly impacted by the quality of the power supply. It is advised to make use of a solid and clean power source.

2. Clock Source Quality: The quality of the clock source is also important as it affects the sampling accuracy of the ADC. Using a reliable and accurate clock source is advised.

3. Input Signal Conditioning: The input signal needs to be adjusted so that it fits inside the ADC's input range. This may include filtering and amplification of the signal.

4. PCB Layout: The PCB layout can also affect the performance of the ADC. Reducing the length of the traces and preventing interference from other board components are crucial.

In conclusion, the AD9253BCPZ-105 is a versatile ADC that can be used in various applications, including medical imaging systems. When designing a circuit with the AD9253BCPZ-105, it is important to consider the power supply quality, clock source quality, input signal conditioning, and PCB layout to ensure optimal performance.
