Name: AD9245BCPZ-40
Brand: Analog Devices Inc.
SKU: AD9245BCPZ-40
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9245BCPZ-40

Part No.:: AD9245BCPZ-40

Manufacturer:: Analog Devices Inc.

Package:: 32-WFQFN Exposed Pad, CSP

Datasheet:: AD9245BCPZ-40.pdf

Description:: IC ADC 14BIT PIPELINED 32LFCSP

In Stock:: 2000

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9245BCPZ-40 Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
14
Sampling Rate(PerSecond):
40M
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 3.6V
Voltage-Supply Digital:
2.25V ~ 3.6V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD9245BCPZ-40 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9245BCPZ-40 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9245BCPZ-40 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9245BCPZ-40 information

Views：

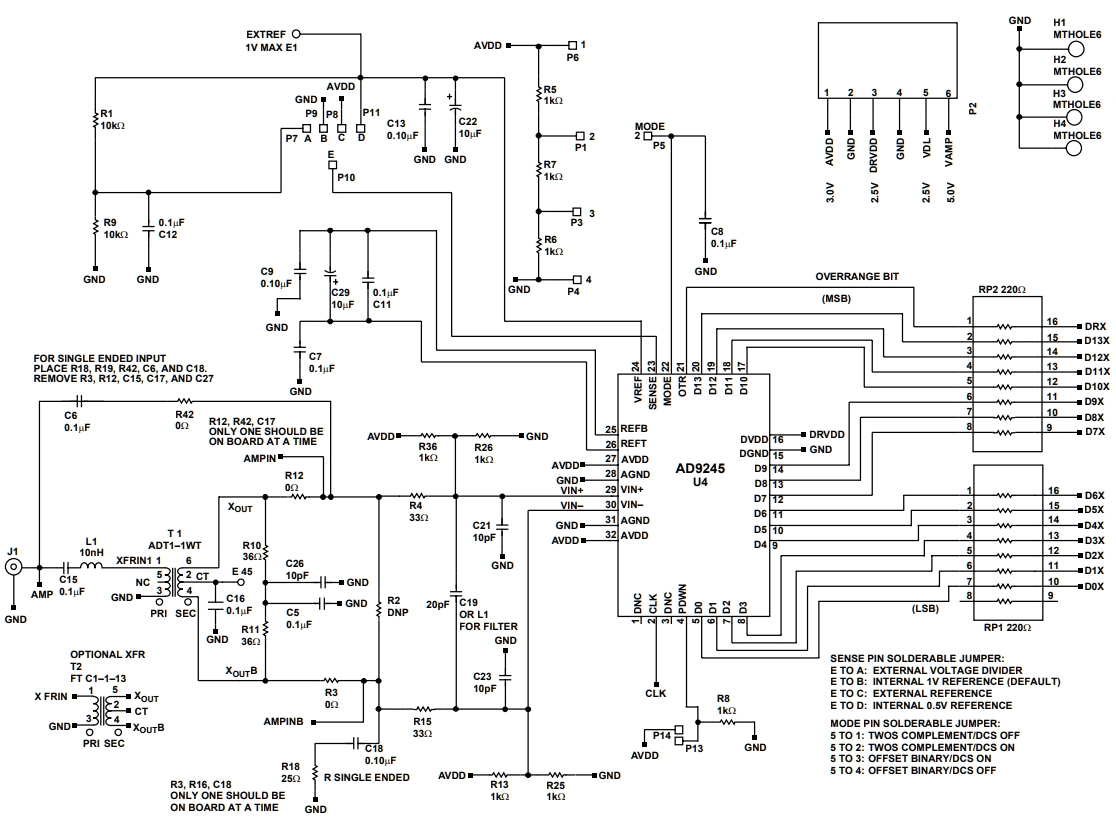

AD9245BCPZ-40 Typical application Circuitry

AD9245BCPZ-40

A 14-bit Analog-to-Digital Converter (ADC) having a maximum sampling rate of 40 MSPS (Million Samples Per Second) is the AD9245BCPZ-40. It's part of the Analog Devices, Inc. portfolio and is used for converting analog signals into digital form. Applications in communications, industrial instrumentation, and medical imaging are perfect for this ADC.

Key features and specifications of AD9245BCPZ-40 include:

- Resolution: 14-bit

- Maximum Sampling Rate: 40 MSPS

- Analog Input Bandwidth: 550 MHz

- Input Range: 2 Vp-p differential

- Power Consumption: 650 mW

- Power Supply: 3.3 V for the core, and 5 V for the input/output (I/O)

- Package: 64-lead LFCSP (Lead Frame Chip Scale Package)

Let's explore an application scenario where AD9245BCPZ-40 is used in a communication system to convert analog signals from a radio frequency (RF) receiver into digital form for further processing.

Circuit Connection:

1. Power Supply Connections:

- Connect the AD9245BCPZ-40 AVDD and DVDD pins to a 3.3 V supply.

- Connect the AD9245BCPZ-40 DRVDD pin to a 5 V supply.

- Attach the pins for DGND and AGND to the ground.

2. Analog Input Connections:

- Connect the RF receiver's output to the AIN+ and AIN- pins.

3. Clock Source:

- Connect the CLKIN pin to a clock source operating at 40 MHz.

4. Digital Output:

- Connect the D0 to D13 pins to the digital input pins of a processing unit such as a DSP or FPGA.

5. Control Signals:

- Connect the OR (Out of Range) pin to an LED or another indicator to show if the input signal is out of range.

Design Considerations:

When creating a circuit using AD9245BCPZ-40, the following elements need to be taken into account:

1. Power Supply Stability: Make that the power source is reliable and falls within the allowed range.

2. Input Signal Range: Make sure that the RF receiver's output is within the ADC's input range to avoid clipping.

3. Clock Jitter: Minimize clock jitter to ensure accurate sampling.

4. Data Integrity: Implement proper data handling protocols to ensure data integrity during transmission.

5. Thermal Management: Utilize suitable thermal control strategies to keep the gadget from overheating while it's working.
