Analog Devices Inc. AD9240ASZRL

Part No.:: AD9240ASZRL

Manufacturer:: Analog Devices Inc.

Package:: 44-QFP

Datasheet:: AD9240ASZRL.pdf

Description:: IC ADC 14BIT PIPELINED 44MQFP

In Stock:: 2507

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9240ASZRL Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
14
Sampling Rate(PerSecond):
10M
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-55°C ~ 85°C

AD9240ASZRL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9240ASZRL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9240ASZRL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9240ASZRL information

Views：

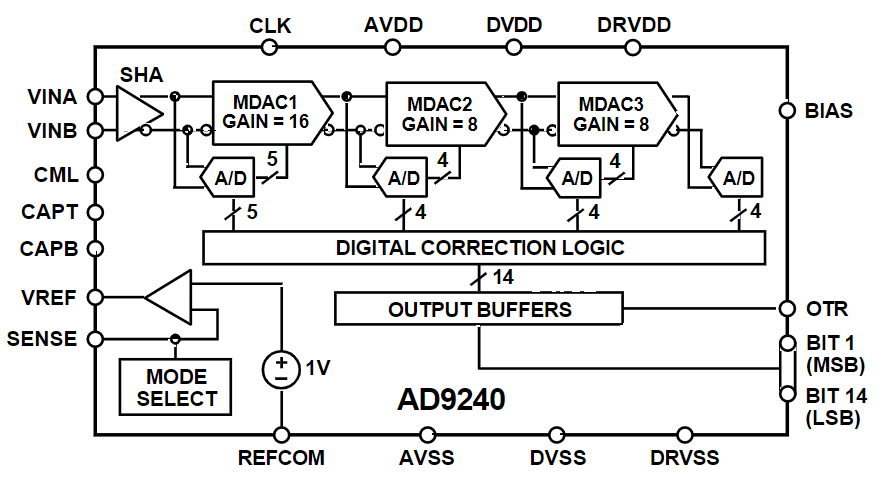

AD9240ASZRL Typical application Circuitry

AD9240ASZRL

The AD9240ASZRL is a crucial member of Analog Devices' AD9240 series, embodying a class of high-performance analog-to-digital converters (ADCs) that bridge the analog and digital worlds by meticulously converting analog signals into digital data. This series is integral for precision-driven applications such as telecommunications, radar systems, and sophisticated signal processing tasks, where accurate digitization of analog inputs is paramount. The "ASZRL" designation indicates a specific packaging and product configuration within the AD9240 lineup, optimized for robustness and longevity in diverse operational environments.

1. Core Features of AD9240ASZRL: This variant stands as a testament to precision engineering, offering a 14-bit resolution which facilitates the detailed and accurate representation of analog signals in digital form. The capacity to sample at high rates while maintaining integrity and precision exemplifies the AD9240ASZRL's suitability for critical applications where data accuracy is non-negotiable.

2. Power Supply Connections: The AD9240ASZRL demands a meticulous approach to power supply management, necessitating a stable and clean source of power to maintain its precision. Typically, a 5V supply is employed to energize its analog circuits. The implementation of decoupling capacitors directly at the power supply pins is a critical practice, ensuring the reduction of noise and potential interference that could compromise the ADC's performance.

3. Analog Input Handling (AIN): For the AD9240ASZRL, managing the analog input involves acknowledging its differential input nature. This configuration enhances the ADC's ability to suppress common-mode noise, thus elevating the quality of signal conversion. Designers must ensure that the analog signal's characteristics, including amplitude and impedance, align with the ADC's specifications to optimize performance. Signal conditioning elements, such as filters and buffers, are often necessary to prepare the signal for digitization adequately.

4. Reference Voltage (VREF) Considerations: The precision of the AD9240ASZRL's analog-to-digital conversion is significantly influenced by the stability of its reference voltage. This voltage determines the scale against which the analog input is measured, underscoring the need for a precise and stable VREF to achieve accurate digital outputs.

5. Clock Input Dynamics (CLK): The clock input serves as the heartbeat of the AD9240ASZRL's conversion process, timing each sampling event with precision. The cleanliness of this clock signal is paramount, as any instability can directly affect the ADC's accuracy. Ensuring a stable and low-jitter clock source is vital for maintaining the fidelity of the conversion process.

6. Digital Output Interface: Following the conversion process, the AD9240ASZRL communicates the digitized data via a parallel output interface. This interface comprises several pins, each representing a bit of the digital output. Maintaining signal integrity across these pins is crucial for the accurate transmission of data to downstream digital processors or storage elements.

7. Grounding Scheme: Effective grounding strategies are imperative for minimizing noise and ensuring the AD9240ASZRL's optimal performance. Implementing separate ground paths for the analog and digital sections can significantly reduce the noise coupling between them. The design of ground planes and the strategic routing of ground connections are vital for preserving signal integrity.

8. Bypassing and Decoupling Strategies: The role of decoupling and bypass capacitors cannot be overstated in the context of the AD9240ASZRL. Positioned close to the power supply pins, these capacitors play a crucial role in stabilizing the supply voltage and mitigating noise, thereby supporting the ADC in delivering high-accuracy digital representations of the analog world.

In summary, effectively incorporating the AD9240ASZRL into electronic systems necessitates a holistic approach that encompasses careful power management, precise clocking, adept signal conditioning, and rigorous attention to grounding and decoupling practices. By adhering to these principles, designers can harness the full potential of the AD9240ASZRL, enabling the accurate and efficient conversion of analog signals into digital data, thus advancing the capabilities of modern electronic systems.
