Analog Devices Inc. AD9240ASZ

Part No.:: AD9240ASZ

Manufacturer:: Analog Devices Inc.

Package:: 44-QFP

Datasheet:: AD9240ASZ.pdf

Description:: IC ADC 14BIT PIPELINED 44MQFP

In Stock:: 232

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9240ASZ Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
14
Sampling Rate(PerSecond):
10M
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-55°C ~ 85°C

AD9240ASZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9240ASZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9240ASZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9240ASZ information

Views：

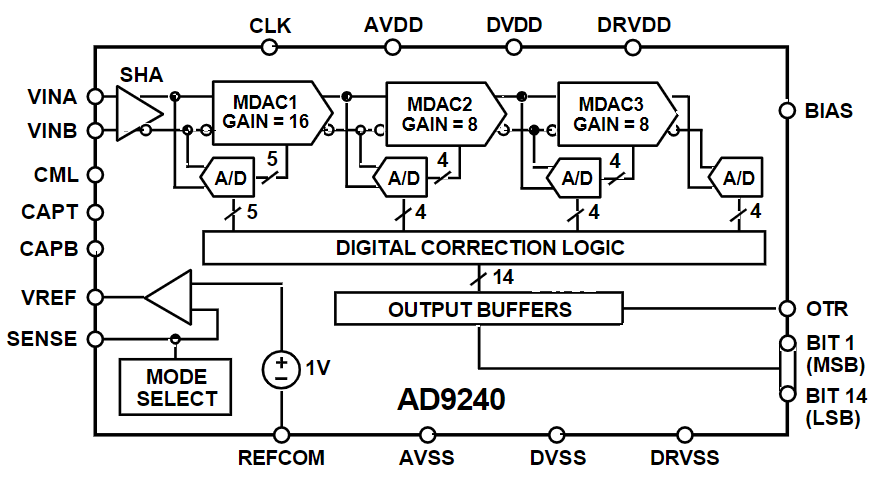

AD9240ASZ Typical application Circuitry

AD9240ASZ

The AD9240ASZ is a distinguished element of the AD9240 family, developed by Analog Devices, representing a line of integrated circuits that excel in analog-to-digital conversion. This family is celebrated for its proficiency in transforming analog signals into their digital counterparts with high fidelity, which is essential for applications requiring precise signal processing, such as medical imaging, digital communication systems, and instrumentation. The "ASZ" suffix denotes that this model comes in a specific package type, tailored for seamless integration into various circuit designs.

1. Introduction to AD9240ASZ's Functionality: The AD9240ASZ stands out for its adeptness in delivering accurate digital representations of analog inputs. This 14-bit analog-to-digital converter (ADC) operates at a sampling rate that ensures a balance between speed and resolution, making it an optimal choice for systems that demand rapid data acquisition without compromising on quality.

2. Power Supply Configuration: For optimal performance, the AD9240ASZ requires a well-regulated power supply. It typically operates with a single 5V supply, which powers the analog circuitry inside the ADC. This necessitates a stable and noise-free power source to prevent any adverse effects on the conversion accuracy. Implementing decoupling capacitors near the power supply pins is crucial to filter out potential noise.

3. Analog Input (AIN): The AD9240ASZ is designed with a differential analog input, allowing for enhanced noise immunity and signal integrity. This setup requires careful consideration of the input signal's amplitude and impedance to match the ADC's specifications for optimal performance. Signal conditioning, such as buffering and filtering, may be required to prepare the analog signal for conversion.

4. Reference Voltage (VREF): The accuracy of the AD9240ASZ's conversions significantly depends on the stability and precision of the reference voltage. This voltage sets the scale for the analog input range. A precise and stable VREF is essential for achieving the desired accuracy in the digital output.

5. Clock Input (CLK): The AD9240ASZ utilizes an external clock source to time the conversion process. The quality of this clock signal is paramount, as jitter and instability can directly impact the ADC's performance. A clean, stable clock ensures that the sampling process is consistent, thereby enhancing the integrity of the digital output.

6. Digital Output Interface: Upon conversion, the AD9240ASZ outputs the digital data through a parallel interface. This interface consists of multiple pins representing each bit of the digital output. The integrity of these signals is vital for accurate data transfer to subsequent digital processing units. Employing short, impedance-matched traces can mitigate signal degradation.

7. Grounding Practices: Effective grounding practices are critical for the AD9240ASZ to minimize noise and ensure accurate conversions. Separate grounding for analog and digital sections within the system can help reduce noise coupling. Strategic placement of ground planes and careful routing of ground connections are essential to maintain signal integrity.

8. Decoupling and Bypassing: To maintain stable voltage levels and suppress noise on the power supply lines, the AD9240ASZ benefits from the use of decoupling and bypass capacitors placed as close to the power pins as possible. These components are instrumental in providing a clean power supply, which is a prerequisite for achieving high-accuracy ADC performance.

Incorporating the AD9240ASZ into a design framework demands a comprehensive approach that prioritizes clean power supplies, precise clocking mechanisms, and robust signal conditioning. By meticulously addressing these considerations, designers can leverage the AD9240ASZ's capabilities to the fullest, ensuring high-fidelity analog-to-digital conversion that meets the rigorous demands of advanced electronic systems. This ADC's integration into a circuit not only enhances the system's performance but also underscores the importance of precision in modern electronic applications.
