What is the Additional Feature ?

Name: AD9211BCPZ-300
Brand: Analog Devices Inc.
SKU: AD9211BCPZ-300
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9211BCPZ-300

Part No.:: AD9211BCPZ-300

Manufacturer:: Analog Devices Inc.

Package:: 56-VFQFN Exposed Pad, CSP

Datasheet:: AD9211BCPZ-300.pdf

Description:: IC ADC 10BIT PIPELINED 56LFCSP

In Stock:: 3162

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9211BCPZ-300 Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
10
Sampling Rate(PerSecond):
300M
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
LVDS - Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
Internal
Voltage-Supply Analog:
1.7V ~ 1.9V
Voltage-Supply Digital:
1.7V ~ 1.9V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

AD9211BCPZ-300 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9211BCPZ-300 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9211BCPZ-300 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9211BCPZ-300 information

Views：

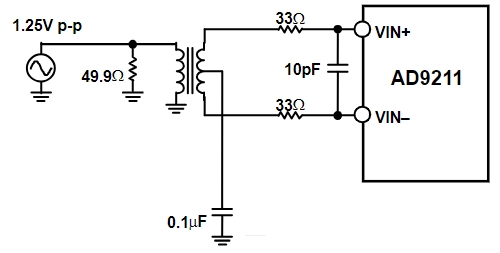

AD9211BCPZ-300 Typical application Circuitry

AD9211BCPZ-300

The AD9211BCPZ-300 is a state-of-the-art, single-channel, 10-bit analog-to-digital converter (ADC) that excels in applications requiring fast and accurate data conversion. It is designed to handle high-speed signal processing tasks in environments such as communication systems, radar systems, and test equipment.

Key Specifications:

- Resolution: 10-bit, offering fine detail in the conversion process for precise signal representation.

- Maximum Sample Rate: Capable of reaching up to 300 MSPS (Mega Samples Per Second), making it ideal for high-speed applications.

- Input Voltage Range: Features a configurable input voltage range to accommodate a variety of signal amplitudes.

Application Scenario: Digital Oscilloscope for Signal Analysis:

In a digital oscilloscope, the AD9211BCPZ-300 is utilized to convert analog signals captured from electronic circuits into digital form for detailed analysis and display.

Circuit Connection Details:

1. Stable Power Supply: Provide +1.8V power to the AVDD and DVDD pins to energize the analog and digital circuits within the AD9211BCPZ-300.

2. Signal Input: Connect the analog signal that requires analysis to the VIN+ and VIN- pins, ensuring compatibility with the ADC's input voltage range.

3. Clock Input: Deliver a precise clock signal to the CLK+ and CLK- pins, which governs the sampling rate and directly impacts the temporal resolution of the digital oscilloscope.

4. Retrieving Digital Data: Interface the D0-D9 output pins to the processing unit of the oscilloscope, which interprets the digital code into a waveform for analysis.

5. Device Configuration: Leverage the SPI interface (incorporating SDI, SCLK, CSB, SDO pins) for internal setup of the AD9211BCPZ-300, adjusting parameters like the input voltage range and output data format as necessary.

Design Considerations:

- Maintaining Signal Fidelity: It is crucial to preserve the integrity of the analog input and clock signals, minimizing noise intrusion through careful layout and shielding.

- Ensuring Power Integrity: Decoupling capacitors should be strategically placed close to the power supply pins to reduce noise and provide a stable operating environment for the AD9211BCPZ-300.

- Effective Heat Dissipation: Given the rapid data processing and high sampling rates, adequate cooling measures must be in place to mitigate thermal accumulation in the device.

In conclusion, the AD9211BCPZ-300 is an essential component in the design of a digital oscilloscope, offering high-speed and accurate analog-to-digital conversion capabilities. Addressing considerations such as signal fidelity, power integrity, and thermal management is imperative to harness the full potential of the AD9211BCPZ-300 in capturing and analyzing electronic signals.
